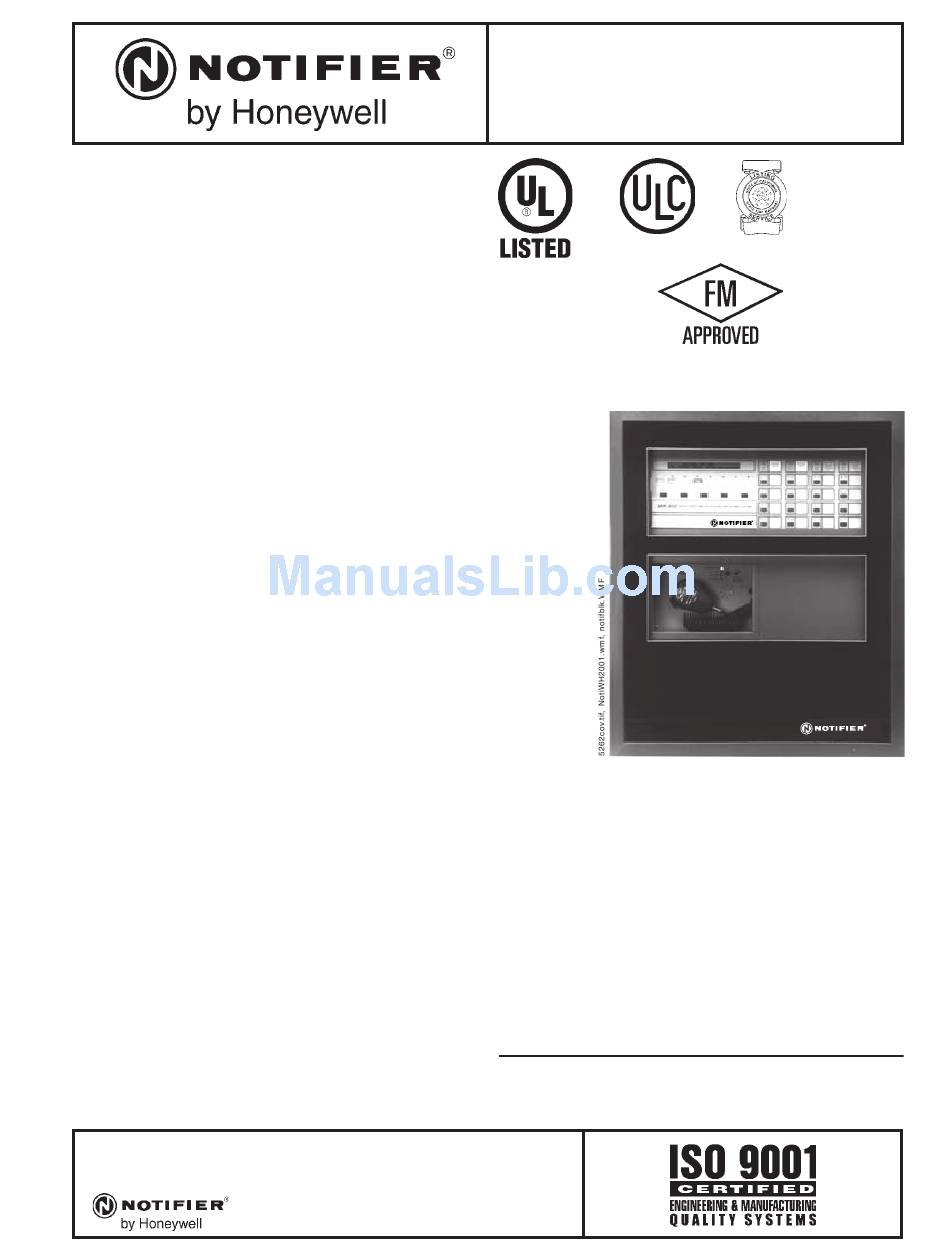

GENERAL
The AFP-300 and AFP-400 are compact, cost-effective, in-
telligent fire alarm control panels with a total capacity of
up to 563 points and an extensive list of powerful features.
The AFP-300/400 integrates conventional output circuits,
such as notification, telephone, and speakers, with the in-
telligent features of one or two signaling line circuits (SLC)
and 198 or 396 intelligent/addressable points.
FEATURES
• One loop (AFP-300) or two loops (AFP-400) Style 4, 6 or 7.
• 198 intelligent devices per loop (99 intelligent detec-
tors and 99 intelligent modules).
• 396 intelligent device capacity on the AFP-400; 198 on
the AFP-300.
• VIEW®, HARSH™, Advanced Multi-Sensor (AMS) op-
tions.
• Up to 68 internal circuits/relays, plus 99 programmable
zone output relays for a total capacity of 563 points.
• Four integral Notification Appliance (signal) Circuits
(NACs), Style Z or Y (Class A or B).
• 6.0 A power supply, plus 6.0 A expanders.
• NACs may be programmed for Steady, March Time,
Temporal, California code, or Canadian Two-Stage.
• Modified California code, pulsed on time.
• Tornado Warning activates different Notification Appli-
ance Circuit code.
• Alarm, Trouble, Supervisory, and Security relays, stan-
dard.
• Peer-to-peer network-ready.
• Intelligent features:

Manual sensitivity adjustment — 9 levels.

Pre-alarm intelligent sensing — 9 levels.

Day/Night automatic sensitivity adjustment.

Drift compensation.

Multi-detector algorithm involves nearby detectors
in alarm decision.

Auto detector test (meets NFPA 72).

Maintenance alert (two levels).

Self-optimizing pre-alarm adjusts pre-alarm level to
environment automatically.

Activate local sounder base on pre-alarm.

LED blink control for sleeping areas.

Automatic device type check.

Trouble after 20 detector verifications.
• Releasing features:

Ten independent hazards.

Sophisticated cross-zone (three options).

Delay timer and Discharge timers (adjustable).

Abort (four options).
This document is not intended to be used for installation purposes. We try to keep our
product information up-to-date and accurate. We cannot cover all specific applications or
anticipate all requirements. All specifications are subject to change without notice.
For more information, contact NOTIFIER. Phone: (203) 484-7161 FAX: (203) 484-7118
12 Clintonville Road, Northford, Connecticut 06472
October 31, 2005
AFP-300 AFP AFP -300 -300 -300
AFP AFP -300
and and
and and and
Analog Fire P Analog Fire Panels Analog Fire P Analog Fire P Analog Fire P
Section: Intelligent Fire Alarm Control Panels
CS118/733
S635
MEA
17-96-E
(AFP-400)
17-96-E Vol. II
(AFP-300)
City of
DENVER
(AFP-400)
• Sensitivity windows:

ION — 0.5 to 2.5%/foot obscuration.

PHOTO — 0.5 to 2.35%/foot obscuration.

MULTI-SENSOR — 0.71 to 4.0%/foot obscuration.

VIEW® — 0.03 to 1.0%/foot obscuration.
• Low-pressure CO support:
2

Expanded soak timer – 0 to 9999 seconds.

Manual release delay (10 seconds) type ID.

"Second shot" monitor module type ID.

Triple-coded notification circuit type ID.
• Voice and telephone features:

Solid state message generation.

Hard-wired voice control module options (single-
address mode modules).
HARSH™ and NOTI•FIRE•NET™ are trademarks; VeriFire ®,
VIEW® and NOTIFIER® are registered trademarks of Honeywell
International Inc. Microsoft® and Windows® are registered
trademarks of the Microsoft Corporation.
DN-5262 • A-103
AFP AFP-400 AFP -400 -400 -400
AFP AFP -400
anels anels anels anels
California
State Fire
Marshal
7170-0028:182
7165-0028:181
City of
Chicago
CLASS 1: 1291E
CLASS 2: 1729E
DN-5262 • 10/31/05 — Page 1 of 10
