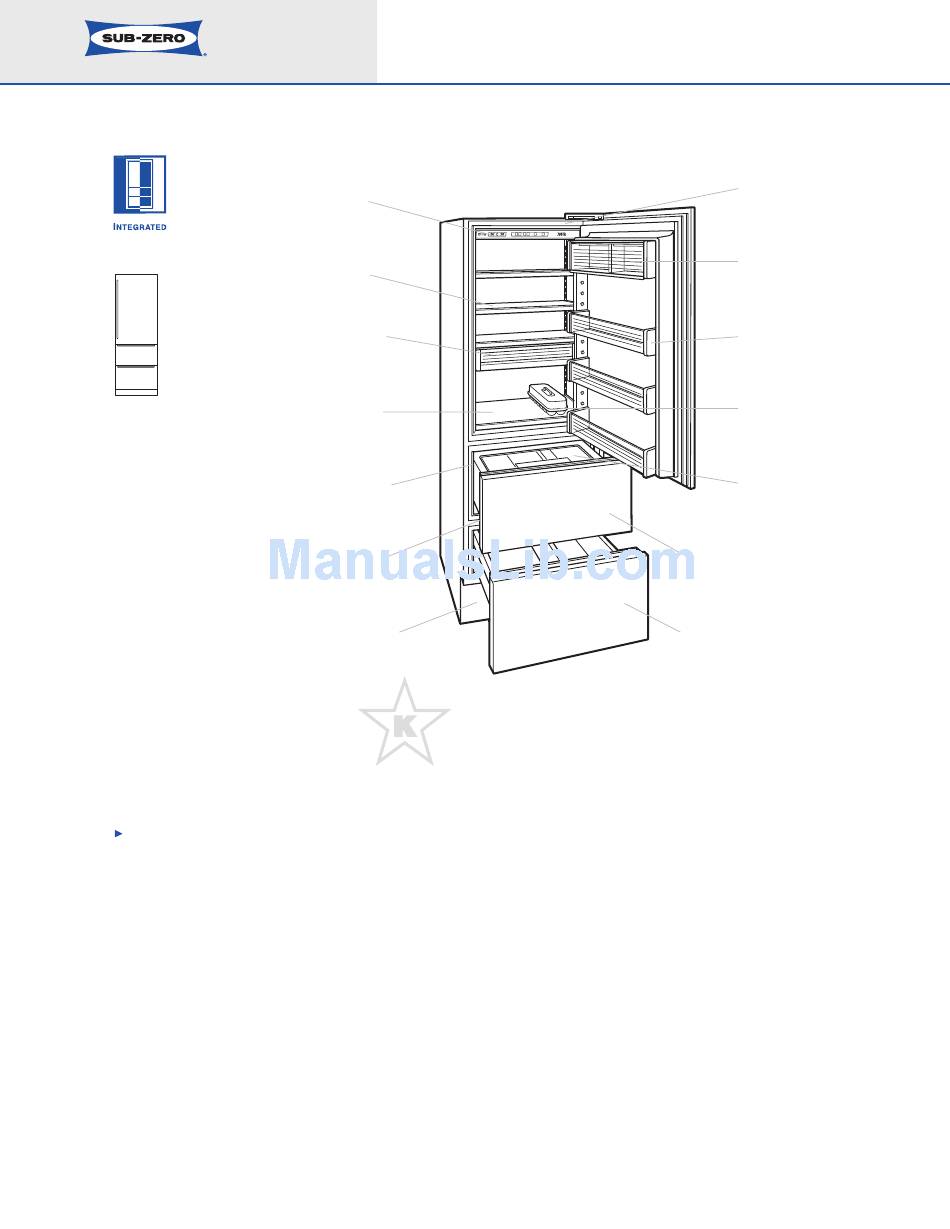

Planning Information
Integrated Model 700TR
All Refrigerator
Electronic digital
control panel
Adjustable spill-proof
glass shelves
Adjustable glass
shelf and deli drawer
Stationary shelf
Model 700TR
Location of serial
number
Magnetic door /
drawer gaskets
Front venting with
removable kickplate
The Sub-Zero Model 700TR integrated
design accepts custom wood or stainless
steel door and drawer panels. Stainless
steel panels and handles are available as
sales accessories in three finishes—
classic, platinum and carbon.
Dimensions in parentheses are in
millimeters unless otherwise specified.
11/06
With the installation of a harness kit, these appliances are Star-K
compliant to meet strict religious regulations in conjunction with
specific instructions found on star-k.org. You may purchase this
harness kit through your Sub-Zero dealer. To obtain local dealer
information, visit the Locator section of our website, subzero.com.
W
ho says bigger is better? In this instance a 27"
(686) wide by 80" (2032) high refrigerator is perfect.
At 15.5 cu ft (439 L) of storage, you have plenty of
space for most households and when coupled with a
Model 700TF or 700TFI you have a 54" (1372) wide
refrigerator / freezer combination.
With this model, you can adjust the door cabinet
temperature independent of the two drawer environ-
ment. The range for both compartments is 34˚F (1˚C)
to 45˚F (7˚C).
The door swing must be specified when ordering this
unit.
Seamless
molding
Adjustable dairy
compartment
Adjustable door
shelves
Egg container
Removable
crisper cover
Upper refrigerator
storage drawer
Lower refrigerator
storage drawer
1
Advertisement
Related Manuals for Sub-Zero Sub-Zero 700TR
Summary of Contents for Sub-Zero Sub-Zero 700TR
- Page 1 Locator section of our website, subzero.com. ho says bigger is better? In this instance a 27" (686) wide by 80" (2032) high refrigerator is perfect. At 15.5 cu ft (439 L) of storage, you have plenty of space for most households and when coupled with a Model 700TF or 700TFI you have a 54"...
- Page 2 Planning Information Integrated Model 700TR F E A T U R E S Tall refrigerator unit with upper cabinet refrigerator and refrigerator storage drawers Integrated design for "point-of-use" refriger- ation Dual refrigeration system with two distinct temperature zones ensures the freshest food...
- Page 3 Planning Information Integrated Model 700TR M O D E L Tall Refrigerator Unit 700TR P A N E L O P T I O N S Integrated (custom panels) Classic Stainless Steel Finish Platinum Stainless Steel Finish Carbon Stainless Steel Finish...
-
Page 4: Top View
Planning Information Integrated Model 700TR I N S T A L L A T I O N S P E C I F I C A T I O N S *PLACEMENT OF THE ANTI-TIP BRACKET SHOULD BE 24" (610) FROM THE FRONT OF THE UNIT WITHOUT PANELS TO THE BACK OF THE... - Page 5 Planning Information Integrated Model 700TR I N S T A L L A T I O N N O T E S Refer to the illustrations and specifications for overall dimensions, finished rough opening dimensions and installation specifics. IMPORTANT NOTE: The depth of Model 700TR is 24"...
- Page 6 Planning Information Integrated Model 700TR As the reveal between cabinets and the Integrated unit decreases, the potential exists for severe finger pinching or crushing if a hand or fingers are placed in the opening when the door is closing. Dimensions in parentheses are in millimeters unless otherwise specified.
- Page 7 Planning Information Integrated Model 700TR F R A M E D C A B I N E T R Y SUB-ZERO (610) UNIT TO WALL CABINET FRAME CABINET PANEL " (3) DOOR REVEAL (686) Traditional Frame – full overlay (top view). SUB-ZERO (610) UNIT...
- Page 8 Planning Information Integrated Model 700TR F R A M E D C A B I N E T R Y – B E A D E D I N S E T A P P L I C A T I O N 24"...
- Page 9 Planning Information Integrated Model 700TR F R A M E L E S S C A B I N E T R Y "* (679) PANEL WIDTH " (1153) " (345) (876) "* (424) 4"* (102) 27" (686) TOE KICK FINISHED OPENING A) ALL REVEALS ARE 1/8"...
- Page 10 Planning Information Integrated Model 700TR P A N E L C O N S I D E R A T I O N S The illustrations below provide panel width dimensions for installation of a 27" (686) wide tall unit and for installing two 27"...
- Page 11 Planning Information Integrated Model 700TR CABINETS (635) (686) TOP VIEW Installation without side panels. CABINETS (635) (686) MINIMUM " (16) SIDE PANELS Installation with side panels. CABINETS (635) (1372) TOP VIEW Installation of two units side by side. CABINETS (635) (686) MINIMUM "...
- Page 12 Planning Information Integrated Model 700TR U P P E R V A L E N C E D E T A I L 2 (38) (1153) BOTTOM DOOR PANEL (2032) FLOOR FINISHED HEIGHT OF 80" (2032) IS TO TOP OF SUB-ZERO MOLDING Dimensions in parentheses are in millimeters unless otherwise specified.
- Page 13 Planning Information Integrated Model 700TR T O E K I C K A R E A D E T A I L (268) PANEL (424) PANEL (254) OPTIONAL (102) Dimensions in parentheses are in millimeters unless otherwise specified. T O E K I C K C L E A R A N C E The toe kick clearance can vary with the height of the lower drawer panel;...
- Page 14 Planning Information Integrated Model 700TR F R A M E D C A B I N E T R Y IMPORTANT NOTE: The depth of each Integrated unit is 24" (610) from the front of the unit to its back. Your design may necessitate moving the unit back, or cabinets forward to achieve a flush fit.
- Page 15 Planning Information Integrated Model 700TR F R A M E L E S S C A B I N E T R Y IMPORTANT NOTE: The depth of each Integrated unit is 24" (610) from the front of the unit to its back.
