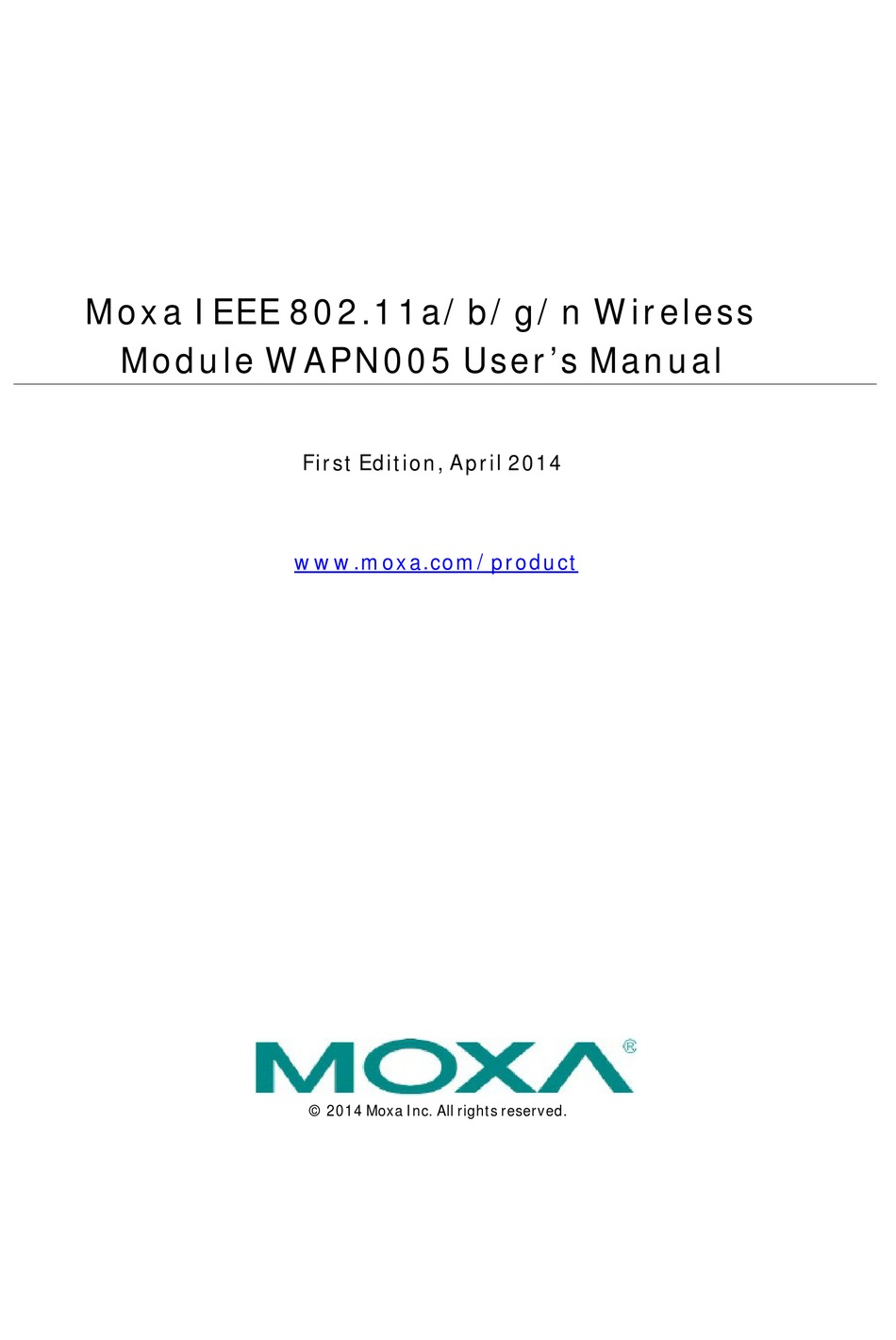

- Page 1 Moxa IEEE 802.11a/b/g/n Wireless Module WAPN005 User’s Manual First Edition, April 2014 www.moxa.com/product ...
- Page 2 Moxa IEEE 802.11a/b/g/n Wireless Module WAPN005 User’s Manual The software described in this manual is furnished under a license agreement and may be used only in accordance with the terms of that agreement. Copyright Notice © 2014 Moxa Inc. All rights reserved. Trademarks The MOXA logo is a registered trademark of Moxa Inc. All other trademarks or registered marks in this manual belong to their respective manufacturers. Disclaimer Information in this document is subject to change without notice and does not represent a commitment on the part of Moxa. ...
-
Page 3: Table Of Contents
Table of Contents Introduction............................ Overview ............................ Features ............................ Specifications ............................. Getting Started.......................... Module Layout............................ Hardware Block Diagram ........................ Connector Location .......................... Board-to-board Bus Connector PIN Assignments.................. Hardware Installation .......................... Software Installation ........................... -
Page 4: Introduction
Introduction This chapter briefly introduces the overview, features and the specifications of the WAPN005 wireless module. The following topics are covered in this chapter: Overview Features Specifications... -
Page 5: Overview
WAPN005 User's Manual Introduction Overview Moxa WAPN005 module is designed to provide wireless communication for all wireless device based systems. It communicates via the standard 802.11a/b/g/n protocols, and uses the AR9344 wireless chipset from Atheros. Features Dynamic frequency selection (DFS) in required 5-GHz bands All-CMOS MIMO solution interoperable with IEEE 802.11a/b/g/n WLANs No external VCOs or SAW filters needed 2.4/5 GHz WLAN MAC/BB processing BPSK, QPSK, 16 QAM, 64 QAM, DBPSK,DQPSK, and CCK modulation schemes ... -
Page 6: Introduction...................................................................................................................................... 1
WAPN005 User's Manual Introduction ... -
Page 7: Getting Started
Getting Started This chapter describes the hardware introduction, installation, and software installation. The following topics are covered in this chapter: Module Layout Hardware Block Diagram Connector Location Board-to-board Bus Connector PIN Assignments Hardware Installation Software Installation... -
Page 8: Hardware Block Diagram
WAPN005 User's Manual Getting Started Hardware Block Diagram Refer to the following figure the hardware block diagram of the WAPN005. Connector Location Refer to the following figures for the connector location of the WAPN005 module. ... -
Page 9: Board-To-Board Bus Connector Pin Assignments
WAPN005 User's Manual Getting Started Board-to-board Bus Connector PIN Assignments Refer to the following figures and table for the PIN assignment of the WAPN005 module connector. Function Connect to ... -
Page 10: Hardware Installation
WAPN005 User's Manual Getting Started GPIO 2 UR_DTR EMDC GIGA PHY EMDIO GIGA PHY GPIO 11 Reset ... -
Page 11: Regulatory Statement Approval
To assure continued compliance, (example - use only shielded interface cables when connecting to computer or peripheral devices) any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: This module is restricted to mobile configuration. To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. This transmitter module must not be co-located or operating in conjunction with any other antenna or transmitter CAUTION Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. This device is operation in 5.15 – 5.25GHz frequency range, then restricted in indoor use only. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: "Contains FCC ID: SLE-WAPN005 ” ... - Page 12 WAPN005 User's Manual Regulatory Statement Approval RF Exposure Warning This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Information for the OEMs and Integrators The following statement must be included with all versions of this document supplied to an OEM or integrator, but should not be distributed to the end user. 1) This device is intended for OEM integrators only. 2) Please see the full Grant of Equipment document for other restrictions. This radio transmitter FCCID: SLE-WAPN005 has been approved by FCC to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.
