  • Page 1 Fitting guide. Receiver-in-Canal (RIC). Receiver in canal (RIC) guide.

  • Page 2: Table Of Contents

    � � � � � � � � � � � � � � � � 12 sound 13 programming cable � � � � � � � � � � � � � 19 Attaching the power dome to the power xReceiver unit�...

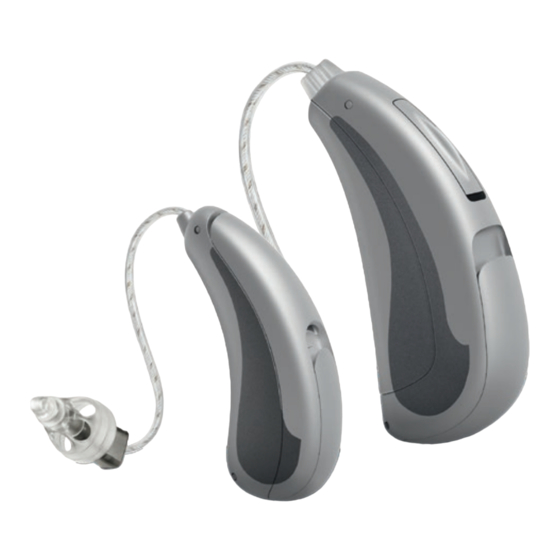

  • Page 3: Ric Product Line

    Fitting guide. Receiver-in-Canal (RIC). RIC Produktlinie. sound 312. sound 13. RIC options Vmax./LAmax. (2cc) Battery RIC options Vmax./LAmax. (2cc) Battery Standard RIC 45/112 dB Standard RIC 45/112 dB Power RIC 55/126 dB Power RIC 55/126 dB Super Power RIC 61/129 dB...
  • Page 4 Fitting guide. Receiver-in-Canal (RIC). Standard-xReceiver. Power-xReceiver. Super Power-xReceiver. Super Power Plus -xReceiver. 250 500 1000 2000 4000 8000 250 500 1000 2000 4000 8000 250 500 1000 2000 4000 8000 250 500 1000 2000 4000 8000 Coupling options. Open Dome Closed Dome Open Dome Closed Dome...

  • Page 5: Measuring For An Accurate Xreceiver Unit

    Fitting guide. Receiver-in-Canal (RIC). Measuring for an accurate xReceiver unit. Choosing the correct xReceiver wire length will ensure a more accurate, com- fortable fit� The measurement tool included in the kit allows for a quick and simple measurement and has the following features: Color Code Markings –...

  • Page 6: How To Measure For An Accurate Wire Length

    Fitting guide. Receiver-in-Canal (RIC). To measure for an accurate wire length. Place your head at the same horizontal level as the patient’s head so Choose the sightline (0-1-2-3) on the measurement tool that is most you are looking straight into the patient’s ear that you wish to fit with parallel with the top of the opening of the ear canal�...

  • Page 7: Modifying Xreceiver Wire To Improve Fit

    Fitting guide. Receiver-in-Canal (RIC). Modifying xReceiver wire to improve fit. In some cases, you might find that the wire of the xReceiver unit does not lie close to the side of the head or follow the shape of the ear� First, ensure the selected dome and xReceiver unit sizes are appropriate (see following pages)�...
  • Page 8 Fitting guide. Receiver-in-Canal (RIC). Choosing the correct coupling for standard 250 500 1000 2000 4000 8000 xReceivers. Determine the correct dome size based on your otoscopic examination of the ear canal� Select the dome type based on the audiometric requirements and Schlechter Sitz Guter Sitz fitting ranges shown on this page�...

  • Page 9: Choosing The Correct Coupling

    Fitting guide. Receiver-in-Canal (RIC). Choosing the correct coupling for 250 500 1000 2000 4000 8000 power xReceivers. Determine the correct dome size based on your otoscopic examination of the ear canal� Select the dome type based on the audiometric requirements and fitting ranges shown on this page�...
  • Page 10 Fitting guide. Receiver-in-Canal (RIC). Choosing the correct coupling for super power 250 500 1000 2000 4000 8000 250 500 1000 2000 4000 8000 and super power plus xReceivers. Select, based on the audiometric requirements and fitting ranges shown on this page� Super power** xReceiver Super power plus* xReceiver *R 13 only...

  • Page 11: Attaching The Retention Piece To The Standard Or Power Xreceiver Unit

    Fitting guide. Receiver-in-Canal (RIC). Attaching the retention piece to the standard or power xReceiver unit. The retention piece may be used for fittings with the open or closed dome depending on the patient’s requirements� The retention piece is optional and allows for extra security in the ear� The retention piece can easily be cut shorter to comfortably fit into the patient’s concha bowl�...

  • Page 12: Attaching The Dome Or Sleeve Mold To The Standard Xreceiver Unit

    Fitting guide. Receiver-in-Canal (RIC). Attaching the dome or sleeve mold to the Attaching the power dome to the standard xReceiver unit. power xReceiver unit. Hold the xReceiver unit in one hand and the coupling (i�e� dome or Hold the xReceiver unit in one hand and the power dome sleeve mold) in the other hand�...

  • Page 13: Attaching The Standard, Power Or Super Power Xreceiver Unit To Sound 312

    Fitting guide. Receiver-in-Canal (RIC). Attaching the standard, power or super power xReceiver unit to sound 312. Attaching the xReceiver unit to sound 312. Removing the xReceiver unit from sound 312. Use the small silver tool to push the slider pin slightly sideways� Use the small silver tool to push the slider pin slightly sideways�...

  • Page 14: Attaching The Standard, Power Or Super Power Plus Xreceiver Unit To Sound 13

    Receiver-in-Canal (RIC). Attaching the standard, power or super power plus xReceiver unit to sound 13. Attaching the xReceiver unit to sound 13. Replacing the xReceiver unit from sound 13. Ensure the xReceiver lock is in the open position� Insert the tool into the slot to open the xReceiver lock�...

  • Page 15: Configuring In Hansaton Scout

    Connect hearing instrument to the NOAHLink, HI-PRO, or iCube Go to the Acoustics screen in the Instruments menu� and click the detect icon� HANSATON scout software will display the connected devices and serial numbers� Select the connected Receiver unit for each hearing instrument from the drop-down lists�...

  • Page 16: Feedback Optimization

    Fitting guide. Receiver-in-Canal (RIC). Feedback optimization. Run Feedback Optimization�...

  • Page 17: Sound 312 Battery Door Replacement

    Fitting guide. Receiver-in-Canal (RIC). sound 312 battery door replacement. sound 13 battery door replacement. Removal. Removal. Use the small silver tool to push the pin out� Use the small silver tool to push the pin out� Remove the battery door�...

  • Page 18: How To Measure Performance In A Coupler

    HA1 coupler and allows for a good connection of the xReceiver unit to the coupler� Select Activate Test Box Measurement Mode in HANSATON scout software from the menu on the top menu bar� Clicking on Activate Test Box Measure- ment Mode disables the adaptive features and activates the omnidirectional microphone mode to allow for correct measurements�...

  • Page 19: Sound 312 Programming Cable

    Fitting guide. Receiver-in-Canal (RIC). sound 312 programming cable. sound 13 programming cable. Insertion. Insertion. Open the battery door to reveal the programming port� Open the battery door to reaveal the programming port� Push the cable down onto the programming port�...

  • Page 20: Wax Guard Replacement And Cleaning Domes

    Fitting guide. Receiver-in-Canal (RIC). Wax guard replacement and cleaning domes. All xReceiver units are equipped with a wax guard system to protect the xReceiver from ear wax� The wax guard can be easily replaced� You will need to counsel your patient on how to replace the wax protector, see instructions included with the replacement packs�...

  • Page 21: Sound

    Hansaton Akustik GmbH Sachsenkamp 5 20097 Hamburg • • Telefon: + 49 40 29 80 11 0 Fax: + 49 40 29 80 11 860 • Email: info@hansaton.de Internet: www.hansaton.com •...
