Taurus T10.3 Pro Owner's Manual page 16

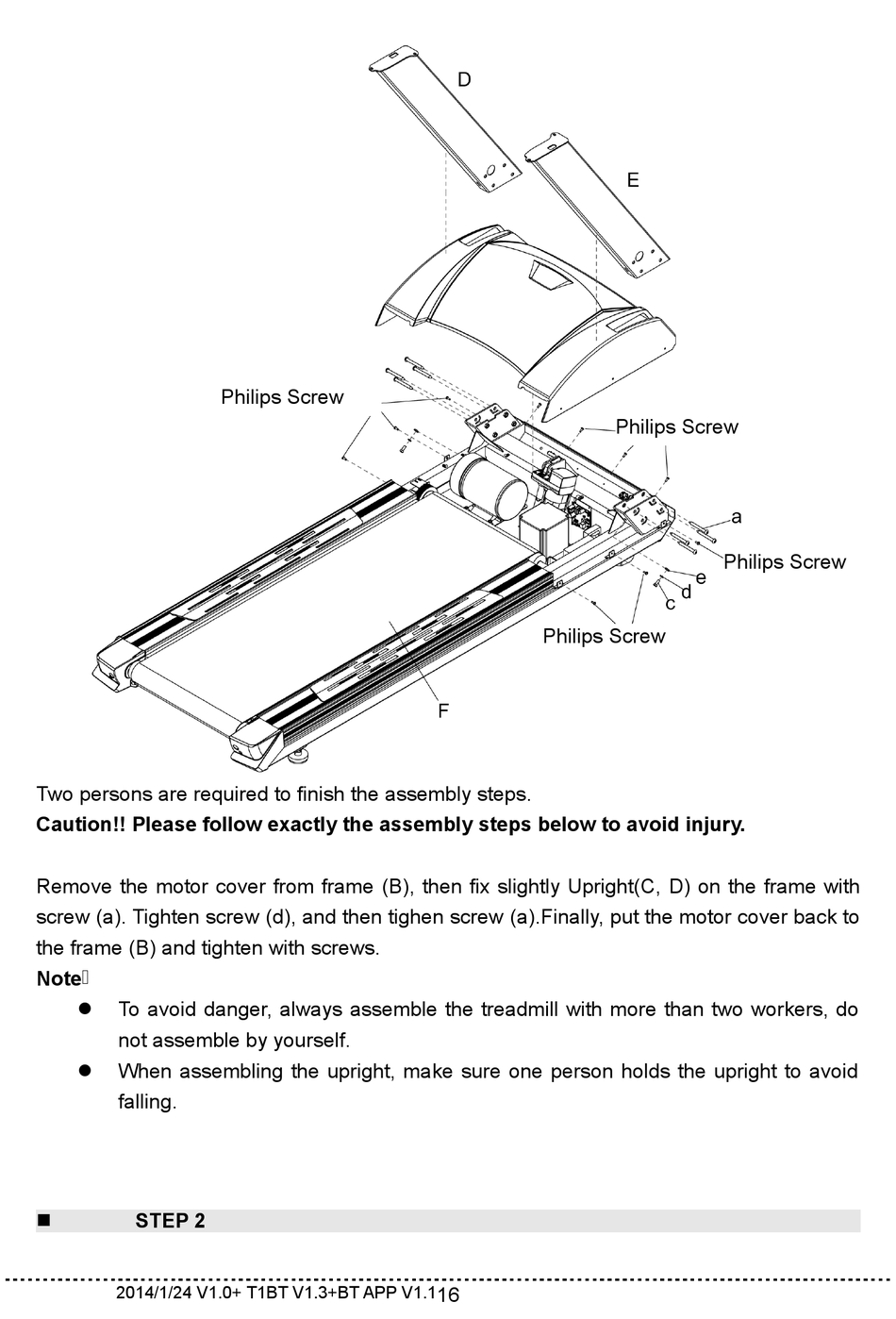

Two persons are required to finish the assembly steps.
Caution!! Please follow exactly the assembly steps below to avoid injury.
Remove the motor cover from frame (B), then fix slightly Upright(C, D) on the frame with
screw (a). Tighten screw (d), and then tighen screw (a).Finally, put the motor cover back to
the frame (B) and tighten with screws.
Note ：
 To avoid danger, always assemble the treadmill with more than two workers, do
not assemble by yourself.
 When assembling the upright, make sure one person holds the upright to avoid
falling.
 STEP 2
2014/1/24 V1.0+ T1BT V1.3+BT APP V1.1
Philips Screw
Philips Screw
16
Philips Screw
Philips Screw
