3.2.9 Electrically disturbed environment

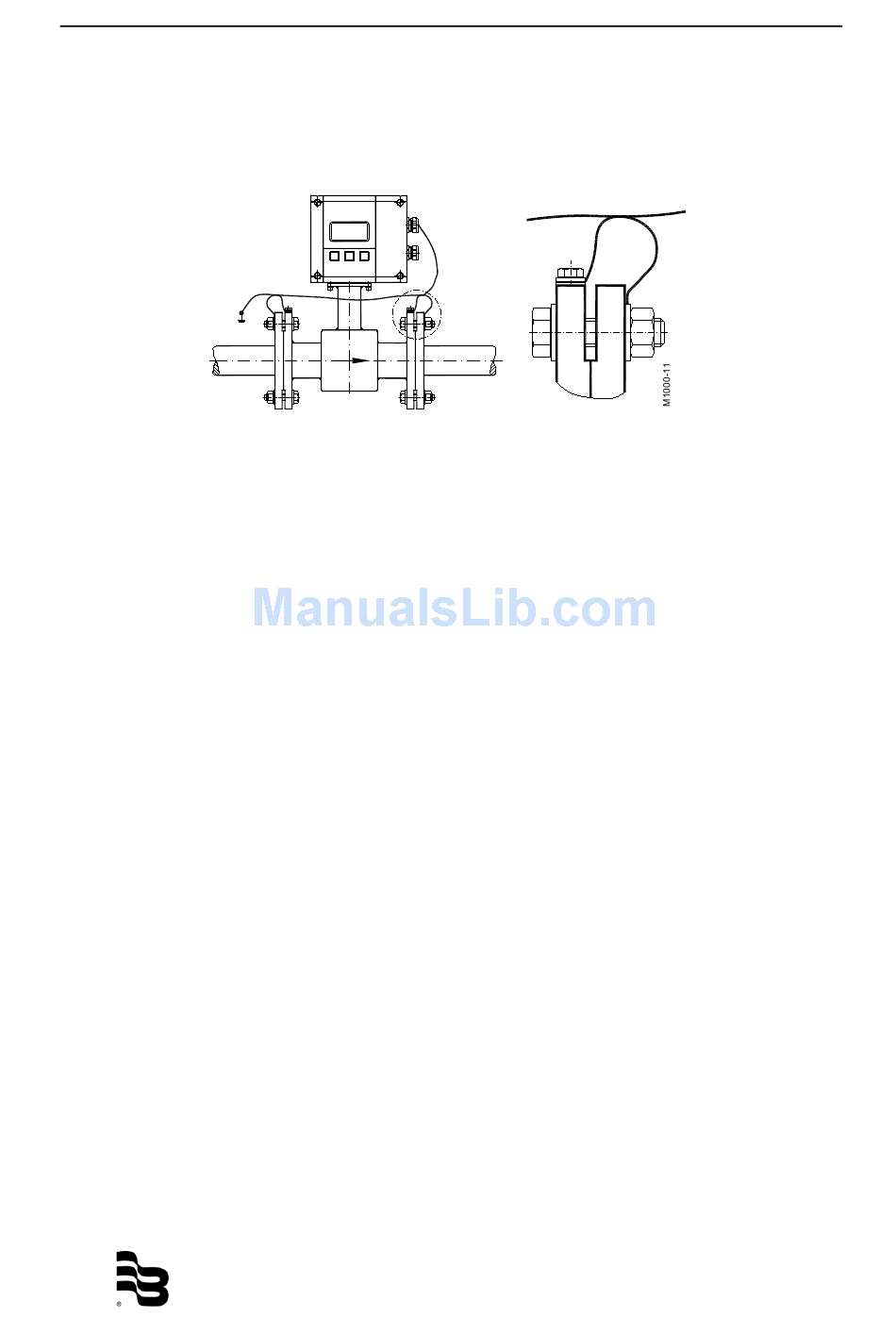

If the pipe material is in an electrically disturbed environment or if metallic pipelines
that are not grounded are used, we recommend a groundring as shown in the
following picture in order to assure that measurement is not influenced.
PE
6 mm² Cu
"X"
M4:1
"X"
