Wiring Color Codes And Pin Configurations - Altronix HubWayEX1 Installation Manual

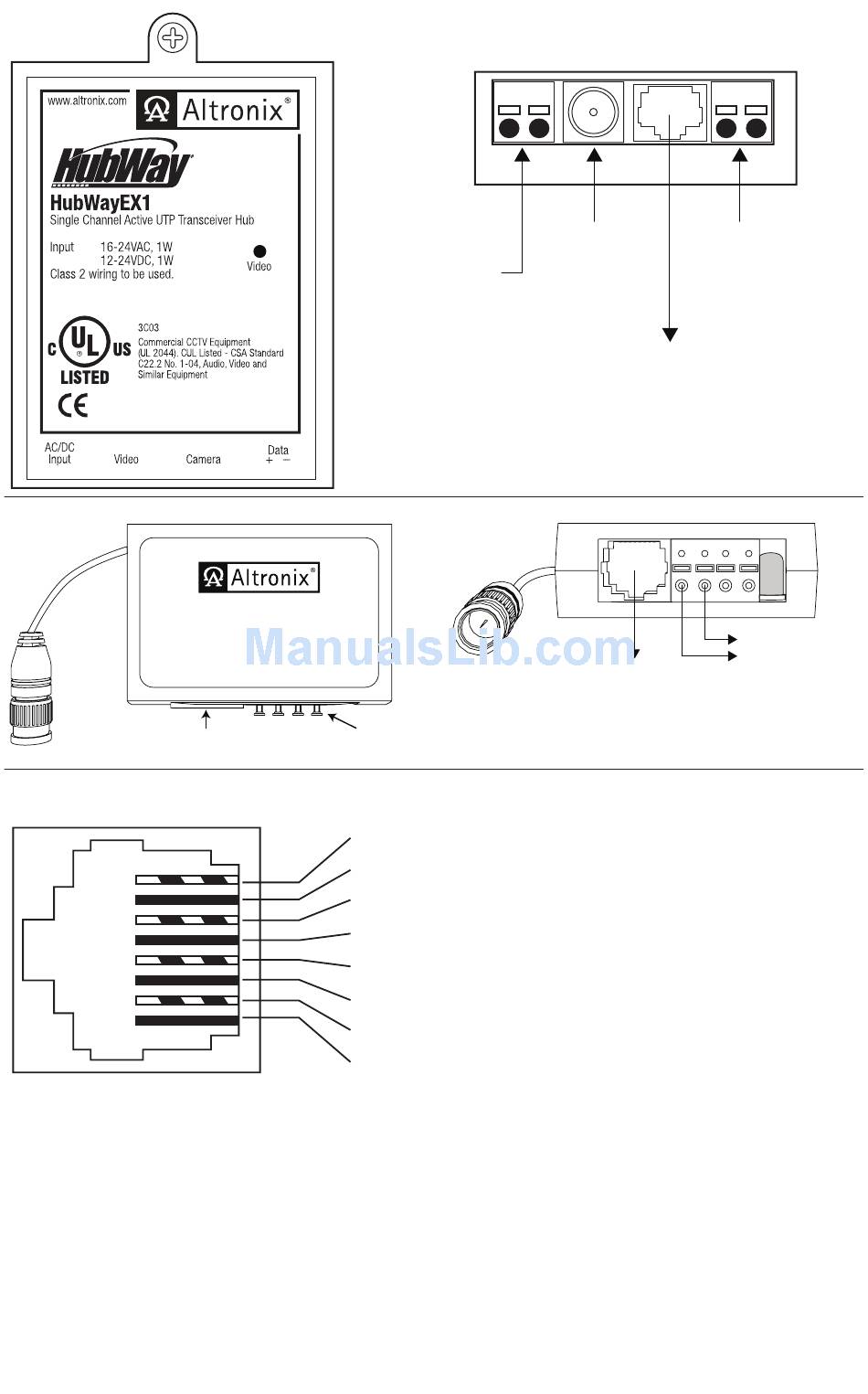

Fig. 1
Fig. 2
VIDEO
Fig. 2a
Fig. 3 - CAT-5 Structured Cable Wiring Color Codes and PIN Configurations
- 2 -
HubWayAv
VIDEO BALUN/COMBINER
AC
CAT5 + DATA-- POWER
RJ45 Jack
UL Listed
Class 2
power supply
or Class 2
transformer
Fig. 2b
To BNC
Connector
of Camera
Wire
Connectors
1 - White/Orange [VIDEO +]
2 - Orange [VIDEO -- ]
3 - White/Green [DATA +]
4 - Blue [N/A]
5 - White/Blue [N/A]
6 - Green [DATA -- ]
7 - White/Brown [N/A]
8 - Brown [N/A]
Video output
Spring terminal block
to head end for RS422/RS485 input
equipment
from head end equipment
(DVR). (DVR) for PTZ control.
CAT-5 or higher structured
cable to Video/Balun Combiner
at camera.
Structured
Cable from
HubWayEX1
--
Data to
+ Camera
HubWayEX1
