II. Product Description
1. Contents
* Unpack and check all the items as below.
Item
Webthru SWC 306
Manual
Crossover Cable
Direct Cable
Adapter & Power Cable
Accessories
CD ROM title

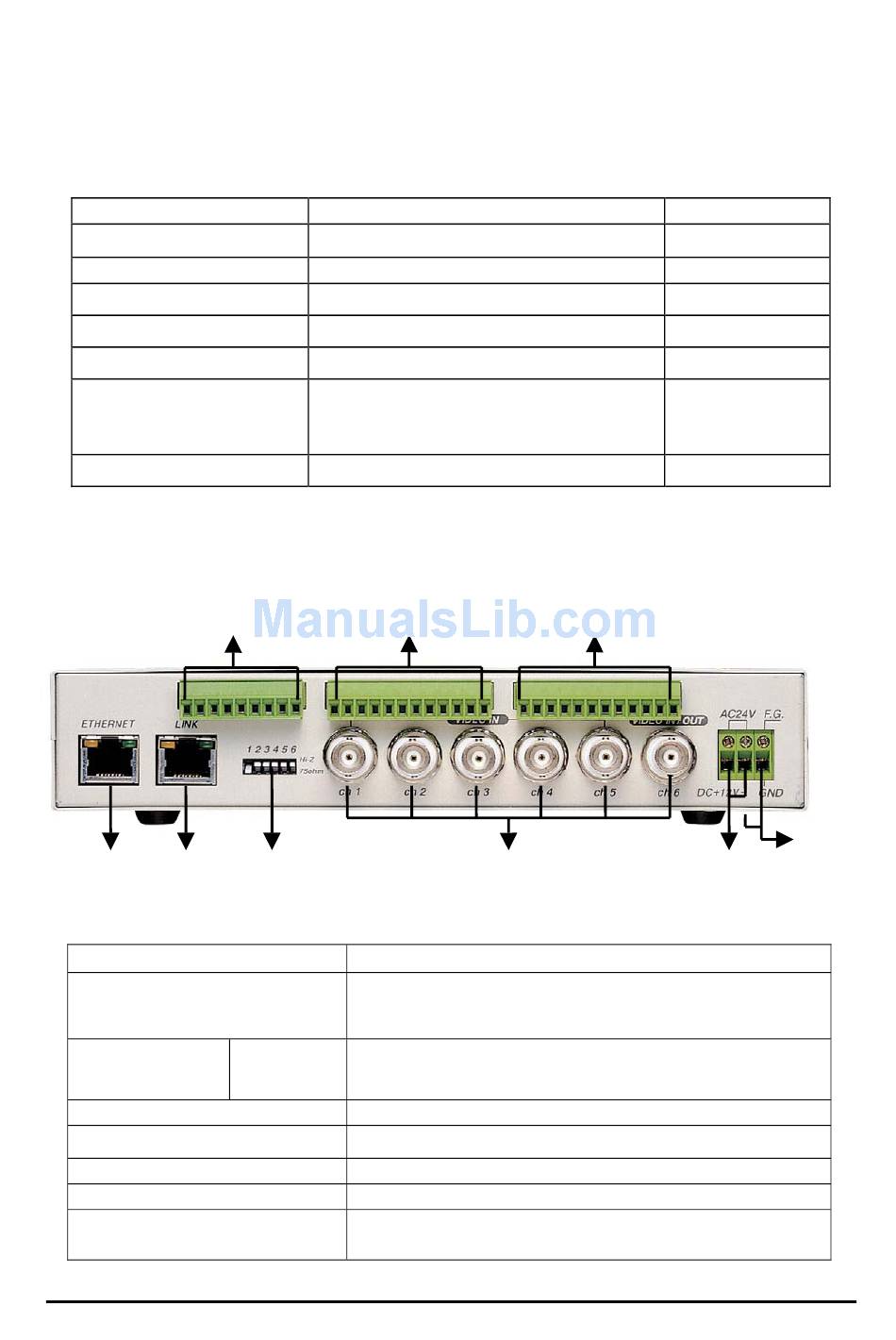

2. Webthru SWC 306 View and Descriptions
RS232/RS422/RS48
Network
Link
Connector Name
DIP switch
BNC connector
AC 24V
DC 12V
RJ-45 Ethernet port
Link port
RS232/RS422/RS485
Network server for CCTV camera
Webthru SWC 306 User's Guide
1 m crossover cable
2 m direct cable
DC 12V, 1.0A
brackets for 19-inch rack
bracket for connecting two SWC 306
Screw for bracket
Setup program and manual
Sensor In
DIP Switch
To designate video signal termination of 'Video Input' BNC
connector
CH1 ~ CH6
To input video signal through a coaxial cable
To connect a power supply unit of 24V AC
To connect a power supply unit of 12V DC
To connect 10 Base-T Ethernet cable
Stackable up to three boxes only with one IP
To communicate between external devices. These pins are for
devices that satisfy RS-232, RS422, or RS485
Description
Alarm
Video Input
Description
6
Webthru SWC 306 User's Guide
Remarks
Provided on CD
Red-colored
White-colored
2
1
8
DC 12V
AC 24V
