3. Various viewers in Webthru homepage

There are 3 viewers for real-time monitoring in the Webthru homepage: Default Viewer, Server-Push Viewer,
and Java Applet Viewer. An administrator may set 3 different viewers as main viewer. (Single Viewer, Multi
Viewer, and Server Push Viewer)

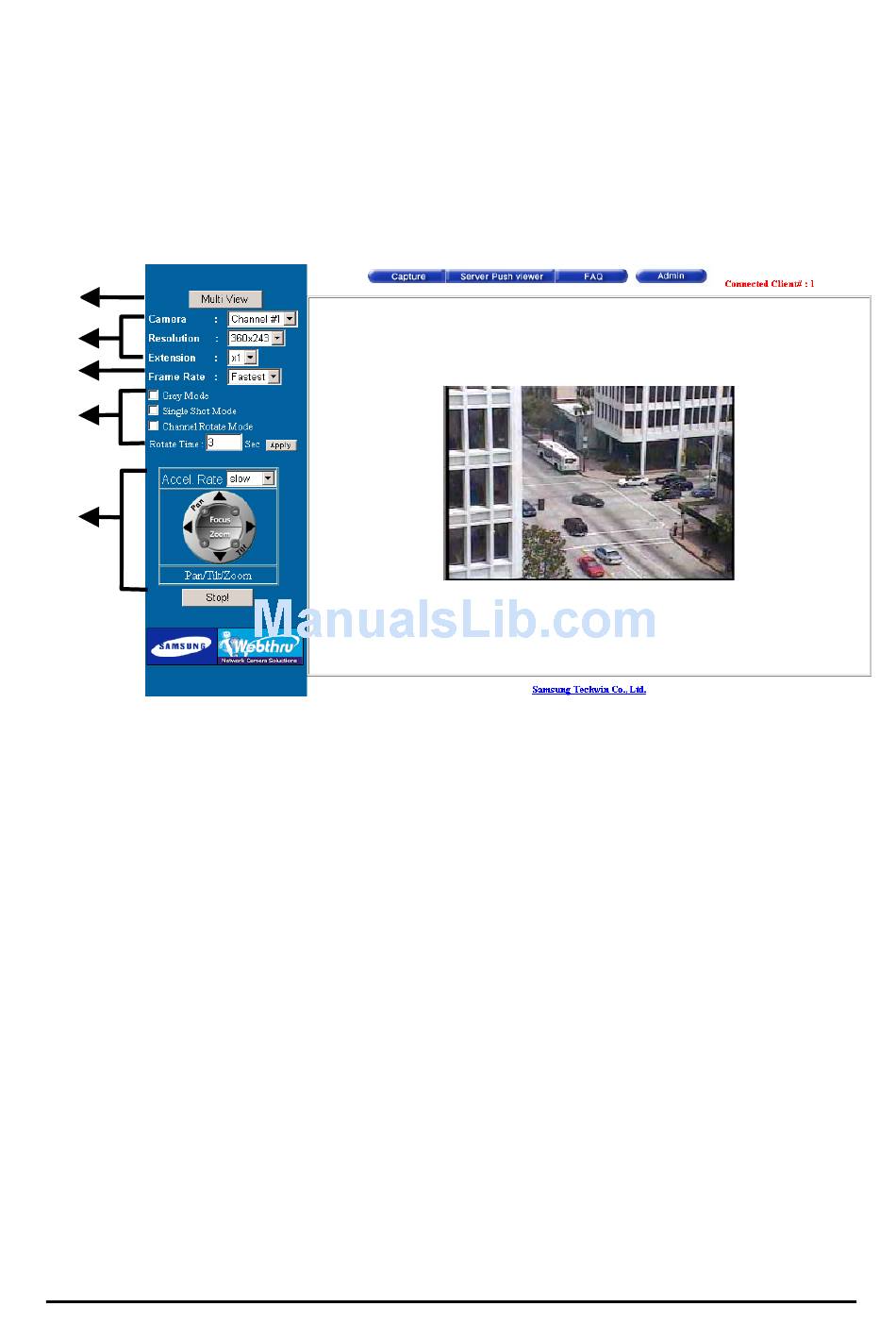

1) Real time monitoring through Default Single Viewer

(1)
(2)
(3)
(4)
(5)
At default viewer, a user may configure image transmission method and control integrated PTZ mechanism of
a CCTV camera. The PTZ control panel is activated in some seconds depending on network speed.
(1) Single View / Multi View
The "Multi View" allows the monitoring of other images from additional cameras connected to the Webthru.
If you press the "Multi View", you can view six images simultaneously. Please note that transmission speed
cannot exceed 30 fps, and additional images will make overall transmission speed slow. "Single View"
monitors a single channel. Click on the appropriate button for single view or multi view.
(2) Image Control
Resolution
Select the level of resolution from 5 levels (720x486, 720x243, 360x243, 180x121, 90x60). Higher-resolution
images are larger file sizes and are transmitted at slower speed.
Expansion
Expansion enlarges the image from 1X to 4X. However, expansion (2X to 4X) does not increase image's
resolution, hence the clarity of an expanded image will not be as good as the original.
Frame rate
To control image transmission speed. "Fastest," will receive images at the fastest speed possible within the
network environment. The transmission speed is dependent on the network line's capacity and user PC's
