delivered to a person who is defined as a
recipient in the blank of 'E-Mail Recipient'.
The person who received e-mail can send a
message of countermove to a person who is
defined as an e-mail sender.

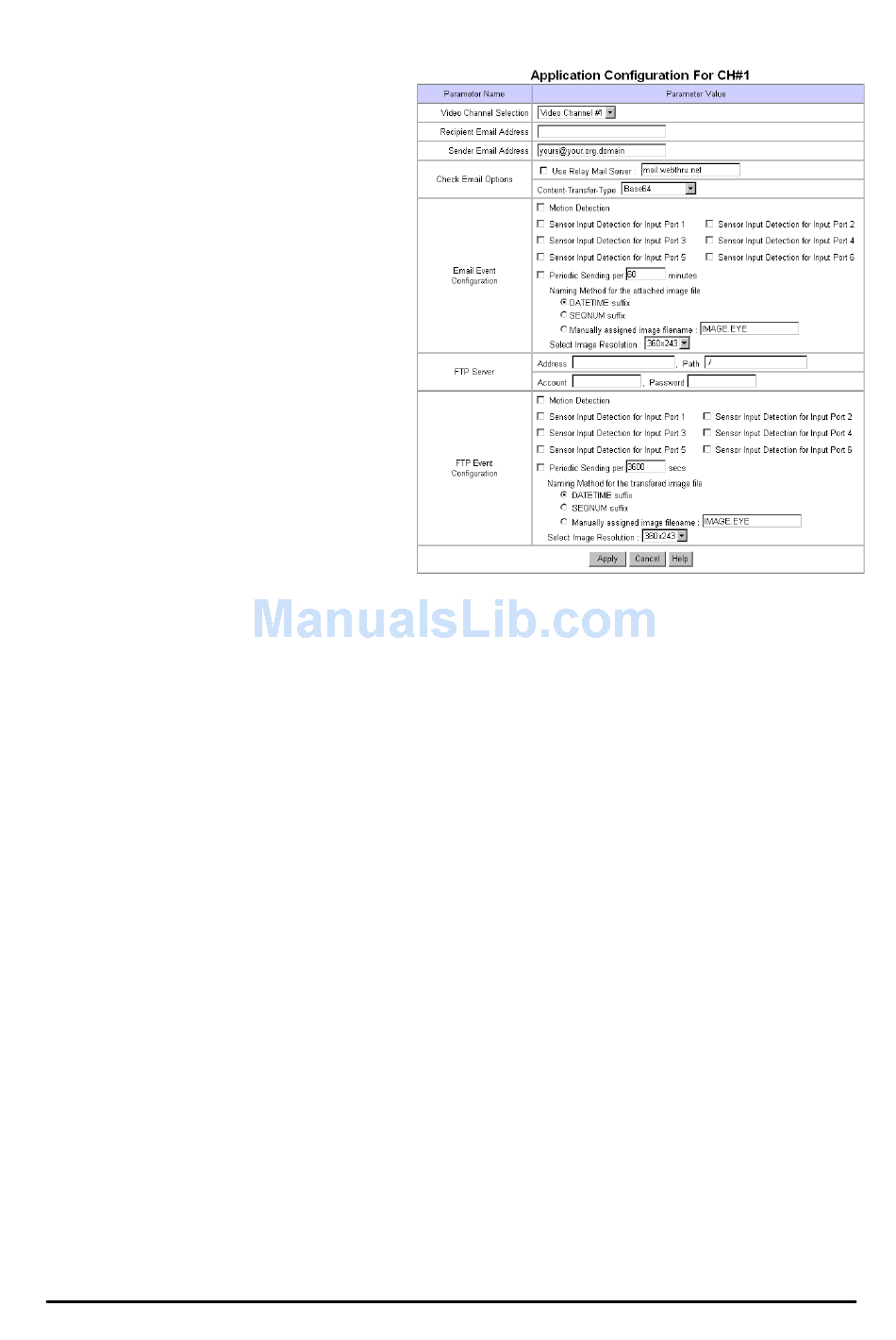

(4) Check E-Mail Options
Relay Mail Server: With the same problem of
e-mail blocking, Webthru has a function to
relay its e-mail through an available e-mail
server so that e-mail can have the relay
server's domain name. After activating 'User
Relay Mail Server' menu, key in a server's
domain name such as '@abcdefg.com'.
Content-Transfer-Type: It is to define e-mail
format. E-mail servers support 'Base64'
format in common, but some servers not. In
the case, select the format as 'Quoted
Printable'.
(5) E-Mail Event Configuration
Event source: Administrator should define the triggering event for E-mail delivery among MD (motion
detection), sensor 1, sensor 2, sensor 3, sensor 4, sensor 5, and sensor 6. If administrator clicks on sensor1, e-
mail is sent when the sensor 1 detects events.
File name: Administrator can name the image files by one of three methods: date & time (DATETIME; e.g.
IMG-CH00-2001030-223031.eye), serial number (SEQNUM; e.g. IMG-CH00-SN1.eye), or the administrator
can name the file (Manually assigned filename). The image file has the extension ".eye" to enable
reproduction on an Internet browser.
Image quality: Administrator may set image's resolution that is delivered by e-mail. Resolution is to be set
among 90x60, 180x121, 360x243, 720x243, and 720x486. An image of 90 by 60 is of the lowest resolution
and the smallest size.
(6) FTP directory configuration
Administrator assigns FTP server address, FTP user account, FTP user password, and FTP user path to
receive files when events occur.
(7) FTP event configuration
Administrator may set sending conditions, image resolution, and file name. Image resolution, filename, and
sending conditions setting methods for FTP are same as that of e-mail.

9) Pan/Tilt/Zoom Configuration

This page is to decide whether to use pan/tilt/zoom control function or not and select which serial port to use.
(1) Video Channel Selection
Administrator selects a video channel for the pan/tilt/zoom mechanism. The four channels shown in the panel
