1. Press the SELECT button to activate the OPS window.
2. Press the ENTER button to enter the main menu.
To change the meter setup, or to clear the accumulated values:
1. Press the SELECT button to activate the CHG window.
2. Press the ENTER button to enter the main menu.

Entering the Password

The Setup Change menu can be secured by a four-digit user password. The
meter is primarily shipped with the password preset to 0 and password
protection disabled. You can change the password and enable password
protection through the Access Control menu (see Meter Security).
If authorization is not required, just press the ENTER button to move to the
Main menu; otherwise you should enter a correct password to be authorized
to access the meter setup.
PASS
0000
To enter the password:
1. Adjust the first digit with the UP and DOWN arrow buttons.
2. Press the SELECT button to advance to the next digit.
3. Adjust the remaining password digits in the same manner.
4. Press ENTER to confirm the password.
If the password entered is correct, you move to the Main menu, otherwise
you return to the previous menu.
Selecting the OPS or CHG entry moves you to the Main menu that is
represented by two entries: the upper window displays a secondary menu
list, while the bottom item is an assisting exit window.

Selecting a Menu Entry

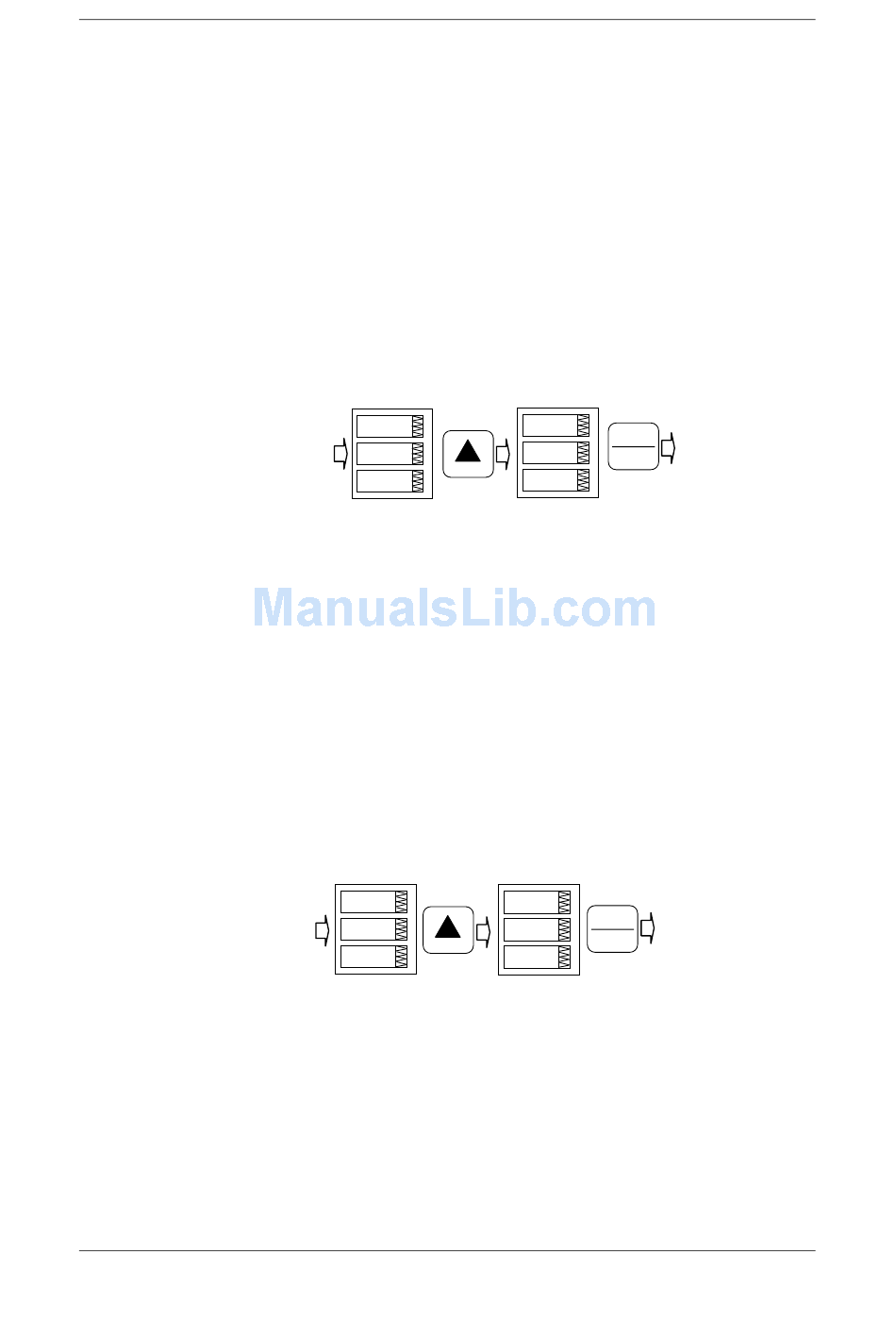

To select a menu entry from the menu list:
1. Highlight the upper item by pressing the SELECT button.
rSt
ESC
2. Scroll through the menu list by pressing briefly the UP and
DOWN arrow buttons until the desired menu entry
appears.
3. Press the ENTER button.

Viewing and Changing Setup Items

A second level menu normally consists of three items: the upper static
window indicates the menu name, while the middle window represents a list
of setup parameters you can scroll through, and the lower item shows the
present parameter value.
To select a parameter you want to view or change:
Using the Menus
PASS
ENERGY
0201
ENTER
bASc
ENERGY
ENTER
ESC
