Chapter 2 Installation
Analog Inputs/Outputs
Digital Inputs
AC Voltage Inputs
COM1 Port
18

Terminals

Relay Outputs
18 19 20 21 22
+
1 2
1
DIGITAL INPUTS
ANALOG INPUTS
ANALOG OUTPUTS
2
V
1
S/N
POWER SUPPLY
90-264VAC
50/60Hz
5 STANDARD
85-290VDC
V
2
(12) 10-16VDC
(24) 18-36VDC
(48) 36-72VDC
COM.1 :
8
RS-232/422/485 STANDARD
V
ETHERNET
3
MODEM
PROFIBUS
COM.1
11
5 1
V
9
N 6
COM2 Port Chassis Ground

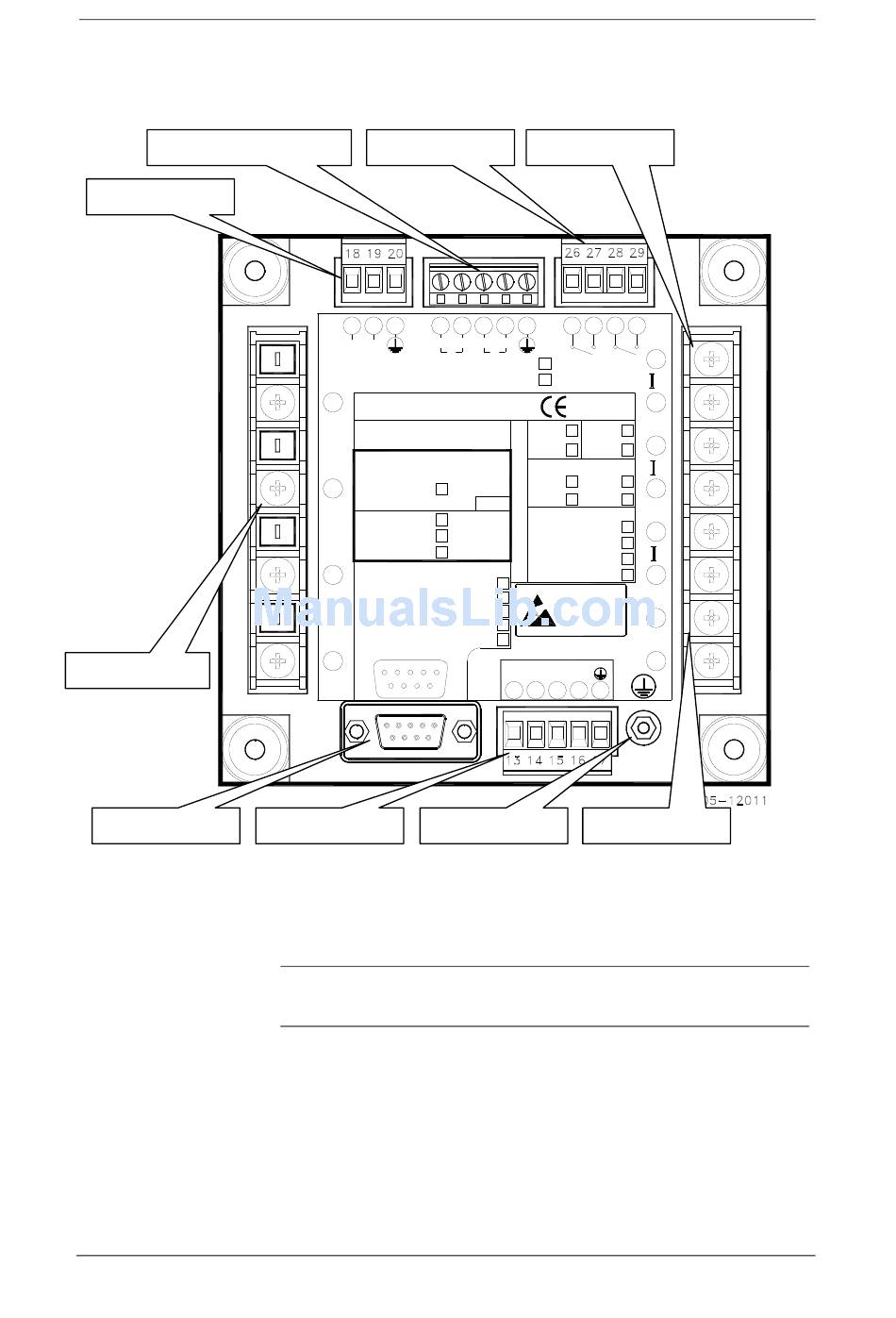

Figure 2-16 Terminals - Rear View

Power Source Connection

Before connecting your meter to the power source, check the label on the
back of the device to ensure that it is equipped with the appropriate power
supply.
The power source can be dedicated-fused, or from a monitored voltage if it is
within the instrument power supply range.
AC power supply: connect the line wire to terminal 12 and the neutral wire to
terminal 10.
DC power supply: connect the positive wire to terminal 12 and the negative
wire to terminal 10.
