Chapter 2 Installation
FRONT VIEW
Series PM172 Powermeters
DIN Rail Mounting
The PM172 can be mounted on a 35-mm DIN rail. The display module is
mounted separately on the switchboard panel and is connected to the meter
by a communication cable (see "Remote Display Installation").

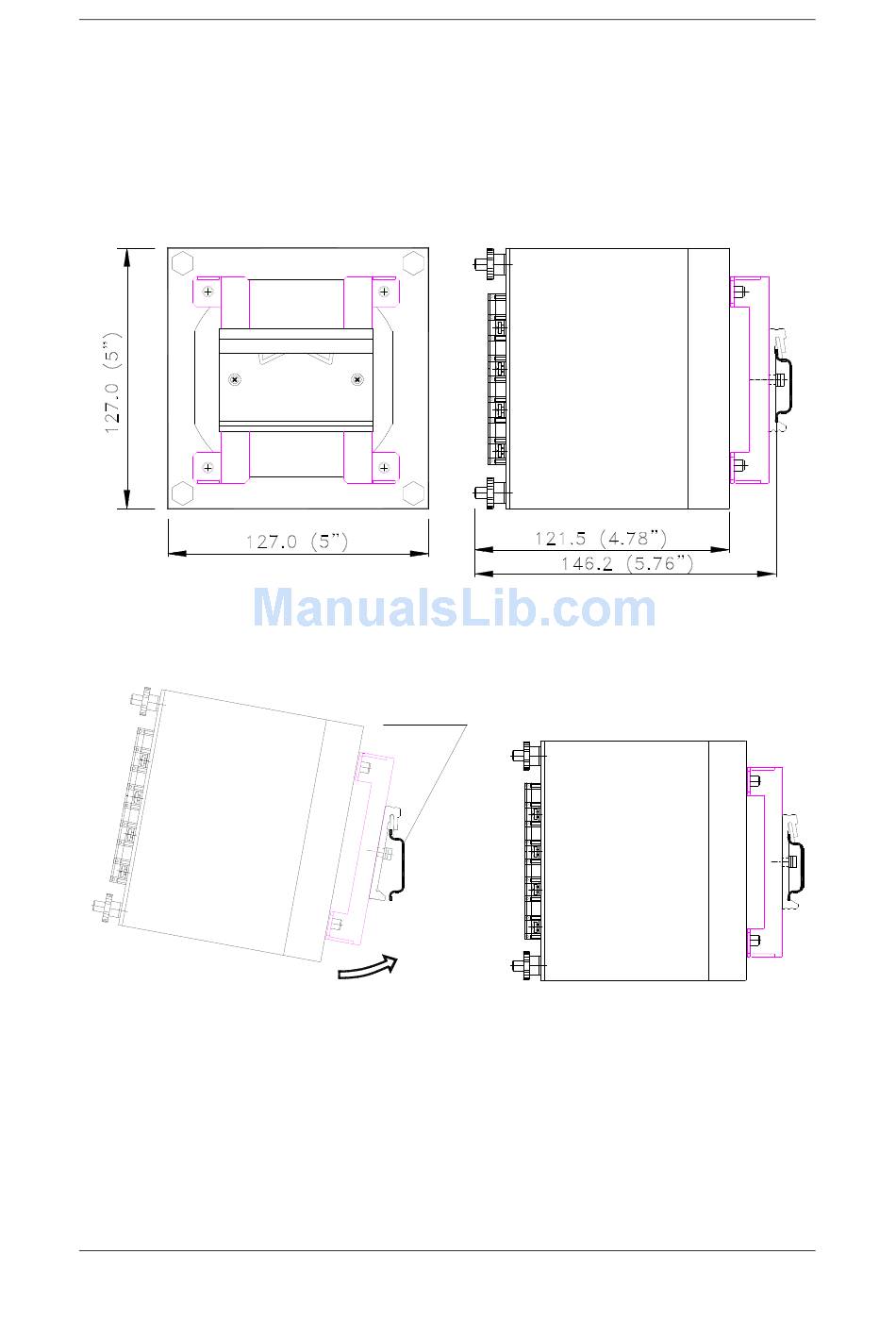

Figure 2-7 Dimensions
DIN RAIL
Figure 2-8 DIN rail mounting
Mechanical Installation
SIDE VIEW
BG0386-1
BG0386-2
13
