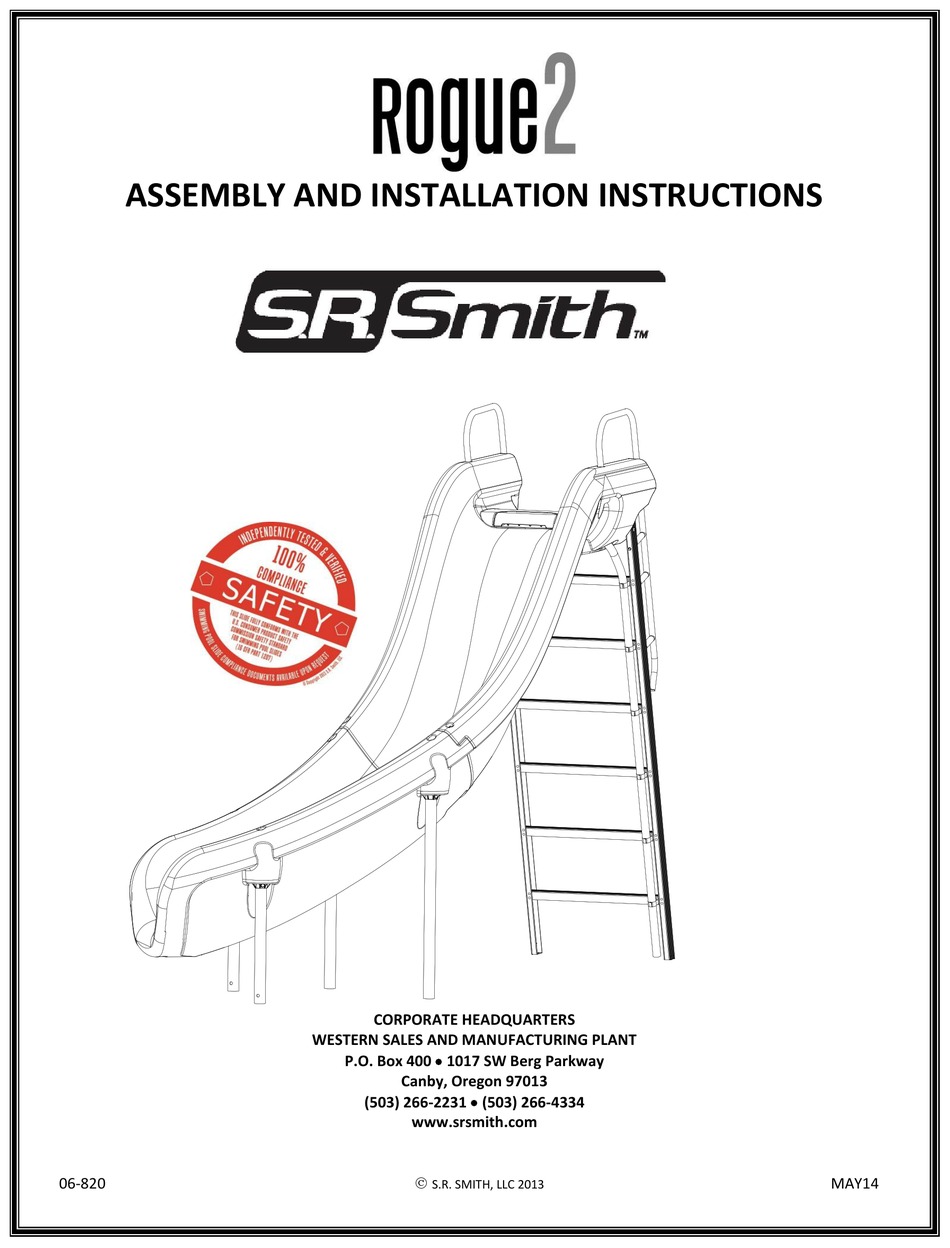

- Page 1 ASSEMBLY AND INSTALLATION INSTRUCTIONS CORPORATE HEADQUARTERS WESTERN SALES AND MANUFACTURING PLANT P.O. Box 400 1017 SW Berg Parkway Canby, Oregon 97013 (503) 266-2231 (503) 266-4334 www.srsmith.com 06-820 MAY14 S.R. SMITH, LLC 2013...
-
Page 2: Table Of Contents
Table of Contents Topic Page # INTRODUCTION .................................... 2 ROGUE2 PARTS LIST ..................................3 TOOLS REQUIRED FOR SLIDE ASSEMBLY: ............................ 5 ASSEMBLY INSTRUCTIONS ................................7 ASSEMBLY INSTRUCTIONS FOR ON DECK MOUNTING ......................13 IN-DECK MOUNTING .................................. 14 SLIDE PLUMBING INSTRUCTIONS .............................. 14 MANUFACTURER’S PLACEMENT INSTRUCTIONS ........................ -
Page 3: Rogue2 Parts List
ROGUE2 PARTS LIST Before getting started check to make sure that all of the parts listed below arrived with the S.R. Smith ROGUE2 slide. Ref # * PART # DESCRIPTION 05-773 Garden Hose Adapter (ref. pg 13) 1ea. 05-181 1” PVC 90 Elbow ST SCH 40 SXS 1 ea. - Page 4 ROGUE2 PARTS Figure 1 (24)
-
Page 5: Tools Required For Slide Assembly
(SOLD SEPERATELY) SLIDE DECK ANCHOR FLANGE KIT PARTS SLIDE DECK ANCHOR FLANGE KIT (75-209-5866) 75-209-5000 Aluminum Flange Anchor 4 ea. 05-162 5/16 -18 UNC x 2 3/4 STUD w/ FLAT 16 ea. WASHER & LOCK NUT 05-14-123 1/4-20 UNC x 2 3/4 HHCS 4 ea. - Page 6 Figure 3 For SI: 1 degree = 0.017 rad, 1 inch = 25.4 mm, 1 foot = 304.8 mm ROGUE 2 right curve slide shown, left curve is mirror image of right curve. SEE APPENDICES (pg.17) for additional slide layout details.
-
Page 7: Assembly Instructions
ASSEMBLY INSTRUCTIONS 1) Place the slide runway upside down on a surface that will not scratch the slide. (TIP: Use flattened Rogue2 box to help protect slide from scratches during assembly.) a. Ensure the gaskets installed at the factory are still in place. Any damaged gasket should be replaced prior to assembly. - Page 8 Go back and fully tighten the outside bolts before completely tightening the center bolts. Tighten until the plastic surfaces come into contact and are secure. Do not over tighten the hardware. 2) Insert the slide legs into the leg sockets. See Figure 5. a.
- Page 9 4) Carefully turn the slide with the legs and ladder upright for setup. It will be necessary for two people to perform this to avoid damage to the slide. 5) Place the slide at the desired location relative to the pool wall. See MANUFACTURER’S PLACEMENT on pages 17 &...
- Page 10 8) Secure the ladder to the slide using the hardware as shown in Figure 7. Insert a (#16) 3.5” Button Head Screw with a (#17) Flat Washer though each drilled hole. Fasten each screw using a (#17) Flat Washer, (#18) Lock Washer, and (#20) Acorn Nut. 9) With the entrance way secured and the slide in relative final position.
- Page 11 11) Disassemble each handrail as shown in Figure 9. Insert the two handrails into the holes on the top of the slide runway rails, and rotate so that the rails are resting in the grooves on the back side of the entrance section. Secure each handrail into the socket using a (#10) Flat Washer, a (#11) Lock Washer, and a (#12) Hex Nut.
- Page 12 Insert Spacer (13) 10, 11, 12 Figure 10 13) For the remaining two ladder spacers, align parts (#7), (#8) and (#9) between the hole in the handrail and the hole in the ladder as in step 12. Use a (#5) 1/4-20 x 6” Carriage Bolt along with a (#10) Flat Washer, a (#11) Lock Washer, and a (#12) Hex Nut to fasten the parts together as...
-
Page 13: Assembly Instructions For On Deck Mounting
shown in Figures 9 and 10. Use Loctite® 242 Thread Locking Compound on all handrail fasteners. ASSEMBLY INSTRUCTIONS FOR ON DECK MOUNTING (FOR IN-DECK MOUNTING PROCEED TO STEP 19) 14) Bond slide per local codes (see ELECTRICAL BONDING page 18). 15) Place a deck anchor flange over each end of the slide legs. -
Page 14: In-Deck Mounting
not to run the drill bit into the 1/4" bolt. Push the cap screw completely through the slide leg. Install the (#25) 1/4" x 5/8” Flat Washers and (#26) 1/4"-20UNC Hex Lock Nuts (see Figure 25). IN-DECK MOUNTING 22) Insert 3/8” (9.5 mm) diameter rebar (not provided) into the holes located at the bottom of each leg making sure that the rebar will be a minimum of three inches (3”) below the deck surface. - Page 15 28) Use a drill with a Phillips bit to fasten the (#3) Plastic Pipe Clamp to the ladder as shown below in Figure 12. The hose clamp should be attached with the top of the clamp aligned with the top of the step and the side of the clamp against the ladder side rail, See Figure 12.
-
Page 16: Manufacturer's Placement Instructions
Flex Hose Figure 14 Garden Hose Adapter Installation Instructions If connecting the Rogue2 water system to the pool plumbing system is not an option you may connect the water system to a garden hose by following the steps outlined below. A.) Make sure that the Rogue2 water system has been properly assembled as explained in the Rogue2 Installation Instructions. - Page 17 A. The slide exit runway surface shall not exceed twenty inches (20”) (508 mm) above the water surface and not less than eight inches (8”) (203 mm) above the deck/coping surface (see Figure 17). B. The slide shall be positioned so that all water flowing off the runway exit drops into the pool. C.
-
Page 18: Electrical Bonding
of the board’s centerline as shown in Figure 20. Pt.C extends a minimum distance of “C” from the tip end of the board as shown in Figure 20. The width distance “W” on either side of Pt.C is given in CHART 1 and shown in Figure 20. For SI: 1 degree = 0.017 rad, 1 inch = 25.4 mm, 1 foot = 304.8 mm CHART 1 BOARD MINIMUM CLEARANCE AREA... -
Page 19: Appendices: Left And Right Curve Footprint
Appendices: Rogue 2 Slide Footprint (Right Curve Shown, Left Curve is Mirror Image) The purpose of this footprint is to serve as a GUIDELINE ONLY for approximate placement of the slide relative to the pool’s edge. The actual dimensions after installation may vary according to the slope of the deck and the angle that the slide is oriented relative to the pool wall.
