SediGraph III 5120 Service

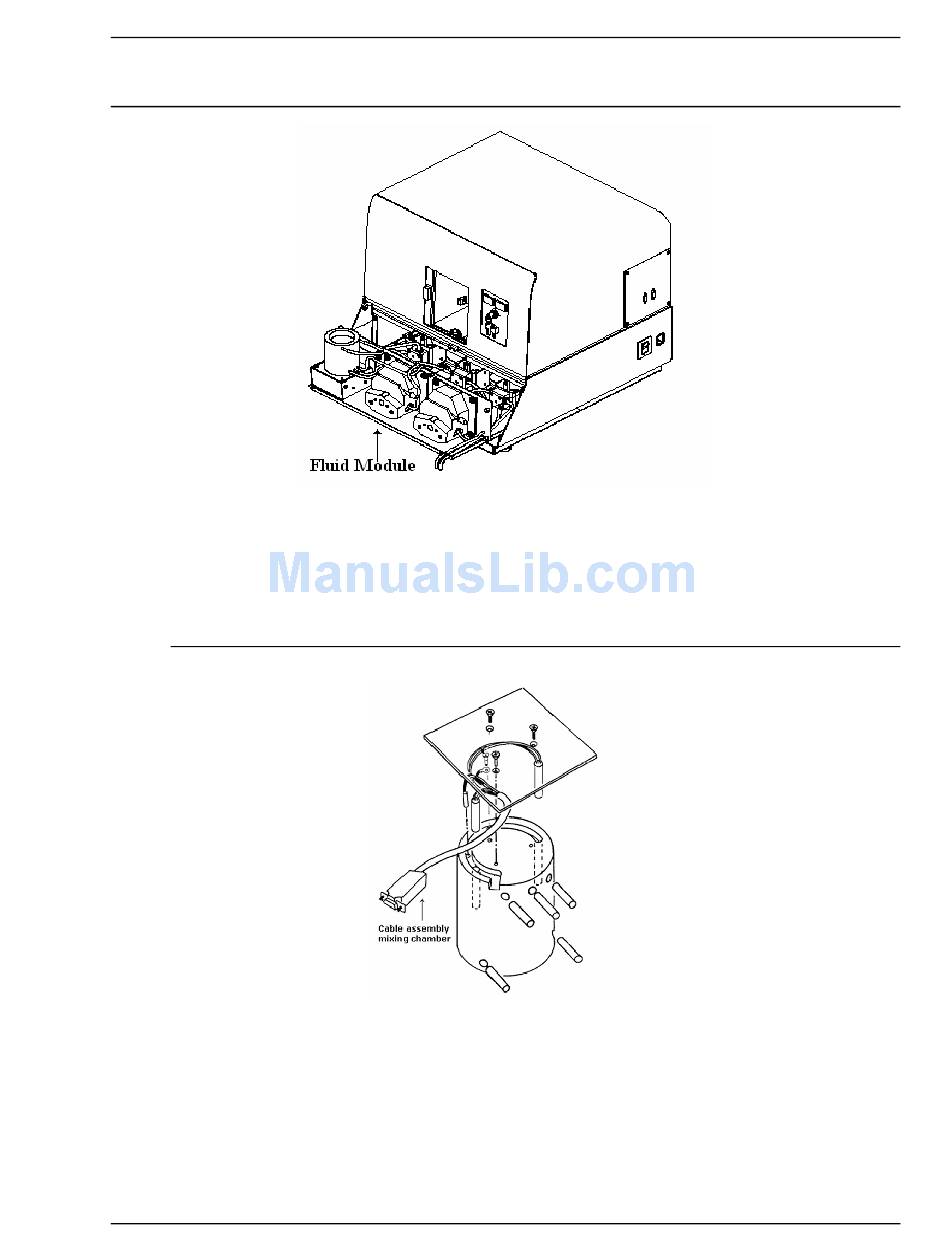

Fluid module

The purpose of the fluid module (PN 512/34006/00) is to control the flow of fluid into and out
of the instrument for rinsing and cleaning, and to load and circulate sample material. It is
located in the lower part of the instrument behind the fluid module cover and consists of the
following components.

Mixing Chamber

The mixing chamber is located under the fluid module cover, on the left side of the instrument.
The chamber allows circulation of fluid through the pumps, valves and up to the sample cell
assembly. The chamber also houses an RTD and a heater cartridge for temperature control.
Mar 2010
Fluid module
2-5
