Cabinetry

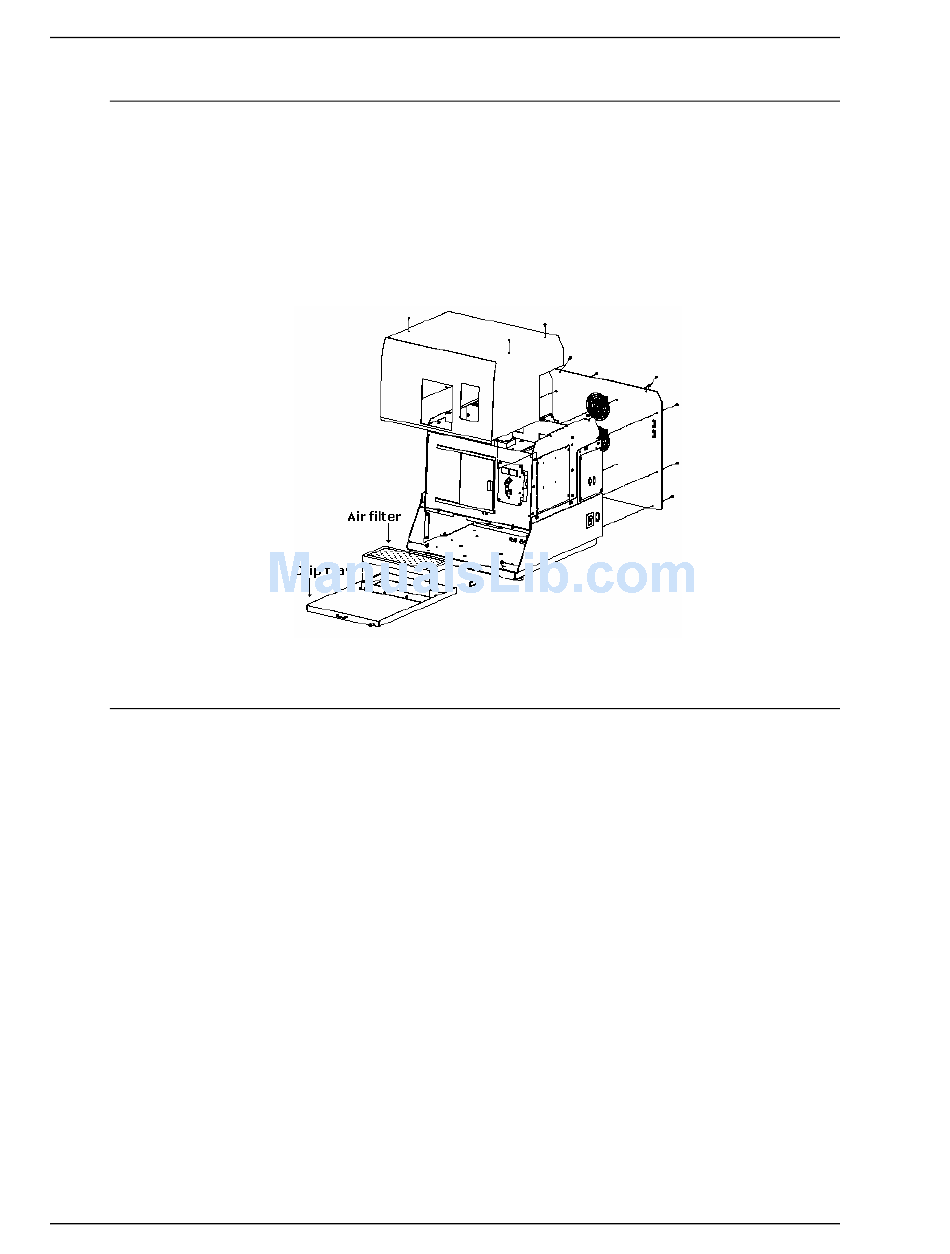

Drip Tray and Filter Assembly

A drip tray assembly (PN 512/25890/00) is located directly beneath the Fluid Control module.
The tray has a handle, which allows an operator to pull the tray assembly out of the instrument.
The tray is used for collection and removal of sample spills. There is a port in the front of the
tray to which overflow tubing is connected.
The tray contains a filter assembly (PN 512/27600/xx), which filters the incoming air used to
cool the instrument. There are three filters available depending on air pressure.

Cabinetry Serviceable items

• 511/60820/00 Assembly 24 volt fan (two of these)
• 512/27600/01 Filter, Air 10 PPI
• 512/27600/02 Filter, Air 25 PPI
• 512/27600/01 Filter, Air 45 PPI
• 003/51170/02 Magnetic switch
