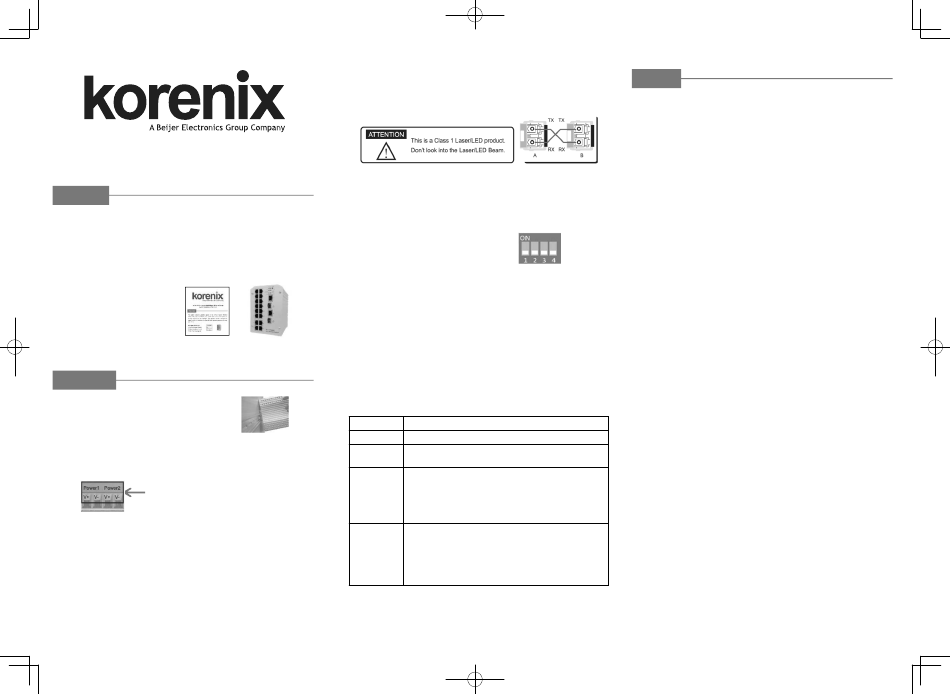

Industrial 16+2G Gigabit Ethernet Switch
JetNet 3018G
Quick Installation Guide V1.0
Overview
This quick installation guideline applies to the 16+2G Gigabit Ethernet
Switch. The latest introduction and product data sheet can be found in
Korenix website and the catalogue. This Ethernet switch is designed as
rugged surface in aluminum housing with wide operating temperature range
(-40~75°C).
Package Check List
JetNet Industrial Switch
Quick Installation Guide
DIN Rail Mounting kit
Installation
Mounting the unit
You can mount the DIN-rail chip on the rear of
JetNet Switch on the DIN rail
Power the unit and connect to network
1. Connect the PWR1/PWR2 and turn on the power supply. Then, the power
indicator – LED PWR1/PWR2 will turn on (Green on).
Accept 12-24 AWG wire. The switch provides
polarity reverse protection.
2. Connect the 10/100M Ethernet Port: Connect the network node to the
switch with 4-pair CAT5e UTP cable. The Fast Ethernet interface support
auto MDI/MDIX.
3. Connect the Gigabit TX of combo ports: Connect the network node to
Switch with 4-pair CAT5e UTP cable. The Gigabit TX interface support auto
MDI/MDIX as well.
4. Connects the SFP transceiver: Plug in SFP fiber transceiver. It is
recommended to use Korenix certificated SFP mini GBIC transceiver. Cross-
connect the transmit channel at each end to receive channel at the opposite
side end as illustrate in the figure below.
5. If you need to connect the Relay Output, please refer to the wiring method
introduction in the manual.
Relay Output
JetNet Switch can go through the dry relay output with DC 24V/1A current
forwarding ability for Gigabit port and power event alarm. It can be enabled by
4-pin DIP- Switch, and the default is off.
DIP-Switch #1: Flow Control for system (On: Enable / Off: Disable)
DIP-Switch #2: Broadcast Storm Control (On: Enable / Off: Disable)
DIP-Switch #3: Enable DO1 for power event monitoring
(On: Enable / Off: Disable)
DIP-Switch #4: Enable DO2 for Gigabit uplink event
monitoring
(On: Enable / Off: Disable
)
*Note: DO 1 monitors power 1 and power 2.
DO 2 monitors Gigabit port 17 and port 18 (RJ-45/SFP).
LED Indication
Indicators
Description
Power 1,2
Green On: Power is applying
Red On: Event occurred, relay alarm output conductors
Alarm
short.
Green On (Link): Ethernet port link up
Green Blinking (Activity): Port is transmitting and
Fast Ethernet
receiving the data
(# 1~#16)
Amber On (Full Duplex): Port link in full duplex mode
Amber Off (Half Duplex): Port link in half duplex mode
Green On (Link): Ethernet port link up
Gigabit
Green Blinking (Activity): Port is transmitting and
Ethernet
receiving the data
(RJ-45/SFP)
Amber On: Port link in 1000Mbps speed mode
(#17,#18)
Amber Off and Green Blinking: Port link in 100Mbps or
10Mbps speed mode.
Support
5 Years Warranty
Each of Korenix's product is designed, produced, and tested with high
industrial standard. Korenix warrants that the product(s) shall be free from
defects in materials and workmanship for a period of five (5) years from the
date of delivery provided that the product was properly installed and used.
This warranty is voided if defects, malfunctions or failures of the warranted
product are caused by damage resulting from force measure (such as floods,
fire, etc.), other external forces such as power disturbances, over spec power
input, or incorrect cabling; or the warranted product is misused, abused, or
operated, altered and repaired in an unauthorized or improper way.
Attention! To avoid system damage caused by sparks, please DO NOT
plug in power connector when power is on.
The product is in compliance with Directive 2002/95/EC and 2011/65/EU of
the European Parliament and of the Council of 27 January 2003 on the
restriction of the use of certain hazardous substances in electrical and
electronics equipment (RoHS Directives & RoHS 2.0)
Korenix Customer Service
KorenixCARE is Korenix Technology's global service center, where our
professional staffs are ready to answer your questions at any time.
Email address of Korenix Global Service Center : KoreCARE@korenix.com
