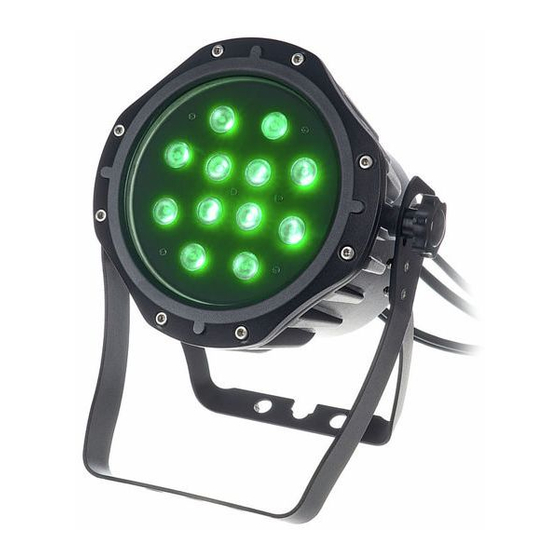

Outdoor Stage PAR
12 × 4W Quad IR RGBW,
12 × 3W Quad IR UV
LED PAR
user manual

Advertisement

Table of Contents
loading

Related Manuals for Stairville Outdoor Stage PAR 12x4W Quad IR RGBW

Summary of Contents for Stairville Outdoor Stage PAR 12x4W Quad IR RGBW

  • Page 1 Outdoor Stage PAR 12 × 4W Quad IR RGBW, 12 × 3W Quad IR UV LED PAR user manual...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 25.10.2016, ID: 387911, 387902...

  • Page 3: Table Of Contents

    Table of contents Table of contents General notes............................... 5 1.1 Further information........................... 6 1.2 Notational conventions........................7 1.3 Symbols and signal words....................... 8 Safety instructions..........................11 Features............................... 16 Installation..............................17 Starting up..............................21 Connections and controls........................24 Operating..............................27 7.1 Operating mode ‘Auto Run Mode’..................... 28 7.2 Operating mode ‘Manual’...
  • Page 4 Table of contents 7.6 Operating mode ‘DMX’ (12×3W Quad IR UV)................ 39 7.7 Operating mode ‘Slave’......................... 42 7.8 Remote control (12×4W Quad IR RGBW)................. 42 7.9 Remote control (12×3W Quad IR UV)..................45 Technical specifications........................47 Plug and connection assignments....................49 Troubleshooting............................

  • Page 5: General Notes

    General notes General notes This manual contains important instructions for the safe operation of the unit. Read and follow the safety instructions and all other instructions. Keep the manual for future reference. Make sure that it is available to all those using the device. If you sell the unit please make sure that the buyer also receives this manual.

  • Page 6: Further Information

    General notes 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly.

  • Page 7: Notational Conventions

    General notes 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. Displays Texts and values displayed on the device are marked by quotation marks and italics. Examples: ‘24ch’...

  • Page 8: Symbols And Signal Words

    General notes Instructions The individual steps of an instruction are numbered consecutively. The result of a step is indented and highlighted by an arrow. Example: Switch on the device. Press [Auto]. ð Automatic operation is started. Switch off the device. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual.
  • Page 9 General notes Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
  • Page 10 General notes Warning signs Type of danger Warning – suspended load. Warning – danger zone. LED PAR...

  • Page 11: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended to be used as an electronic illumination effect using LED technics. The device is designed for professional use and is not suitable for use in households. Use the device only as described in this user manual. Any other use or use under other operating con‐ ditions is considered to be improper and may result in personal injury or property damage.
  • Page 12 Safety instructions Safety DANGER! Danger for children Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit.
  • Page 13 Safety instructions DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. WARNING! Eye damage caused by high light intensity Never look directly into the light source.
  • Page 14 Safety instructions WARNING! Risk of burns The surface of the device can become very hot during operation. Do not touch the device with bare hands during operation, and after switching off wait for at least 15 minutes. NOTICE! Risk of fire Do not cover the device nor any ventilation slots.
  • Page 15 Safety instructions NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the user.

  • Page 16: Features

    Features Features Due to its sturdy and weather-proof housing made of die-cast aluminium, the Outdoor Stage PAR is especially suitable for outdoor use. The very bright UV or quad-colour LEDs make it particularly suitable for professional lighting tasks. LED configuration Outdoor Stage PAR 12×4W Quad IR RGBW with 12 Quad-Color LEDs –...

  • Page 17: Installation

    Installation Installation Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
  • Page 18 Installation NOTICE! Risk of overheating Always ensure sufficient ventilation. The ambient temperature must not exceed the limits stated in the chapter Tech‐ nical Specifications of the User Manual. NOTICE! Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand.
  • Page 19 Installation NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi‐ nary microphone cables. Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. Mounting options You can install the device standing or hanging upside down.
  • Page 20 Installation Please note that this device must not be connected to a dimmer. LED PAR...

  • Page 21: Starting Up

    Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. Outdoor Stage PAR 12 × 4W Quad IR RGBW, 12 × 3W Quad IR UV...
  • Page 22 Starting up Connections in DMX mode Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device. Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain.
  • Page 23 Starting up Connections in master/slave When you configure a group of devices in master/slave mode, the first unit will control the mode other units for an automatic, sound-activated, synchronized show. This function is ideal when you want to start a show immediately. Connect the DMX output of the master device to the DMX input of the first slave device.

  • Page 24: Connections And Controls

    Connections and controls Connections and controls LED PAR...
  • Page 25 Connections and controls 1 Two-piece bracket for hanging or installation and for securing the safety-rope. 2 Locking screws. 3 LEDs. 4 Infrared sensor. 5 [DMX IN] DMX input cable. 6 [Power In] Mains cable for the power supply of the device. 7 [Power Out] Power cord for the voltage supply of a connected device.
  • Page 26 Connections and controls 9 Display. 10 Control buttons [Mode]: Activates the main menu and toggles between menu items. [Setup]: Selects an option of the respective operating mode. [Up]: Increases the displayed value by one. [Down]: Decreases the displayed value by one. LED PAR...

  • Page 27: Operating

    Operating Operating Connect the device to the power supply to start operation. After a few seconds, the display indicates that a reset is in progress. The device is then ready for use. Press [Mode] to activate the main menu and select an operating mode. Use [Setup] to select further options.

  • Page 28: Operating Mode 'Auto Run Mode

    Operating 7.1 Operating mode ‘Auto Run Mode’ In automatic mode, all programmed shows are played sequentially in an endless loop. A preprogrammed automatic show can only be activated when the unit is operating in stand- alone mode or as master in a master / slave combination. This setting is only relevant if the device is not controlled via DMX.

  • Page 29: Operating Mode 'Manual' (Only 12×4W Quad Ir Rgbw)

    Operating 7.2 Operating mode ‘Manual’ (only 12×4W Quad IR RGBW) This operating mode can only be activated when the unit is operating in stand alone mode or as master in a master / slave combination. This setting is only relevant if the device is not con‐ trolled via DMX.
  • Page 30 Operating Settings for program 01 When you have selected programme 01, you can use [Setup] to access the settings. Now use [Up] and [Down] to select one of 15 static colour settings for all LEDs, see the following chart. Colour Display Cyan ‘00’...
  • Page 31 Operating Colour Display ‘10’ Green ‘11’ Blue ‘12’ Amber ‘13’ ‘14’ Blackout ‘15’ Settings for programmes When you have selected one of programmes 02 … 07 you can adjust the following settings: 02 … 07 After selecting the programme, press again [Setup] and adjust the programme speed with [Up] and [Down] in a range from ‘SP.01’...

  • Page 32: Operating Mode 'Static Colour' (12×4W Quad Ir Rgbw)

    Operating 7.3 Operating mode ‘Static Colour’ (12×4W Quad IR RGBW) This setting is only relevant if the device is working in Stand Alone mode and is not controlled via DMX. In this mode you have the option to select a solid colour for continuous operation and to set the flash frequency for all LEDs.

  • Page 33: Operating Mode 'Static Colour' (12×3W Quad Ir Uv)

    Operating 7.4 Operating mode ‘Static Colour’ (12×3W Quad IR UV) This setting is only relevant if the device is working in Stand Alone mode and is not controlled via DMX. In this mode you have the option to select a solid colour for continuous operation and to set the flash frequency for all LEDs.
  • Page 34 Operating Press [Mode], use [Up] and [Down] to select the menu option ‘DMX’ and confirm with [Setup]. Use [Up] and [Down] to assign a DMX address in the range from ‘d.001’ … ‘d.512’ to the device and confirm with [Setup]. Use [Up] and [Down] to select the desired DMX mode: Mode Display...
  • Page 35 Operating 7.5.1 Functions in 4-channel DMX mode Channel Value Function 0…255 Intensity red (0 % to 100 %) 0…255 Intensity green (0 % to 100 %) 0…255 Intensity blue (0 % to 100 %) 0…255 Intensity white (0 % to 100 %) 7.5.2 Functions in 6-channel DMX mode Channel Value...
  • Page 36 Operating Channel Value Function 0…255 Intensity blue (0 % to 100 %) 0…255 Intensity white (0 % to 100 %) 0…255 Stroboscope effect (0 % to 100 %) 7.5.3 Functions in 8-channel DMX mode Channel Value Function 0 … 255 Dimmer (0 % to 100 %) 0 …...
  • Page 37 Operating Channel Value Function Programme selection 0 … 35 No function 36 … 71 Programme 01 72 … 107 Programme 02 108 … 143 Programme 03 144 … 179 Programme 04 180 … 215 Programme 05 216 … 251 Programme 06 252 …...
  • Page 38 Operating Channel Value Function 34 … 50 Purple 51 … 67 Pink 68 … 84 Orange 85 … 101 Cold white 102 … 118 Light red 119 … 135 Light green 136 … 152 Light blue 153 … 169 Yellow 170 …...

  • Page 39: Operating Mode 'Dmx' (12×3W Quad Ir Uv)

    Operating Channel Value Function 0 … 255 Programme progress speed 19 … 255 Strobe effect 7.6 Operating mode ‘DMX’ (12×3W Quad IR UV) This setting is only relevant if the device is controlled via a DMX controller. Press [Mode], use [Up] and [Down] to select the menu option ‘DMX’ and confirm with [Setup].
  • Page 40 Operating Use [Up] and [Down] to select the desired DMX mode: Mode Display Highest possible DMX address 1-channel ‘1-ch’ 2-channel ‘2-ch’ 5-channel ‘5-ch’ Confirm twice with [Setup]. 7.6.1 Functions in 1-channel DMX mode Channel Value Function 0…255 Intensity UV light (0 % to 100 %) LED PAR...
  • Page 41 Operating 7.6.2 Functions in 2-channel DMX mode Channel Value Function 0…255 Intensity UV light (0 % to 100 %) 0…255 Stroboscope effect (0 % to 100 %) 7.6.3 Functions in 5-channel DMX mode Channel Value Function 0 … 255 Dimmer (0 % to 100 %) 0 …...

  • Page 42: Operating Mode 'Slave

    Operating 7.7 Operating mode ‘Slave’ This setting is only relevant if the device is working as Slave in a Master / Slave configuration and is not controlled via DMX. To activate the operating mode, repeatedly press [Mode] until the display shows ‘SLAv’ . 7.8 Remote control (12×4W Quad IR RGBW) If the device neither is working as Slave in a Master / Slave configuration nor is not controlled via DMX you can control it using the remote control.
  • Page 43 Operating Operating mode ‘Preprog‐ Press [PRO]. Use [+] and [–] to select a value between ‘Pr01’ and ‘Pr07’ . rammed automatic show’ In the ‘Preprogrammed automatic show’ mode, you can activate the strobe effect. To do so, press [STROBE] and then use [+] and [–] to select a value between ‘FS00’ (slow) and ‘FS99’ (fast).
  • Page 44 Operating Colour selection You can use the coloured buttons to directly select a colour for programmes ‘Pr01’ and ‘Pr09’ . The following assignment applies: Button Colour Button Colour Button Colour Cyan Bright red Purple Bright green Green Magenta Bright blue Blue Orange Yellow...

  • Page 45: Remote Control (12×3W Quad Ir Uv)

    Operating 7.9 Remote control (12×3W Quad IR UV) If the device neither is working as Slave in a Master / Slave configuration nor is not controlled via DMX you can control it using the remote control. Switching on / off Use [ON/OFF] to turn the device on or off.
  • Page 46 Operating Resetting to factory defaults To reset the device to factory default settings, press [OFF] and the successively [9], [8] and [7]. LED PAR...

  • Page 47: Technical Specifications

    Technical specifications Technical specifications Outdoor Stage Par 12×4W Quad IR Outdoor Stage Par 12×3W Quad IR UV RGBW Item no. 387902 387911 LED configuration: 12 × Quad IR RGBW LED, 4 W 12 × Quad IR UV LED, 3 W Number of DMX channels: 4, 6, 8 1, 2, 5...
  • Page 48 Technical specifications Outdoor Stage Par 12×4W Quad IR Outdoor Stage Par 12×3W Quad IR UV RGBW Dimensions (W × H × D) 184 mm × 184 mm × 170 mm Weight 3.5 kg LED PAR...

  • Page 49: Plug And Connection Assignments

    Plug and connection assignments Plug and connection assignments Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment so that a perfect light experience is guaranteed. Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or ‘just’...

  • Page 50: Troubleshooting

    Troubleshooting Troubleshooting NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi‐ nary microphone cables. Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. In the following we list a few common problems that may occur during operation.
  • Page 51 Troubleshooting Symptom Remedy The unit does not work, no Check the mains connection and the fuse. light. No response to the DMX con‐ 1. Check the DMX ports and cables for proper connection. troller. 2. Check the address settings and the DMX polarity. 3.

  • Page 52: Cleaning

    Cleaning Cleaning Optical lenses Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output. The frequency of cleaning depends on the operating environment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device.

  • Page 53: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 54 Notes LED PAR...
