Stairville CLB5 6P RGB WW Compact LED Bar User Manual

Led lighting set
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

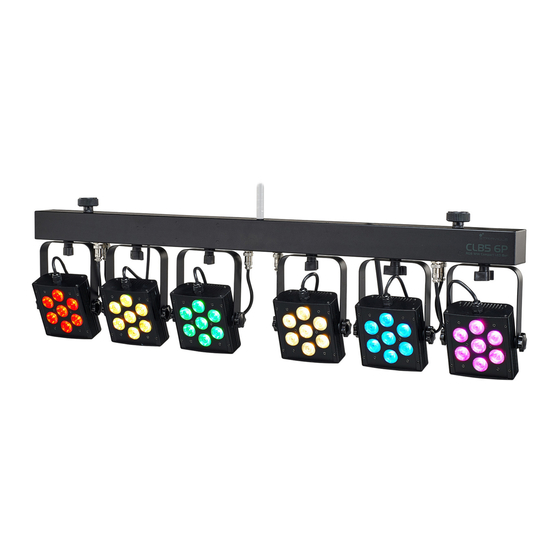

CLB5 6P RGB WW Compact LED Bar
LED Lighting Set

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLB5 6P RGB WW Compact LED Bar and is the answer not in the manual?

Questions and answers

Related Manuals for Stairville CLB5 6P RGB WW Compact LED Bar

Summary of Contents for Stairville CLB5 6P RGB WW Compact LED Bar

  • Page 1 CLB5 6P RGB WW Compact LED Bar LED Lighting Set...
  • Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 05.06.2024, ID: 460583 (V5)

  • Page 3: Table Of Contents

    7.7 Functions in 4-channel DMX mode................... 39 7.8 Functions in 6-channel DMX mode................... 40 7.9 Functions in 8-channel DMX mode................... 41 7.10 Functions in 24-channel DMX mode..................45 7.11 Functions in 26-channel DMX mode..................47 CLB5 6P RGB WW Compact LED Bar LED Lighting Set...
  • Page 4 Table of contents Technical specifications........................50 Plug and connection assignments....................52 Troubleshooting............................53 Cleaning............................... 55 Protecting the environment......................56 CLB5 6P RGB WW Compact LED Bar LED Lighting Set...
  • Page 5 CLB5 6P RGB WW Compact LED Bar LED Lighting Set...

  • Page 6: General Information

    1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document. CLB5 6P RGB WW Compact LED Bar LED Lighting Set...
  • Page 7 Warning signs Type of danger Warning – high-voltage. Warning – dangerous optical radiation. Warning – suspended load. CLB5 6P RGB WW Compact LED Bar LED Lighting Set...
  • Page 8 General information Warning signs Type of danger Warning – danger zone. CLB5 6P RGB WW Compact LED Bar LED Lighting Set...

  • Page 9: Safety Instructions

    Always dispose of packaging material properly when it is not in use. Never allow children to use the device without supervi‐ sion. Keep small parts away from children and make sure that the device does not shed any small parts (such knobs) that children could play with. CLB5 6P RGB WW Compact LED Bar LED Lighting Set...
  • Page 10 Never cover the device or the vents. Do not install the device in the immediate vicinity of other heat sources. Never operate the device in the immediate vicinity of naked flames. CLB5 6P RGB WW Compact LED Bar LED Lighting Set...
  • Page 11 Incorrectly inserted batteries may cause fires and destroy the device and the batteries. Observe the markings on the batteries and on the device. Ensure that proper polarity is observed when inserting batteries. CLB5 6P RGB WW Compact LED Bar LED Lighting Set...
  • Page 12 If individual LED spots are disconnected from the device during operation, the device can get damaged. Operate the device only when all LED spots are connected. Always disconnect the device from the mains before removing the LED spots. CLB5 6P RGB WW Compact LED Bar LED Lighting Set...

  • Page 13: Features

    For technological reasons, the light output of LEDs decreases over their lifetime. This effect increases with higher operating temperature. You can extend the service life of the illuminants by providing adequate ventilation and operating the LEDs with the lowest possible brightness. CLB5 6P RGB WW Compact LED Bar LED Lighting Set...

  • Page 14: Installation

    When installing and operating, make sure to follow the standards and regulations that apply in your country. Always secure the device with a secondary safety attachment, such as a safety cable or a safety chain. CLB5 6P RGB WW Compact LED Bar LED Lighting Set...
  • Page 15 Make sure that illuminated surfaces are more than 2 m away. Do not operate the device in ambient temperatures above 40 °C. Always ensure sufficient ventilation at the operating location. CLB5 6P RGB WW Compact LED Bar LED Lighting Set...
  • Page 16 Do not connect the DMX input and output to audio devices, e.g. mixers or ampli‐ fiers. Use special DMX cables for the wiring instead of normal microphone cables. Please note that this device must not be connected to a dimmer. CLB5 6P RGB WW Compact LED Bar LED Lighting Set...
  • Page 17 Locking screw for fixing the spots to the T-bar and for their horizontal orientation (dis‐ persion direction) Electrical connection of the spot at the T-bar (pre-mounted) 35 mm flange for mounting the T-bar on a stand (available as an option) CLB5 6P RGB WW Compact LED Bar LED Lighting Set...
  • Page 18 Batteries can leak and cause permanent damage to the device. Take the batteries out of the device if it is not going to be used for an extended period of time. CLB5 6P RGB WW Compact LED Bar LED Lighting Set...

  • Page 19: Starting Up

    This equipment uses a frequency range that is free of charge and registration within the European Union. For more information, please visit: http://www.thomann.de. Make sure that no metal objects are located between transmitter and receiver. Avoid interference by other radio and in-ear systems. CLB5 6P RGB WW Compact LED Bar LED Lighting Set...
  • Page 20 Maybe the DMX controller is not switched on or there is a cabling error. When the dot after the last digit of the display flashes, the device receives a valid DMX signal. CLB5 6P RGB WW Compact LED Bar LED Lighting Set...
  • Page 21 Connect the DMX output of the master device to the DMX input of the first slave device. Then connect the DMX output of the first slave device to the DMX input of the second slave device and so on. CLB5 6P RGB WW Compact LED Bar LED Lighting Set...

  • Page 22: Connections And Controls

    Connections and controls Connections and controls ö & CLB5 6P RGB WW Compact LED Bar LED Lighting Set...
  • Page 23 8 [DMX In] | DMX input, designed as XLR panel plug, 3-pin 9 [DMX Out] | DMX output, designed as XLR panel socket, 3-pin 10 [Power Out] | Lockable output sockets (Power Twist IP65) for the power supply of further devices CLB5 6P RGB WW Compact LED Bar LED Lighting Set...
  • Page 24 10 [Dimming] | Activates the dimming function for fixed colours. Set the value for each fixed colour using [+] and [–]. 11 [R], [G], [B], [A], [W] | Buttons for selecting the colour shade in dimmer mode. CLB5 6P RGB WW Compact LED Bar LED Lighting Set...

  • Page 25: Operating

    Some devices functions can also be controlled using an optional wireless (item no. 370552) or cable-connected (item no.279058) foot switch. The following table shows the assignment of the individual functions. CLB5 6P RGB WW Compact LED Bar LED Lighting Set...

  • Page 26: Ir Remote Control

    The device can only be controlled via the IR remote control if it is not in “DMX” or “Master/ slave” mode. Switching on and off Use [ON/OFF] to switch the device on and off. “Automatic” mode Press [AUTO]. Playback of programmes ‘Pr.01’ to ‘Pr.38’ starts automatically CLB5 6P RGB WW Compact LED Bar LED Lighting Set...
  • Page 27 Press [Dimming] to adjust the brightness of the individual primary colours. Press [R] (red), [G] (green) or [B] (blue) or [W] (white) and then use [+] and [–] to select a value between 0 and 255. CLB5 6P RGB WW Compact LED Bar LED Lighting Set...

  • Page 28: Operation On The Device

    Press [Mode] to activate the main menu and select an operating mode. Use [Setup] to select further options. Use [Up] and [Down] to change the currently displayed value. When the dis‐ play shows the desired value, press [Mode]. CLB5 6P RGB WW Compact LED Bar LED Lighting Set...
  • Page 29 For ‘Pr.01’ , you can choose from 14 colours, white or blackout. Press [Setup]. Now you can use [Up] and [Down] to select one of the colours. Confirm with [Setup]. CLB5 6P RGB WW Compact LED Bar LED Lighting Set...
  • Page 30 [Down] to select a value between ‘SP.01’ (slow) and ‘SP.FL’ (fast). Confirm with [Setup]. Press [Setup] again to adjust the strobe frequency. The display shows ‘FS.xx’ . Now use [Up] and [Down] to select a value between ‘FS.00’ (slow) and ‘FS.99’ (fast). CLB5 6P RGB WW Compact LED Bar LED Lighting Set...
  • Page 31 Press [Setup]. Now use [Up] and [Down] to select one of the following DMX operating modes: ‘4-CH’ (four channels) ‘6-ch’ (six channels) ‘8-ch’ (eight channels) ‘24CH’ (twenty-four channels) ‘26CH’ (twenty-six channels) CLB5 6P RGB WW Compact LED Bar LED Lighting Set...
  • Page 32 Press [Setup] and use [Up] and [Down] to adjust the sensitivity for the built-in microphone between ‘SO.00’ (low sensitivity) and ‘SO.31’ (high sensitivity). Press [Setup] again and use [Up] and [Down] to select one of the programmed shows ‘SU.01’ to ‘SU.31’ . CLB5 6P RGB WW Compact LED Bar LED Lighting Set...
  • Page 33 [Setup] to change the colour. Use [Up] and [Down] to adjust the intensity of the colour: Display Meaning ‘r.000’ … ‘r.255’ ‘G.000’ … ‘G.255’ Green ‘b.000’ … ‘b.255’ Blue ‘U.000’ … ‘U.255’ White CLB5 6P RGB WW Compact LED Bar LED Lighting Set...
  • Page 34 In mains operation, turn the main switch on the underside of the wireless foot switch to [Off]. Otherwise, the wireless foot switch operates in battery mode even though a power supply is connected, and the inserted battery discharges accordingly. CLB5 6P RGB WW Compact LED Bar LED Lighting Set...
  • Page 35 The figure below provides a schematic view of the adjustable dimmer curves. Depending on the set DMX value (1) the device lights up with a brightness (2) of between 0% and 100%. Confirm the selection with [Setup]. Press [Mode]. CLB5 6P RGB WW Compact LED Bar LED Lighting Set...
  • Page 36 Confirm the selection with [Setup]. Firmware version Press [Mode] repeatedly until the display shows ‘InFo’ . Press [Setup], the display shows ‘Ver’ . Press [Setup] to view the firmware version of the device. CLB5 6P RGB WW Compact LED Bar LED Lighting Set...

  • Page 37: Menu Overview

    Operating 7.6 Menu overview CLB5 6P RGB WW Compact LED Bar LED Lighting Set...
  • Page 38 Operating CLB5 6P RGB WW Compact LED Bar LED Lighting Set...

  • Page 39: Functions In 4-Channel Dmx Mode

    Green intensity (0% to 100%) for all LEDs 0 … 255 Blue intensity (0% to 100%) for all LEDs 0 … 255 White intensity (0% to 100%) for all LEDs CLB5 6P RGB WW Compact LED Bar LED Lighting Set...

  • Page 40: Functions In 6-Channel Dmx Mode

    Green intensity (0% to 100%) for all LEDs 0 … 255 Blue intensity (0% to 100%) for all LEDs 0 … 255 White intensity (0% to 100%) for all LEDs 0 … 255 Strobe effect, increasing speed CLB5 6P RGB WW Compact LED Bar LED Lighting Set...

  • Page 41: Functions In 8-Channel Dmx Mode

    Pre-programmed automatic show 04 24 … 29 Pre-programmed automatic show 05 30 … 35 Pre-programmed automatic show 06 36 … 41 Pre-programmed automatic show 07 42 … 47 Pre-programmed automatic show 08 CLB5 6P RGB WW Compact LED Bar LED Lighting Set...
  • Page 42 Pre-programmed automatic show 20 120 … 125 Pre-programmed automatic show 21 126 … 131 Pre-programmed automatic show 22 132 … 137 Pre-programmed automatic show 23 138 … 143 Pre-programmed automatic show 24 CLB5 6P RGB WW Compact LED Bar LED Lighting Set...
  • Page 43 Pre-programmed automatic show 36 216 … 221 Pre-programmed automatic show 37 222 … 227 Pre-programmed automatic show 38 228 … 255 Sound-controlled show Function depending on setting of channel 6 CLB5 6P RGB WW Compact LED Bar LED Lighting Set...
  • Page 44 R: 255; G: 255; B: 0; W: 80; 180…194 R: 255; G: 0; B: 0; W: 200; 195…209 R: 0; G: 255; B: 0; W: 200; 210…224 R: 0; G: 0; B: 255; W: 200; CLB5 6P RGB WW Compact LED Bar LED Lighting Set...

  • Page 45: Functions In 24-Channel Dmx Mode

    Red intensity (0% to 100%) for all LEDs of spot 1 0…255 Green intensity (0% to 100%) for all LEDs of spot 1 0…255 Blue intensity (0% to 100%) for all LEDs of spot 1 CLB5 6P RGB WW Compact LED Bar LED Lighting Set...
  • Page 46 Red intensity (0% to 100%) for all LEDs of spot 5 0…255 Green intensity (0% to 100%) for all LEDs of spot 5 0…255 Blue intensity (0% to 100%) for all LEDs of spot 5 CLB5 6P RGB WW Compact LED Bar LED Lighting Set...

  • Page 47: Functions In 26-Channel Dmx Mode

    Blue intensity (0% to 100%) for all LEDs of spot 1 0…255 White intensity (0% to 100%) for all LEDs of spot 1 0…255 Red intensity (0% to 100%) for all LEDs of spot 2 CLB5 6P RGB WW Compact LED Bar LED Lighting Set...
  • Page 48 Blue intensity (0% to 100%) for all LEDs of spot 5 0…255 White intensity (0% to 100%) for all LEDs of spot 5 0…255 Red intensity (0% to 100%) for all LEDs of spot 6 CLB5 6P RGB WW Compact LED Bar LED Lighting Set...
  • Page 49 Green intensity (0% to 100%) for all LEDs of spot 6 0…255 Blue intensity (0% to 100%) for all LEDs of spot 6 0…255 White intensity (0% to 100%) for all LEDs of spot 6 0…255 Strobe effect, increasing speed CLB5 6P RGB WW Compact LED Bar LED Lighting Set...

  • Page 50: Technical Specifications

    Power supply for 2 × lockable output socket (Power further devices Twist) Combined output current, max.: 6 A DMX control 1 × XLR panel socket, 3-pin Power consumption approx. 120 W CLB5 6P RGB WW Compact LED Bar LED Lighting Set...
  • Page 51 984 mm × 68 mm × 240 mm Weight 7.8 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20%…80% (non-condensing) Further information Controller included Remote control Stand included Case/bag included CLB5 6P RGB WW Compact LED Bar LED Lighting Set...

  • Page 52: Plug And Connection Assignments

    The unit offers a 3-pin XLR socket for DMX output and a 3-pin XLR plug for DMX input. Please refer to the drawing and table below for the pin assignment of a suitable XLR plug. Configuration Ground, shielding Signal inverted (DMX–, ‘cold signal’) Signal (DMX+, ‘hot signal’) CLB5 6P RGB WW Compact LED Bar LED Lighting Set...

  • Page 53: Troubleshooting

    Use special DMX cables for the wiring instead of normal microphone cables. In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting: CLB5 6P RGB WW Compact LED Bar LED Lighting Set...
  • Page 54 DMX interface circuit. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. CLB5 6P RGB WW Compact LED Bar LED Lighting Set...

  • Page 55: Cleaning

    Clean with a soft cloth using our lamp and lens cleaner (item no. 280122). Always dry the parts carefully. CLB5 6P RGB WW Compact LED Bar LED Lighting Set...

  • Page 56: Protecting The Environment

    Dispose the built-in lithium batteries together with the device. Check for an appropriate collection facility. Dispose of the batteries and rechargeable batteries at relevant collection points or through your local waste facility. CLB5 6P RGB WW Compact LED Bar LED Lighting Set...
  • Page 57 Repairing a device or passing it on to another user is an ecologically valuable alternative to disposal. If your old device contains personal data, delete those data before disposing of it. CLB5 6P RGB WW Compact LED Bar LED Lighting Set...
  • Page 58 Notes CLB5 6P RGB WW Compact LED Bar LED Lighting Set...
  • Page 60 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
