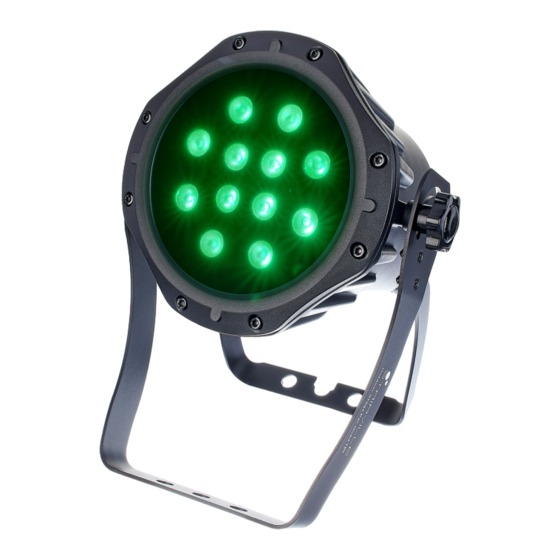

Outdoor Stage PAR Quad TR1
LED PAR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAR Quad TR1 and is the answer not in the manual?

Questions and answers

Related Manuals for Stairville PAR Quad TR1

Summary of Contents for Stairville PAR Quad TR1

  • Page 1 Outdoor Stage PAR Quad TR1 LED PAR...
  • Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 24.06.2022, ID: 515364, 518078 (V2)

  • Page 3: Table Of Contents

    7.2 Menu overview..........................43 7.3 Functions in 4-channel DMX mode................... 44 7.4 Functions in 6-channel DMX mode................... 45 7.5 Functions in 9-channel DMX mode................... 46 Technical specifications........................51 Plug and connection assignments....................54 Troubleshooting............................55 Outdoor Stage PAR Quad TR1 LED PAR...
  • Page 4 Table of contents Cleaning............................... 57 Protecting the environment......................58 Outdoor Stage PAR Quad TR1 LED PAR...
  • Page 5 Outdoor Stage PAR Quad TR1 LED PAR...

  • Page 6: General Information

    Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. Outdoor Stage PAR Quad TR1 LED PAR...

  • Page 7: Further Information

    Personal consultation For personal consultation please contact our technical hotline. If you have any problems with the device the customer service will Service gladly assist you. 1.2 Notational conventions This manual uses the following notational conventions: Outdoor Stage PAR Quad TR1 LED PAR...

  • Page 8: Symbols And Signal Words

    ð Automatic operation is started. Switch off the device. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. Outdoor Stage PAR Quad TR1 LED PAR...
  • Page 9 Warning signs Type of danger Warning – high-voltage. Warning – hot surface. Warning – dangerous optical radiation. Outdoor Stage PAR Quad TR1 LED PAR...
  • Page 10 General information Warning signs Type of danger Warning – suspended load. Warning – danger zone. Outdoor Stage PAR Quad TR1 LED PAR...

  • Page 11: Safety Instructions

    Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and choke! Never let children unattended use electrical devices. Outdoor Stage PAR Quad TR1 LED PAR...
  • Page 12 15 minutes. NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. Outdoor Stage PAR Quad TR1 LED PAR...
  • Page 13 NOTICE! Possible damage by leaking batteries Leaking batteries can cause permanent damage to the device. Take batteries out of the device if it is not going to be used for a longer period. Outdoor Stage PAR Quad TR1 LED PAR...

  • Page 14: Features

    Features Features The Outdoor Stage Par Quad TR1 is due to its sturdy and weather-proof housing made of die- cast aluminium especially suitable for outdoor use. With its 12 LEDs, it is particularly suitable for ambient lighting or open-air stages.
  • Page 15 (resistance to changing ambient conditions as well as against the effects of sun‐ light and UV rays). The seals and screw connections of the equipment must be checked regularly to ensure a fault-free operation. In cases of doubt, consult a specialist workshop in due time. Outdoor Stage PAR Quad TR1 LED PAR...

  • Page 16: Installation

    NOTICE! Risk of overheating Always ensure sufficient ventilation. The ambient temperature must not exceed the limits stated in the chapter Tech‐ nical Specifications of the User Manual. Outdoor Stage PAR Quad TR1 LED PAR...
  • Page 17 Always work from a stable platform whenever installing, moving or servicing the unit. In doing so, the area underneath the unit must be cordoned off. The safety cable must be attached to the safety eyelet. Outdoor Stage PAR Quad TR1 LED PAR...
  • Page 18 Installation Please note that this device must not be connected to a dimmer. Outdoor Stage PAR Quad TR1 LED PAR...

  • Page 19: Starting Up

    Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain is terminated with a resistor (110 Ω, ¼ W). Outdoor Stage PAR Quad TR1 LED PAR...
  • Page 20 Slide the battery holder back into the remote until it clicks into place. When shipping, the battery is already installed in the remote and protected against discharge by a transparent plastic foil. Remove the plastic foil prior to first use. Outdoor Stage PAR Quad TR1 LED PAR...

  • Page 21: Connections And Controls

    Connections and controls Connections and controls ö & MODE DOWN Outdoor Stage PAR Quad TR1 LED PAR...
  • Page 22 Increases the displayed value by one. [DOWN] Decreases the displayed value by one. 6 Safety cable eyelet 7 Pressure compensation element 8 [DMX In] DMX input, designed as 3-pin XLR panel plug (IP65) Outdoor Stage PAR Quad TR1 LED PAR...
  • Page 23 DMX output, designed as 3-pin XLR panel socket (IP65) 10 [Power In] Input socket (Power Twist TR1) for powering the device 11 [Power Out] Output socket (Power Twist TR1) for powering further devices Outdoor Stage PAR Quad TR1 LED PAR...
  • Page 24 Infrared remote control (item no. 354223, optionally avail‐ Since the universal remote control can be used for several device types, some buttons able) may not be assigned and therefore have no function. & ö Outdoor Stage PAR Quad TR1 LED PAR...
  • Page 25 Activates the setting mode for the programme speed. Adjust the speed using [+] and [–]. 6 [STROBE] Activates the setting mode for the Strobe speed. Adjust the speed using [+] and [–]. 7 [+] Increases the set value. 8 [–] Decreases the set value. Outdoor Stage PAR Quad TR1 LED PAR...
  • Page 26 Activates the dimming function for basic colours. Set the value for each basic colour using [+] and [–]. 10 [0 … 9] Numeric buttons for direct selection of a basic colour. 11 [R], [G], [B], [A], [W] Buttons to select the colour shade in dimmer mode. Outdoor Stage PAR Quad TR1 LED PAR...

  • Page 27: Operating

    Press [UP] or [DOWN] to change the respectively indicated value. ð The unit instantly applies the displayed value, you don't need to push a button for confirmation. To exit a menu item without making changes, press [MODE]. Outdoor Stage PAR Quad TR1 LED PAR...
  • Page 28 To exit the menu item without making changes, press [MODE]. Make sure that this number matches the configuration of your DMX controller. The following table shows the highest possible DMX address for the various DMX modes. Outdoor Stage PAR Quad TR1 LED PAR...
  • Page 29 7.1.3 Operating mode ‘Slave’ In this mode, the device follows exactly the operation of the master that it is connected to. This setting is only relevant if the device is not controlled via DMX. Outdoor Stage PAR Quad TR1 LED PAR...
  • Page 30 Press repeatedly [MODE] and select the menu item ‘Auto’ . Confirm the selection with [SET] and use [UP] or [DOWN] to choose between ‘Yes’ (Auto mode on) and ‘No’ (Auto mode off). To exit the menu item without making changes, press [MODE]. Outdoor Stage PAR Quad TR1 LED PAR...
  • Page 31 When you have selected programme ‘01’ , you can use [SET] and use [UP] or [DOWN] to select the menu item ‘Strobe’ . Press [SET] and use [UP] or [DOWN] to set the flash frequency of the strobe effect in a range from ‘00’ … ‘99’ (slow…fast). Outdoor Stage PAR Quad TR1 LED PAR...
  • Page 32 Use [UP] or [DOWN] to select one of five memory locations for the user programme ( ‘01’ … ‘05’ ) and confirm the selection with [SET]. To exit the menu item without making changes, press [MODE]. Outdoor Stage PAR Quad TR1 LED PAR...
  • Page 33 Strobe effect from 0 to 99 ‘Fade Time’ ‘00s…20s’ Fade time from 0 seconds to 20 seconds ‘Wait Time’ ‘00.0s…40.0s’ Wait time from 0 seconds to 40 seconds To exit the menu item without making changes, press [MODE]. Outdoor Stage PAR Quad TR1 LED PAR...
  • Page 34 Program’ and confirm the selection with [SET]. Use [UP] or [DOWN] to choose between ‘Yes’ (play selected user programme) and ‘No’ (do not play selected user programme). To exit the menu item without making changes, press [MODE]. Outdoor Stage PAR Quad TR1 LED PAR...
  • Page 35 Dimmer intensity green from 0 to 255 ‘ Blue’ ‘000…255’ Dimmer intensity blue from 0 to 255 ‘White’ ‘000…255’ Dimmer intensity white from 0 to 255 To exit the menu item without making changes, press [MODE]. Outdoor Stage PAR Quad TR1 LED PAR...
  • Page 36 ‘S-Type’ ) and confirm the selection with [SET]. Display Description ‘linear’ Linear course ‘Square Law’ Exponential course ‘Inv Square Law’ Logarithmic course ‘S-Type’ S-curve shaped course To exit the menu item without making changes, press [MODE]. Outdoor Stage PAR Quad TR1 LED PAR...
  • Page 37 ‘Display’ and confirm the selection with [SET]. Use [UP] or [DOWN] to choose between ‘Normal’ (display unturned) and ‘Inverted’ (dis‐ play turned by 180°). To exit the menu item without making changes, press [MODE]. Outdoor Stage PAR Quad TR1 LED PAR...
  • Page 38 Confirm the selection with [SET] and use [UP] or [DOWN] to select the menu item ‘PWM Frequency’ and confirm the selection with [SET]. Use [UP] or [DOWN] to choose between ‘12K’ , ‘6K’ , ‘3K’ or ‘1K’ . To exit the menu item without making changes, press [MODE]. Outdoor Stage PAR Quad TR1 LED PAR...
  • Page 39 ‘Off’ Spotlight turns off. ‘Hold’ Last DMX value is being held. ‘Dimmer’ Device switches to dimmer mode. ‘Program’ Device switches to auto mode. To exit the menu item without making changes, press [MODE]. Outdoor Stage PAR Quad TR1 LED PAR...
  • Page 40 Use [UP] or [DOWN] to choose between ‘On’ (display permanently on) and ‘Off’ (display turns off after a few seconds in case of inactivity). To exit the menu item without making changes, press [MODE]. Outdoor Stage PAR Quad TR1 LED PAR...
  • Page 41 ‘Factory’ and confirm the selection with [SET]. Use [UP] or [DOWN] to choose between ‘Yes’ (reset to factory defaults) und ‘No’ (cancel reset). To exit the menu item without making changes, press [MODE]. Outdoor Stage PAR Quad TR1 LED PAR...
  • Page 42 To exit the menu item without making changes, press [MODE]. To reset the operating hours and the LED runtime, hold down [SET] in the ‘Information’ menu item for five seconds and press [UP] or [DOWN] repeatedly until the display shows ‘0088’ . Outdoor Stage PAR Quad TR1 LED PAR...

  • Page 43: Menu Overview

    Channels 4-ch Smooth 6-ch Display Normal 9-ch Speed Blue Inverted Green Blue Strobe White White Strobe Dmx Fail Fade Time Hold Dimmer Program Wait Time 00.0 Dmx Sync 40.0 Lock Send Program Factory Outdoor Stage PAR Quad TR1 LED PAR...

  • Page 44: Functions In 4-Channel Dmx Mode

    Function Intensity red (0 % to 100 %) 0…255 Intensity green (0 % to 100 %) 0…255 0…255 Intensity blue (0 % to 100 %) 0…255 Intensity white (0 % to 100 %) Outdoor Stage PAR Quad TR1 LED PAR...

  • Page 45: Functions In 6-Channel Dmx Mode

    Intensity green (0 % to 100 %) 0…255 Intensity blue (0 % to 100 %) 0…255 Intensity white (0 % to 100 %) 0…10 No function 11…255 Stroboscope effect (0 % to 100 %), not for user programmes 01…05 Outdoor Stage PAR Quad TR1 LED PAR...

  • Page 46: Functions In 9-Channel Dmx Mode

    Red (255), green (125), blue (000), white (000) 40…45 Red (255), green (170), blue (000), white (000) 46…51 Red (255), green (210), blue (000), white (000) 52…57 Red (255), green (255), blue (000), white (000) Outdoor Stage PAR Quad TR1 LED PAR...
  • Page 47 Red (000), green (000), blue (255), white (000) 136…141 Red (020), green (000), blue (255), white (000) 142…147 Red (050), green (000), blue (255), white (000) 148…153 Red (080), green (000), blue (255), white (000) Outdoor Stage PAR Quad TR1 LED PAR...
  • Page 48 Red (000), green (120), blue (000), white (255) 232…237 Red (000), green (000), blue (255), white (255) 238…243 Red (000), green (000), blue (100), white (255) 244…255 Red (000), green (000), blue (050), white (255) Outdoor Stage PAR Quad TR1 LED PAR...
  • Page 49 49…59 Programme 05 60…70 Programme 06 Programme 07 71…81 Programme 08 82…92 93…103 Programme 09 104…114 Programme 10 115…125 Programme 11 126…136 Programme 12 137…147 Programme 13 148…158 Programme 14 159…169 Programme 15 Outdoor Stage PAR Quad TR1 LED PAR...
  • Page 50 225…235 User programme 04 236…255 User programme 05 0…255 Programme running speed (programme 02…programme 17), increasing speed 0…10 No function Stroboscope effect (0 % to 100 %), not for user programmes 01…05 11…255 Outdoor Stage PAR Quad TR1 LED PAR...

  • Page 51: Technical Specifications

    Output connections Voltage supply further Lockable output socket devices Power Twist TR1 IP65 DMX control XLR panel socket (IP65), 3-pin Power consumption max. 50 W Operating supply voltage 100 - 240 V 50/60 Hz Outdoor Stage PAR Quad TR1 LED PAR...
  • Page 52 Mounting options hanging Dimensions (W × H × D) 246 mm × 300 mm × 200 mm Weight 3.5 kg Ambient conditions Temperature range 0 °C…40 °C relative humidity 20 %…80 % (non-condensing) Outdoor Stage PAR Quad TR1 LED PAR...
  • Page 53 Outdoor housing shape Studio housing Colour mixture RGBW LED type x-in-1 Floor housing Fanless Remote control Optionally available (item no. 354223) Wireless DMX Housing colour black (item no. 518078) White (item no. 515364) Outdoor Stage PAR Quad TR1 LED PAR...

  • Page 54: Plug And Connection Assignments

    The unit offers a 3-pin XLR socket for DMX output and a 3-pin XLR plug for DMX input. Please refer to the drawing and table below for the pin assignment of a suitable XLR plug. Configuration Ground, shielding Signal inverted (DMX–, ‘cold signal’) Signal (DMX+, ‘hot signal’) Outdoor Stage PAR Quad TR1 LED PAR...

  • Page 55: Troubleshooting

    Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting: Outdoor Stage PAR Quad TR1 LED PAR...
  • Page 56 DMX interface circuits. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. Outdoor Stage PAR Quad TR1 LED PAR...
  • Page 57 Clean with a soft cloth using our lamp and lens cleaner (item no. 280122). Always dry the parts carefully. Outdoor Stage PAR Quad TR1 LED PAR...
  • Page 58 Protect used lithium batteries against short circuits, for example by covering the poles with adhesive tape. Permanently built-in lithium batteries must be disposed of together with the device. Please inquire about an appropriate collection point. Outdoor Stage PAR Quad TR1 LED PAR...
  • Page 59 Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. Outdoor Stage PAR Quad TR1 LED PAR...
  • Page 60 Notes Outdoor Stage PAR Quad TR1 LED PAR...
  • Page 61 Notes Outdoor Stage PAR Quad TR1 LED PAR...
  • Page 62 Notes Outdoor Stage PAR Quad TR1 LED PAR...
