Stairville Crazy Par Bundle4 8x5W RGBWAP User Manual

Led lighting set
Hide thumbs
Table of Contents

Advertisement

Quick Links

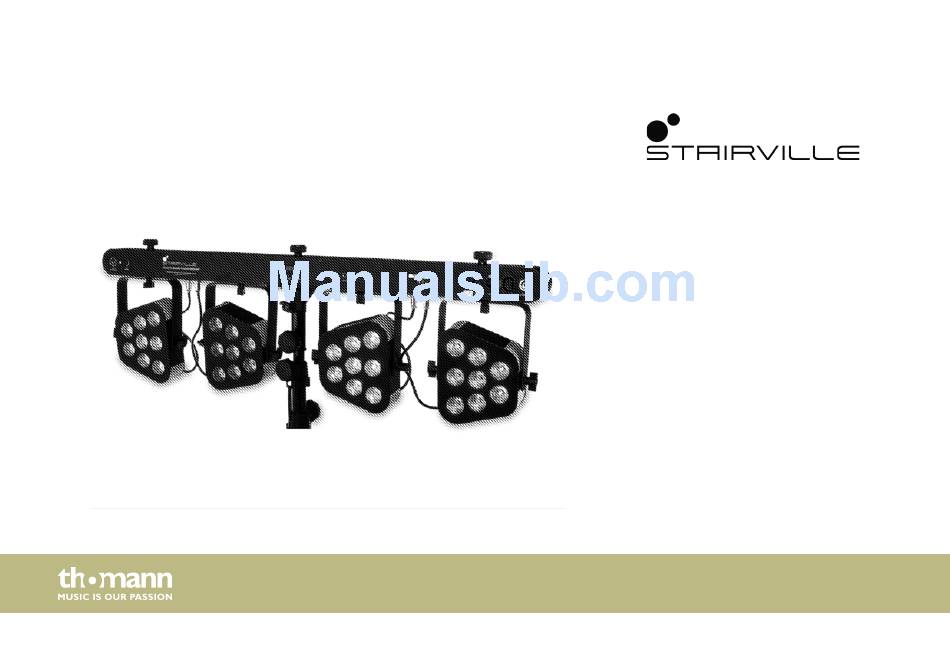

Crazy Par Bundle
4 8x5W RGBWAP
LED lighting set
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Crazy Par Bundle4 8x5W RGBWAP and is the answer not in the manual?

Questions and answers

Related Manuals for Stairville Crazy Par Bundle4 8x5W RGBWAP

Summary of Contents for Stairville Crazy Par Bundle4 8x5W RGBWAP

  • Page 1 Crazy Par Bundle 4 8x5W RGBWAP LED lighting set user manual...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 02.08.2018, ID: 431677...

  • Page 3: Table Of Contents

    Starting up..............................19 Connections and controls........................23 Operating..............................31 7.1 Starting the device........................... 31 7.2 Main menu............................31 7.3 Menu overview..........................40 7.4 Functions in 6-channel DMX mode................... 41 7.5 Functions in 8-channel DMX mode................... 42 Crazy Par Bundle4 8x5W RGBWAP...
  • Page 4 Table of contents 7.6 Functions in 10-channel DMX mode..................43 7.7 Functions in 24-channel DMX mode..................49 Technical specifications........................51 Troubleshooting............................53 Plug and connection assignments....................55 Cleaning............................... 56 Protecting the environment......................57 LED lighting set...

  • Page 5: General Notes

    If you sell the unit please make sure that the buyer also receives this manual. Our products are subject to a process of continuous development. Thus, they are subject to change. Crazy Par Bundle4 8x5W RGBWAP...

  • Page 6: Further Information

    General notes 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly.

  • Page 7: Notational Conventions

    Texts and values displayed on the device are marked by quotation marks and italics. Examples: ‘24ch’ , ‘OFF’ . 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. Crazy Par Bundle4 8x5W RGBWAP...
  • Page 8 General notes Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.

  • Page 9: Safety Instructions

    Extend the life of the device by regular breaks in operation and avoid switching it on and off frequently. This device is not suitable for continuous use. Crazy Par Bundle4 8x5W RGBWAP...
  • Page 10 Safety instructions Safety DANGER! Danger for children Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit.
  • Page 11 Eye damage caused by high light intensity Never look directly into the light source. WARNING! Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights. Crazy Par Bundle4 8x5W RGBWAP...
  • Page 12 Safety instructions NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture.
  • Page 13 Failure to do so could result in damage to the device and possibly injure the user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric shock or fire. Crazy Par Bundle4 8x5W RGBWAP...

  • Page 14: Features

    Features Features The LED light set offers an ideal combination of white and coloured light for parallel illumina‐ tion of stage and dance floor in various shades. four LED spots, each with eight 5 W LEDs (RGBWAP), pre-mounted on T-bar Control via DMX (four different modes), via buttons and display on the unit as well as infrared remote control (supplied) Preprogrammed automatic shows...

  • Page 15: Installation

    NOTICE! Risk of overheating The distance between light output and the illuminated surface must be more than 1.5 m (19.7in). Provide sufficient ventilation. The ambient temperature must always be below 40 °C (104 °F). Crazy Par Bundle4 8x5W RGBWAP...
  • Page 16 Installation NOTICE! Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand. NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi‐...
  • Page 17 Installation Pre-mounted spots The four spots are pre-mounted on the T-bar. Crazy Par Bundle4 8x5W RGBWAP...
  • Page 18 Installation Locking screw for fixing the spotlight's inclination angle Locking screw for fixing the spots on the T bar and the horizontal alignment (beam direction) Electrical connection of the spots on the T bar (pre-assembled) Flange 36 mm to mount the T-bar on a tripod LED lighting set...

  • Page 19: Starting Up

    Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. Crazy Par Bundle4 8x5W RGBWAP...
  • Page 20 Starting up Connections in DMX mode Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device. Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain.
  • Page 21 DMX input of the first slave device. Then connect the DMX output of the first slave device to the DMX input of the second slave device and so on. Please note that this device must not be connected to a dimmer. Crazy Par Bundle4 8x5W RGBWAP...
  • Page 22 Starting up Inserting the battery into the Press the lock of the battery holder to the centre of the housing and pull out the battery holder remote control like a drawer. Insert the battery. The battery is correct if the positive pole points to the housing base of the remote control.

  • Page 23: Connections And Controls

    Connections and controls Connections and controls Crazy Par Bundle4 8x5W RGBWAP...
  • Page 24 Connections and controls 1 [Power In] Lockable input socket (Power Twist) for power supply 2 [Fuse] Fuse holder. Should the fuse have blown, disconnect the unit from the power supply and replace the fuse with a new fuse of the same type. 3 Display and function buttons.
  • Page 25 DMX input. 7 [DMX Out] DMX output 8 [Power Out] IEC chassis socket for the power supply of further devices 9 [Power Out] Lockable output socket (Power Twist) for the power supply of further units Crazy Par Bundle4 8x5W RGBWAP...
  • Page 26 Connections and controls Foot switch unit (optionally available) LED lighting set...
  • Page 27 11 [Sound Active] Activates the sound-controlled mode (playback of sound-controlled automatic shows). 12 [Freeze] Pauses the running show and resumes it after a break. 13 [Blackout] Blackouts all LEDs and turns them back on again. Crazy Par Bundle4 8x5W RGBWAP...
  • Page 28 Connections and controls Infrared remote control LED lighting set...
  • Page 29 Activates the Sound-controlled mode. Set the sensitivity of the built-in microphone with [+] and [–] . 19 [STROBE] Activates the setting mode for the Strobe speed. Adjust the speed using [+] and [–] . 20 [+] Increases the set value. Crazy Par Bundle4 8x5W RGBWAP...
  • Page 30 Connections and controls 21 [–] Decreases the set value. 22 [Dimming] Activates the dimming function for basic colours. Set the value for each basic colour using [+] and [–] . 23 [0 … 9] Numeric buttons for direct selection of a basic colour. 24 [R], [G], [B], [A], [W] Buttons to select the colour shade in dimmer mode.

  • Page 31: Operating

    If you do not press any key for about 30 seconds, the display will be blanked. It will be reacti‐ vated to display the previously shown menu by pressing any button. The set values are retained even when the device is disconnected from the mains power supply. Crazy Par Bundle4 8x5W RGBWAP...
  • Page 32 Operating Operating mode ‘Automatic’ Automatic operation can only be activated when the unit is operating in stand alone mode or as master in a master / slave combination. This setting is only relevant if the device is not con‐ trolled via DMX. Press [Mode] repeatedly until the display shows ‘AUTO’...
  • Page 33 ‘SP.99’ (fast) or ‘SP.FL’ . To adjust the strobe frequency, press [Setup] repeatedly until the display shows ‘FS.xx’ . With [Up] and [Down] you can now select a value between ‘FS.00’ (slow) and ‘FS.99’ (fast). Crazy Par Bundle4 8x5W RGBWAP...
  • Page 34 Operating Operating mode ‘Slave’ This setting is only relevant if the device is serving as Slave in a Master / Slave configuration and is not controlled via DMX. Press [Mode] repeatedly until the display shows ‘SLAv’ and confirm with [Setup]. LED lighting set...
  • Page 35 DMX address for the various DMX modes. Mode Highest possible DMX address 6-channel 8-channel 10-channel 24-channel Press [Setup]. With [Up] and [Down] you can now select one of the following DMX operating modes: ‘6-.CH’ (six channels) ‘8-.CH’ (eight channels) Crazy Par Bundle4 8x5W RGBWAP...
  • Page 36 Operating ‘10CH’ (ten channels) ‘24-CH’ (24 channels) Sound control A sound-controlled show can only be activated when the unit is operating in stand alone mode or as master in a master / slave combination. This setting is only relevant if the device is not controlled via DMX.
  • Page 37 ‘A.000’ … ‘A.255’ Amber ‘P.000’ … ‘P.255’ To adjust the strobe frequency, press [Setup] repeatedly until the display shows ‘FS.xx’ . With [Up] and [Down] you can now select a value between ‘FS.00’ (slow) and ‘FS.99’ (fast). Crazy Par Bundle4 8x5W RGBWAP...
  • Page 38 Operating Dimmer curve Press [Mode] repeatedly until the display shows ‘Set’ . Press [Setup]. Use [Up] | [Down] to select the menu item ‘Cur’ and confirm with [Setup]. With [Up] | [Down] you can select one of the following dimmer curves. The dimmer curve determines how the brightness increases or decreases depending on the set DMX value.
  • Page 39 ‘-No’ (no reset) and confirm with [Setup]. Firmware version Press [Mode] repeatedly until the display shows ‘InFo’ . Press [Setup], the display shows ‘Ver’ . Press [Setup] to let the device show the Firmware version. Crazy Par Bundle4 8x5W RGBWAP...

  • Page 40: Menu Overview

    Operating 7.3 Menu overview LED lighting set...

  • Page 41: Functions In 6-Channel Dmx Mode

    Intensity blue (0 % to 100 %), for all LEDs together 0…255 Intensity white (0 % to 100 %), for all LEDs 0…255 Intensity amber (0 % to 100 %), for all LEDs 0…255 Intensity UV (0 % to 100 %), for all LEDs Crazy Par Bundle4 8x5W RGBWAP...

  • Page 42: Functions In 8-Channel Dmx Mode

    Operating 7.5 Functions in 8-channel DMX mode Channel Value Function 0…255 Dimmer (0 % to 100 %) 0…255 Intensity red (0 % to 100 %), for all LEDs together 0…255 Intensity green (0 % to 100 %), for all LEDs together 0…255 Intensity blue (0 % to 100 %), for all LEDs together 0…255...

  • Page 43: Functions In 10-Channel Dmx Mode

    Intensity UV (0 % to 100 %) for all LEDs if channel 8 = 0 Colour setting via channels 1…7 1…5 Preprogrammed automatic show 01 11…16 Preprogrammed automatic show 02 12…17 Preprogrammed automatic show 03 Crazy Par Bundle4 8x5W RGBWAP...
  • Page 44 Operating Channel Value Function 18…23 Preprogrammed automatic show 04 24…29 Preprogrammed automatic show 05 30…35 Preprogrammed automatic show 06 36…41 Preprogrammed automatic show 07 42…47 Preprogrammed automatic show 08 48…53 Preprogrammed automatic show 09 54…59 Preprogrammed automatic show 10 60…65 Preprogrammed automatic show 11 66…71 Preprogrammed automatic show 12...
  • Page 45 132…137 Preprogrammed automatic show 23 138…143 Preprogrammed automatic show 24 144…149 Preprogrammed automatic show 25 150…155 Preprogrammed automatic show 26 156…161 Preprogrammed automatic show 27 162…167 Preprogrammed automatic show 28 168…173 Preprogrammed automatic show 29 Crazy Par Bundle4 8x5W RGBWAP...
  • Page 46 Operating Channel Value Function 174…179 Preprogrammed automatic show 30 180…185 Preprogrammed automatic show 31 186…191 Preprogrammed automatic show 32 192…197 Preprogrammed automatic show 33 198…203 Preprogrammed automatic show 34 204…209 Preprogrammed automatic show 35 210…215 Preprogrammed automatic show 36 216…221 Preprogrammed automatic show 37 222…227 Preprogrammed automatic show 38...
  • Page 47 R: 0; G: 255; B: 255; W: 0; A: 0; P: 0 180…194 R: 255; G: 0; B: 0; W: 170; A: 0; P: 0 195…209 R: 0; G: 255; B: 0; W: 170; A: 0; P: 0 Crazy Par Bundle4 8x5W RGBWAP...
  • Page 48 Operating Channel Value Function 210…224 R: 0; G: 0; B: 255; W: 170; A: 0; P: 0 225…239 R: 255; G: 180; B: 0; W: 130; A: 255; P: 0 240…255 R: 255; G: 255; B: 255; W: 255; A: 255; P: 255 Channel 6 = 6…227 0…255 Programme speed Pr.02…Pr.38...

  • Page 49: Functions In 24-Channel Dmx Mode

    Intensity green (0 % to 100 %), spot 2 0…255 Intensity blue (0 % to 100 %), spot 2 0…255 Intensity white (0 % to 100 %), spot 2 0…255 Intensity amber (0 % to 100 %), spot 2 Crazy Par Bundle4 8x5W RGBWAP...
  • Page 50 Operating Channel Value Function 0…255 Intensity UV (0 % to 100 %), spot 2 0…255 Intensity red (0 % to 100 %), spot 3 0…255 Intensity green (0 % to 100 %), spot 3 0…255 Intensity blue (0 % to 100 %), spot 3 0…255 Intensity white (0 % to 100 %), spot 3 0…255...

  • Page 51: Technical Specifications

    Power consumption 170 W Fuse 5 mm × 20 mm, 3 A, 250 V, slow blow Protection class IP20 Dimensions (W × H × D) 1160 mm × 346 mm × 65 mm Weight 12 kg Crazy Par Bundle4 8x5W RGBWAP...
  • Page 52 Technical specifications Environmental conditions Temperature range 0 °C…40 °C Relative humidity 50 %, non-condensing LED lighting set...

  • Page 53: Troubleshooting

    Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting: Crazy Par Bundle4 8x5W RGBWAP...
  • Page 54 Troubleshooting Symptom Remedy The unit does not work, no light Check the mains connection and the main fuse. No response to the DMX con‐ 1. If the dot after the last digit in the display does not troller flash in ‘DMX’ mode, no DMX signal is received. Check whether the DMX controller is switched on.

  • Page 55: Plug And Connection Assignments

    The unit offers a 3-pin XLR socket for DMX output and a 3-pin XLR plug for DMX input. Please refer to the drawing and table below for the pin assignment of a suitable XLR plug. Configuration Ground, shielding Signal inverted (DMX–, ‘cold signal’) Signal (DMX+, ‘hot signal’) Crazy Par Bundle4 8x5W RGBWAP...

  • Page 56: Cleaning

    Cleaning Cleaning Optical lenses Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output. The frequency of cleaning depends on the operating environment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device.

  • Page 57: Protecting The Environment

    Batteries must not be disposed of as domestic waste or thrown into fire. Dispose of the bat‐ teries according to national or local regulations regarding hazardous waste. To protect the environment, dispose of empty batteries at your retail store or at appropriate collection sites. Crazy Par Bundle4 8x5W RGBWAP...
  • Page 58 Protecting the environment Disposal of your old device This product is subject to the European Waste Electrical and Electronic Equipment Directive (WEEE) in its currently valid version. Do not dispose with your normal household waste. Dispose this device through an approved waste disposal firm or through your local waste facility.
  • Page 60 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
