General notes General notes This manual contains important instructions for the safe operation of the unit. Read and follow the safety instructions and all other instructions. Keep the manual for future reference. Make sure that it is available to all those using the device. If you sell the unit please make sure that the buyer also receives this manual.
General notes 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly.
General notes 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. Displays Texts and values displayed on the device are marked by quotation marks and italics. Examples: ‘24ch’...
Page 8
General notes Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos- sible dangerous situation that can result in death or serious injury if it is not avoided.
Page 9
General notes Warning signs Type of danger Warning – suspended load. Warning – danger zone. Outdoor Stage PAR 12 × 8 QCL...
Safety instructions Safety instructions Intended use This device is intended to be used as an electronic illumination effect using LED technics. The device is designed for professional use and is not suitable for use in households. Use the device only as described in this user manual. Any other use or use under other operating con- ditions is considered to be improper and may result in personal injury or property damage.
Page 11
Safety instructions Safety DANGER! Danger for children Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit.
Page 12
Safety instructions DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device if covers, protectors or optical components are missing or damaged.
Page 13
Safety instructions WARNING! Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights. WARNING! Risk of burns The surface of the device can become very hot during operation. Do not touch the device with bare hands during operation, and after switching off wait for at least 15 minutes.
Page 14
Safety instructions NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the user.

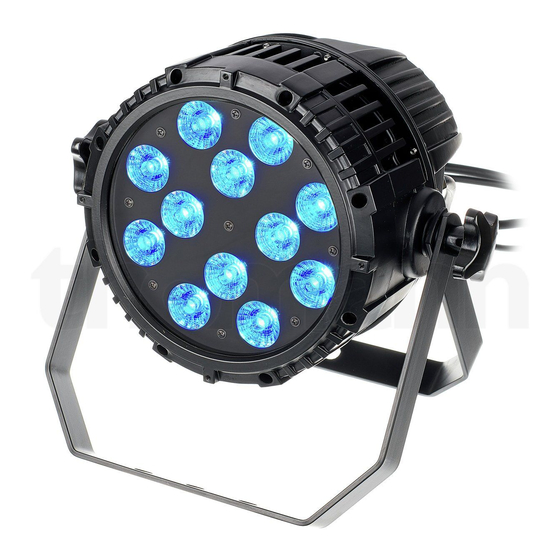

Features Features Due to its sturdy and weather-proof housing made of die-cast aluminum, the device is espe- cially suitable for outdoor use. With the very bright four-colour LEDs, it is particularly suitable for professional lighting tasks. Special features of the device: 12 ×...
Page 16
Features Information about protection Equipment with protection class IP65 are dust-tight and completely protected against contact class IP65 (first code number). They are also protected against splash water from any angle (second code digit). That is why this equipment can also be used outdoors. Event technology equipment is generally only designed for temporary use however (event lighting) and not for permanent use outdoors.
Installation Installation Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
Page 18
Installation NOTICE! Risk of overheating Always ensure sufficient ventilation. The ambient temperature must not exceed the limits stated in the chapter Tech- nical Specifications of the User Manual. NOTICE! Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand.
Page 19
Installation NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi- nary microphone cables. Never connect the DMX input or output to audio devices such as mixers or ampli- fiers. NOTICE! Possible damage due to moisture Moisture entering into open connectors (plugs and couplers) of DMX or power cords can cause short circuits.
Page 20
Installation Mounting options You can install the unit in hanging or standing position. When in use, the device must always be attached to a solid surface or an approved truss. Use the openings provided on the two- piece bracket for attaching. Always work from a stable platform whenever installing, moving or servicing the unit.
Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. Outdoor Stage PAR 12 × 8 QCL...
Page 22
Starting up Connections in DMX mode Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device. Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain.
Page 23
Starting up Connections in master/slave When you configure a group of devices in master/slave mode, the first unit will control the mode other units for an automatic, sound-activated, synchronized show. This function is ideal when you want to start a show immediately. Connect the DMX output of the master device to the DMX input of the first slave device.
Connections and operating elements Connections and operating elements Rear panel LED PAR...
Page 25
Connections and operating elements 1 Power cord for the voltage supply of the unit (with special plug, screw-mountable) 2 Power cord for the voltage supply of a connected device (special coupling, screw-mountable) 3 DMX input cable (IP65DMX plug, screw-mountable) 4 DMX output cable (IP65DMX coupling, screw-mountable) 5 Display 6 Button [Down] Decreases the displayed value by one.
Page 26
Connections and operating elements 10 Hanging bracket/floor stand 11 Bracket adjustment knobs 12 Pressure equalisation element LED PAR...
Operating Operating 7.1 Starting the device Connect the device to the power supply to start operation. After a few seconds, the display indicates that a reset is in progress. The device is then ready for use. 7.2 Main menu Press [Mode] to activate the main menu and select an operating mode. Use the [Up] and [Down] buttons to change the respectively displayed value.
Page 28
Operating DMX mode Press [Mode] repeatedly until the display shows ‘d.xxx’ . Now you can set the number of the first DMX channel to be used by the device (DMX address). Use the [Up] and [Down] buttons to select a value between 1 and 512 (display shows ‘d.001’ … ‘d.512’ ). Make sure that this number matches the configuration of your DMX controller.
Page 29
Operating ‘7-ch’ (seven channels) This setting is only relevant if the device is controlled via DMX. When the display shows the desired value, press [Setup] to confirm the selection and return to the parent menu. Outdoor Stage PAR 12 × 8 QCL...
Page 30
Operating Operating mode ‘Show/Master’ Press [Mode] repeatedly until the display shows ‘Pr.xx’ . Now you can select one of the 11 pre- programmed automatic shows. Use the [Up] and [Down] buttons to select a value between ‘Pr. 01’ and ‘Pr.11’ . Programme Description Pr.01...
Page 31
Operating Programme Description Pr.10 Slow transition bright / dark, blue Pr.11 Slow transition bright / dark, white The auto show can only be activated on the device that is configured as master. This setting is only relevant if the device is not controlled via DMX. The device can operate in stand-alone mode or control connected devices of the same type, that must be configured as slaves.
Page 32
Operating Settings programme Pr.01 For the programme ‘Pr.01’ , you can choose from 14 colours. Select programme ‘Pr.01’ first, then confirm with ‘Setup’ . Now you can use the [Up] and [Down] buttons to select one of the following options: Value Description ‘1.--r’...
Page 33
Operating Value Description ‘11.gu’ Green and white ‘12.bu’ Blue and white ‘13.gu’ Red, green and white ‘14.Uu’ Red, blue and white If the colour value ‘9.-FL’ is selected, you can press [Setup] to open the submenu for setting the colour. Use the [Up] and [Down] buttons to set the intensity of red, green, blue and white indi- vidually in a range from 0 to 255.
Page 34
Operating Operating mode ‘Auto’ In automatic mode, all programmed shows are played sequentially in an endless loop. Press [Mode] repeatedly until the display shows ‘Auto’ . The automatic mode starts immedi- ately. This setting is only relevant if the device is not controlled via DMX. Operating mode ‘Slave’...
Operating 7.4 Functions in 1-channel DMX mode Channel Value Function Constant colour Dark 1…22 23…45 Green 46…68 Blue 69…91 Cyan 92…114 Yellow 115…137 Orange 138…160 Pink 161…183 Purple 184…206 Dark blue LED PAR...
Operating Channel Value Function 207…229 Bright green 230…252 White 253…255 Warm white 7.5 Functions in 4-channel DMX mode Channel Value Function 0…255 Intensity Red (0 % to 100 %) 0…255 Intensity Green (0 % to 100 %) 0…255 Intensity Blue (0 % to 100 %) 0…255 Intensity cold white (0 % to 100 %) Outdoor Stage PAR 12 ×...
Operating 7.6 Functions in 5-channel DMX mode Channel Value Function 0…255 Dimmer (0 % to 100 %) 0…255 Intensity Red (0 % to 100 %) 0…255 Intensity Green (0 % to 100 %) 0…255 Intensity Blue (0 % to 100 %) 0…255 Intensity cold white (0 % to 100 %) 7.7 Functions in 7-channel DMX mode...
Page 39
Operating Channel Value Function Constant colour hue, if channel 7 = 1…22 0…6 Colour 1 7…12 Colour 2 13…18 Colour 3 251…255 Colour 43 Process speed, if channel 7 = 23…255 0…255 Slow…fast 0…255 Intensity Green (0 % to 100 %), if channel 7 = 0, otherwise without function 0…255 Intensity Blue (0 % to 100 %), if channel 7 = 0, otherwise without function 0…255...
Page 40
Operating Channel Value Function Constant mix of RGB, depending on channel 2, 3, 4 and 5 1…22 Constant colour, depending on channel 2 23…45 Pr.02 Slow transition, 14 colours in succession 46…68 Pr.03 Slow transition, red, green, blue, cold white in succession 69…91 Pr.04 Fast transition, 14 colours in succession...
Technical specifications Technical specifications LEDs 12 × four-colour LEDs, 8 W Beam angle 25 ° Number of DMX channels 1, 4, 5 or 7 Operating supply voltage AC 110…230 V 50/60 Hz Power consumption 81 W Protection class IP65 Temperature range –20 °C …...
Plug and connection assignments Plug and connection assignments Introduction This chapter will help you select the right cables and plugs to connect your valuable equip- ment so that a perfect light experience is guaranteed. Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or ‘just’...
Troubleshooting Troubleshooting NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi- nary microphone cables. Never connect the DMX input or output to audio devices such as mixers or ampli- fiers. In the following we list a few common problems that may occur during operation.
Page 44
Troubleshooting Symptom Remedy The unit does not work, no Check the mains connection and the fuse. light. No response to the DMX con- 1. Check the DMX ports and cables for proper connection. troller. 2. Check the address settings and the DMX polarity. 3.
Cleaning Cleaning Optical lenses Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output. The frequency of cleaning depends on the operating environment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device.
Protecting the environment Protecting the environment Disposal of the packaging mate- rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
