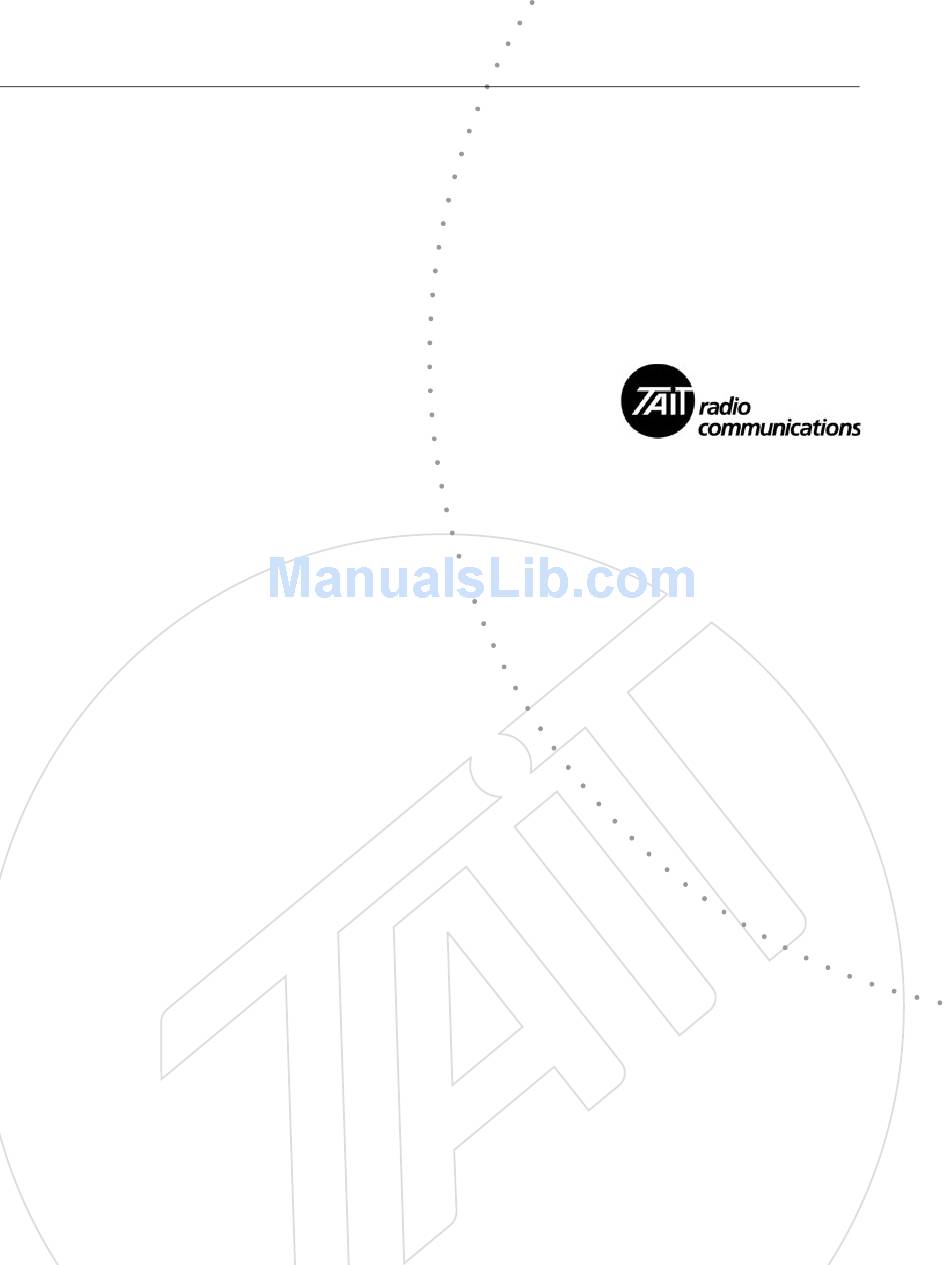

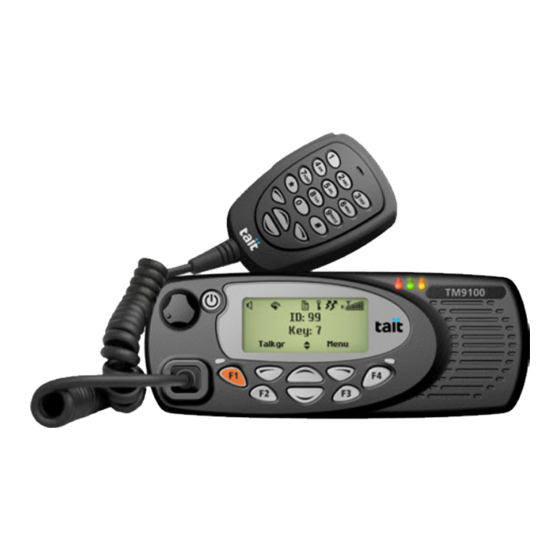

TM9100 mobiles
Installation Guide
MMA-00018-02
Issue 02
August 2005

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TM9100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Tait TM9100

  • Page 1 TM9100 mobiles Installation Guide MMA-00018-02 Issue 02 August 2005...
  • Page 2: Contact Information

    Website: http://www.taitworld.com To our European customers: Tait Electronics Limited is an environmentally responsible company which supports waste minimization and material recovery. The European Union’s Waste Electrical and Electronic Equipment Directive requires that this product be disposed of separately from the general waste stream when its service life is over.
  • Page 3: Table Of Contents

    2.10 Checking the Installation ........27 Tait General Software Licence Agreement ......28...
  • Page 4: Preface

    Preface Scope of Manual This manual describes the installation of the TM9100 mobile radio using the U-bracket, and how to install and connect the microphone, antenna, emergency switch, and external alert device. Other cradle mounting arrangements are available for the TM9100 radio, but are not described in this manual.
  • Page 5: Disclaimer

    Disclaimer There are no warranties extended or granted by this manual. Tait Electronics Ltd accepts no responsibility for damage arising from use of the information contained in the manual or of the equipment and software it describes. It is the responsibility of the user to ensure that use of such information, equipment and software complies with the laws, rules and regulations of the applicable jurisdictions.
  • Page 6 Within this manual, the following symbols are used to highlight differences between the 40W/50W and the 25W radios: This symbol highlights information that is relevant to 40W/50W radios. This symbol highlights information that is relevant to 25W radios. TM9100 Installation Guide Preface © Tait Electronics Limited August 2005...
  • Page 7: Safety Warnings

    Do not mount the radio vertically, with the control head facing down. This will violate compliance with the standards UL/CSA/EN 60950, Safety of Information Technology Equipment. Safety Warnings TM9100 Installation Guide © Tait Electronics Limited August 2005...
  • Page 8: Interference With Vehicular Electronics

    The LPG container space shall be vented to the outside of the vehicle. Radio Installation in Gas or Fuel tankers Special conditions must be observed when installing a radio on gas and fuel tankers. Consult your radio provider or Tait-accredited service center for more details. TM9100 Installation Guide Safety Warnings...
  • Page 9: Non-Standard Radio Installations

    This is illustrated in the following diagram: 3/8 inch (10 mm) mounting surface Negative Earth Supply The radios are designed to operate only in a negative earth system. Safety Warnings TM9100 Installation Guide © Tait Electronics Limited August 2005...
  • Page 10: Preparing The Installation

    Regulations TM9100 mobile radios should be installed in accordance with the MPT MPT 1362 Code of Practice 1362 Code of Practice. Follow your vehicle manufacturer’s instructions for installing mobile radios.
  • Page 11: Choosing An Installation Configuration

    Installation Kit Options other antenna connector options. Other cradle mounting arrangements are also available. Consult your nearest Tait Dealer or Customer Service Organization for more information. Choosing an Installation Configuration The radio allows for different installation configurations for vehicles with respect to ignition signal and standby current.
  • Page 12 Note The TMAA04-05 ignition sense kit provides a suitable mating plug for the radio’s auxiliary connector. The plug includes wiring for the the ignition signal and analog ground. TM9100 Installation Guide Preparing the Installation © Tait Electronics Limited August 2005...
  • Page 13: Installing The Radio

    It may be required to mount the radio upside down to maintain a gap of more than 3/8 inch (10 mm) for air circulation between the underside of the radio body and the mounting surface. Installing the Radio TM9100 Installation Guide © Tait Electronics Limited August 2005...
  • Page 14 Use the screwdriver to lift the control head off the chassis clip, then repeat in the other position. The control head can now be removed from the radio body. TM9100 Installation Guide Installing the Radio © Tait Electronics Limited August 2005...
  • Page 15: Selecting The Mounting Position

    (fitting an auxiliary connector or external options connector will not restore the IP54 protection class) the microphone grommet is not installed. Installing the Radio TM9100 Installation Guide © Tait Electronics Limited August 2005...
  • Page 16: Mounting The U-Bracket

    (not included). Caution Although an industrial-strength recloseable fastening system can be used to support the installation, for safety reasons Tait does not recommend this as a mounting option. Important When mounting the radio on a surface, check whether the mounting screws will screw into material providing sufficient strength.
  • Page 17: Installing The Antenna

    Terminate the free end of the antenna cable with the mini-UHF plug or BNC plug (supplied) as shown in Figure 2.4. Figure 2.4 Terminating the antenna cable 5/16" 5/32" (8 mm) (4 mm) 9/16" (14 mm) Installing the Radio TM9100 Installation Guide © Tait Electronics Limited August 2005...
  • Page 18: Connecting The Power Cable To The Power Source

    To reduce the standby current from 50mA to <3 mA without using the ignition signal, connect pin 4 (AUX GPI3) and pin 15 (GND) of the auxiliary connector. TM9100 Installation Guide Installing the Radio © Tait Electronics Limited August 2005...
  • Page 19 Repeat steps 5 and 6 for the positive wire. Connect the negative wire to the battery ground terminal Connect the positive wire to the battery positive terminal. Installing the Radio TM9100 Installation Guide © Tait Electronics Limited August 2005...
  • Page 20: Connecting A Remote Speaker

    The space for a mating plug is limited to 1 5/8 inch (41mm) in width and 11/inch (18 mm) in height. It is recommended that you test the plug to be used before manufacturing a cable. Tait uses IPN 240-00020-55 for the plug.
  • Page 21 RSSI Analog RSSI output Analog +13V8 SW Switched 13.8V supply. Power Supply is switched off when radio body is switched off 15 AGND Analog ground Ground Installing the Radio TM9100 Installation Guide © Tait Electronics Limited August 2005...
  • Page 22 The selected input line must be programmed to ‘Enter Emergency Mode’ and active to ‘Low’. To use ‘emergency power sense’, hardware link LK3 must be fitted (factory default), and AUX GPI2 TM9100 Installation Guide Installing the Radio © Tait Electronics Limited August 2005...
  • Page 23 AUX GPIO4 and the positive side to pin 8 (+13V8 SW). The external alert device must be capable of accepting a voltage of between 10V and 18V. Installing the Radio TM9100 Installation Guide © Tait Electronics Limited August 2005...
  • Page 24: Installing The Radio

    Adjust the position of the radio in the U-bracket for the best viewing angle, then tighten the thumb screws. Figure 2.6 Installing the radio in the U-bracket TM9100 Installation Guide Installing the Radio © Tait Electronics Limited August 2005...
  • Page 25: Installing The Microphone

    Install the microphone clip in the most convenient location using the screws provided. The microphone must be within reach of the user but in such a position that the PTT (press-to-talk) key cannot be inadvertently activated or jammed. Installing the Radio TM9100 Installation Guide © Tait Electronics Limited August 2005...
  • Page 26: Checking The Installation

    Some antennas are pre-tuned and must not be cut. Check with the manufacturers’ instructions. Once the reflected power levels are within tolerance, make a call to another party on the radio. TM9100 Installation Guide Installing the Radio © Tait Electronics Limited August 2005...
  • Page 27: Tait General Software Licence Agreement

    THE SOFTWARE OR FIRMWARE INCLUDING OPEN SOURCE of the Software or Firmware items prior-installed in the related COMPONENTS IS SUPPLIED BY TAIT AND ACCEPTED BY THE Tait product, included on CD or downloaded from the Tait “ ” LICENSEE AS IS WITHOUT WARRANTY OF ANY KIND EITHER website, (hereinafter referred to as “the Software or Firmware”)
  • Page 29: Tait Electronics Limited August

    External alert device – AGND Emergency switch – rear view For more information, refer to “Connecting to the Auxiliary Connector (Ignition Signal, Emergency Switch, External Alert Devices)” on page www.taitworld.com MMA-00018-02 TM9100 Installation Guide © Tait Electronics Limited August 2005...
