- Page 1 TM9100 mobiles 110 Watt Mobile Installation Guide 27 October 2005...
-
Page 2: Contact Information
Website: http://www.taitworld.com To our European customers: Tait Electronics Limited is an environmentally responsible company which supports waste minimization and material recovery. The European Union’s Waste Electrical and Electronic Equipment Directive requires that this product be disposed of separately from the general waste stream when its service life is over. -
Page 3: Table Of Contents
4.10 Checking the Installation ........22 Tait General Software Licence Agreement ......23 TM9100 Mobiles: 110 W Mobile Installation Guide ©... -
Page 4: Preface
Preface Scope of Manual This manual describes how to install a Tait TM9155R mobile, including microphone, antenna, emergency switch, and external alert device. The installation of accessories is described in the installation instructions provided with the equipment, and the relevant section in the service manual. -
Page 5: Associated Documentation
This alert is used to highlight information that is required to ensure procedures are performed correctly. 1. Technical notes are only available in PDF format from the Tait support website. Consult your nearest Tait Dealer or Customer Service Organization for more information. - Page 6 Preface TM9100 Mobiles: 110 W Mobile Installation Guide © Tait Electronics Limited October 2005...
-
Page 7: Introduction

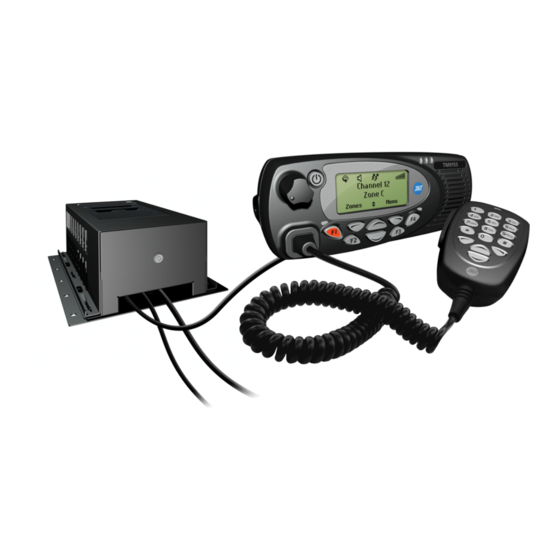

Introduction The Tait TM9155R mobile is a P25-compliant radio in the VHF (136-174 MHz) frequency range with 110 W transmit power output. It consists of a standard TM9100 mobile enclosed in a strong chassis on top of which is an external RF amplifier. -
Page 8: Safety Warnings
RF energy when your radio is transmitting. Examples of vehicular electronic devices that may be affected by RF energy are: Safety Warnings TM9100 Mobiles: 110 W Mobile Installation Guide © Tait Electronics Limited October 2005... -
Page 9: Preparation When Drilling Holes
Radio Installation in Gas or Fuel tankers Special conditions must be observed when installing a radio on gas and fuel tankers. Consult your radio provider or Tait-accredited service center for more details. Negative Earth Supply The radios are designed to operate only in a negative earth system. -
Page 10: Preparing The Installation
RF amplifier and radio body Base plate Cover Control head (with fitting instructions) Microphone Remote cable Install kit Before installing, make sure that cable lengths are sufficient. Preparing the Installation TM9100 Mobiles: 110 W Mobile Installation Guide © Tait Electronics Limited October 2005... -
Page 11: Programming Settings
Important Incorrect programming settings can result in damage to the external RF amplifier. For details, see the programming software online Help. TM9100 Mobiles: 110 W Mobile Installation Guide Preparing the Installation © Tait Electronics Limited October 2005... -
Page 12: Installing The Radio
Selecting the Mounting Position Inspect the vehicle and determine the safest and most convenient position for mounting the radio. Tait recommends the use of an equipment mounting tray designed for the vehicle. These are available from manufacturers such as Havis-Shields (www.havis.com), Jotto Desk (www.jottodesk.com), Gamber Johnson (www.gamberjohnson.com), and... -
Page 13: Installing The Antenna
N-type antenna connector (supplied) to the antenna cable. Figure 4.1 Stripping the antenna cable 0.83 in (21 mm) 0.24 in 0.27 in (6.0 mm) 0.33 in (6.8 mm) (8.3 mm) TM9100 Mobiles: 110 W Mobile Installation Guide Installing the Radio © Tait Electronics Limited October 2005... -
Page 14: Connecting The Power Cable To The Power Source
Important Route the cable in a manner that minimizes coupling of electric vehicle systems such as alternators into the radio. Installing the Radio TM9100 Mobiles: 110 W Mobile Installation Guide © Tait Electronics Limited October 2005... -
Page 15: Installing The Remote Control Head
(TMAC34-1T) has already been fitted to the radio body.) Run the remote head cable (TMAA04-01) from the control head location to the radio mounting location. TM9100 Mobiles: 110 W Mobile Installation Guide Installing the Radio © Tait Electronics Limited October 2005... -
Page 16: Installing The Microphone
Only install the microphone clip provided. If a non- standard microphone clip is used, the correct operation of the microphone hookswitch cannot be guaranteed. Installing the Radio TM9100 Mobiles: 110 W Mobile Installation Guide © Tait Electronics Limited October 2005... -
Page 17: Connecting To The Ignition Signal
Connecting to the Ignition Signal Ignition Sense allows the radio to be turned on and off with the ignition key of the vehicle. The TM9155R is already fitted with an ignition sense kit, however it must be programmed for ignition sense operation. -
Page 18: Connecting A Remote Speaker
Connecting a Remote Speaker If a high-power remote speaker is required, Tait recommends using: TMAA10-03 high-power remote speaker for 25W radios. Installation instructions (IPN 402-00010-00) are provided with the speaker. If a different speaker is used, receptacles for the speaker pins of the power connector are provided with the installation kit. - Page 19 The selected input line must be programmed to ‘Enter Emergency Mode’ and active to ‘Low’. To use ‘emergency power sense’, hardware link LK3 must be fitted (factory default), and AUX GPI2 TM9100 Mobiles: 110 W Mobile Installation Guide Installing the Radio © Tait Electronics Limited October 2005...
-
Page 20: Mounting The Radio
Connect the Control Head cable, Antenna cable and External Speaker (if installed). Lastly, connect the power cable. Fix the 110W Mobile chassis securely to the mounting surface. Installing the Radio TM9100 Mobiles: 110 W Mobile Installation Guide © Tait Electronics Limited October 2005... - Page 21 Fit the cover over the 110W Mobile and then slide it forward 5mm (1/4") to engage with the base plate. Using the key supplied, turn the lock to lock the cover in place. TM9100 Mobiles: 110 W Mobile Installation Guide Installing the Radio © Tait Electronics Limited October 2005...
-
Page 22: Checking The Installation
Some antennas are pre-tuned and must not be cut. Check with the manufacturers’ instructions. Once the VSWR is within tolerance, make a call to another party on the radio. Installing the Radio TM9100 Mobiles: 110 W Mobile Installation Guide © Tait Electronics Limited October 2005... -
Page 23: Tait General Software Licence Agreement
THE SOFTWARE OR FIRMWARE INCLUDING OPEN SOURCE of the Software or Firmware items prior-installed in the related COMPONENTS IS SUPPLIED BY TAIT AND ACCEPTED BY THE Tait product, included on CD or downloaded from the Tait “ ” LICENSEE AS IS WITHOUT WARRANTY OF ANY KIND EITHER website, (hereinafter referred to as “the Software or Firmware”) - Page 24 Tait General Software Licence Agreement TM9100 Mobiles: 110 W Mobile Installation Guide © Tait Electronics Limited October 2005...
