Removing the Frame Bezel

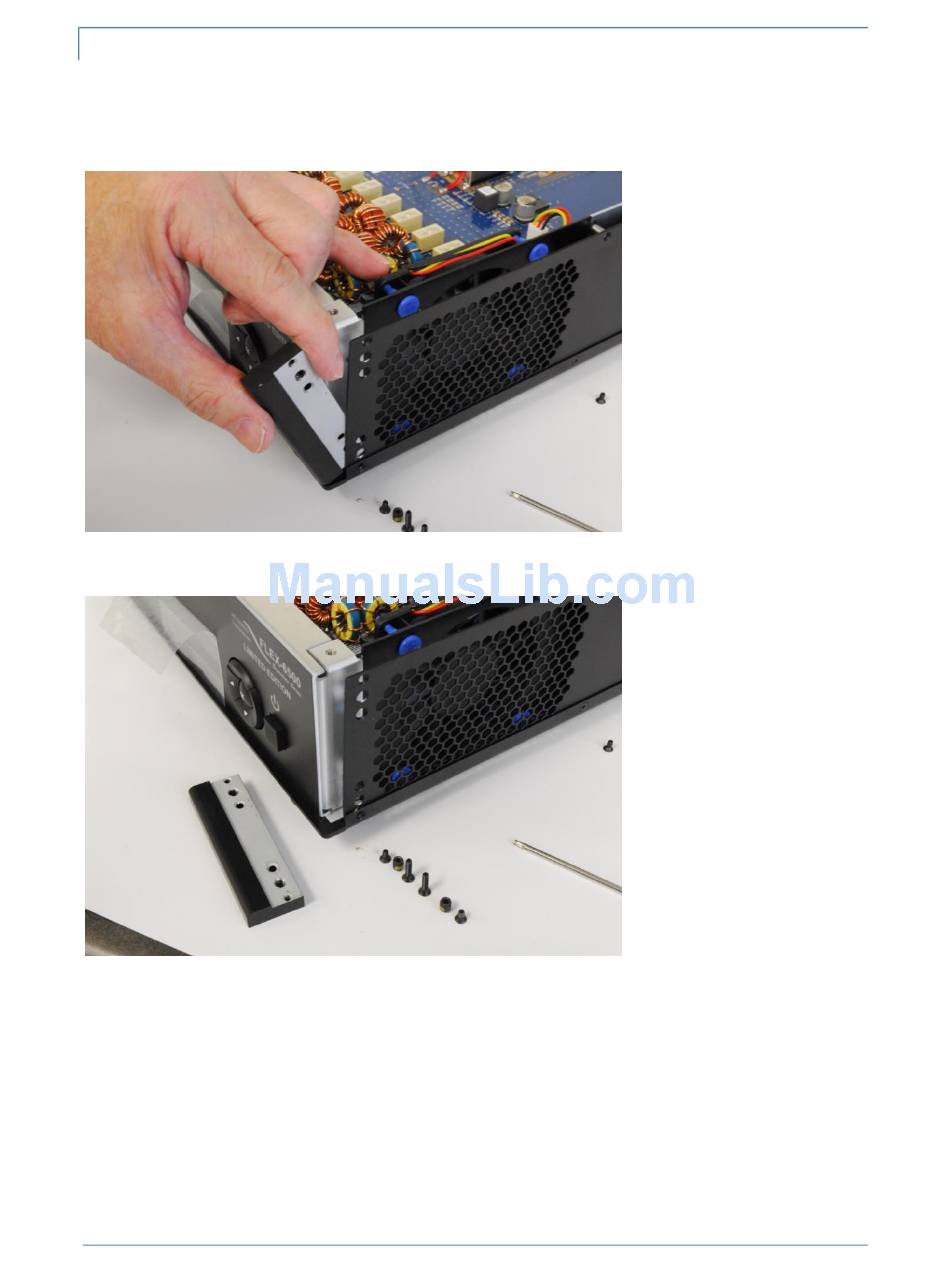

Grasp the right front Frame Bezel as shown below and gently pull or rock it forward while pulling slightly
upward to remove it from the chassis. Do not rock the bezel from side to side as that may bend the
bottom cover plate and side panels.
The image below shows the right front Frame Bezel after removal.
Remove the left front Frame Bezel after the right side front Frame Bezel has been removed.
Page 9
© 2013 FlexRadio Systems
