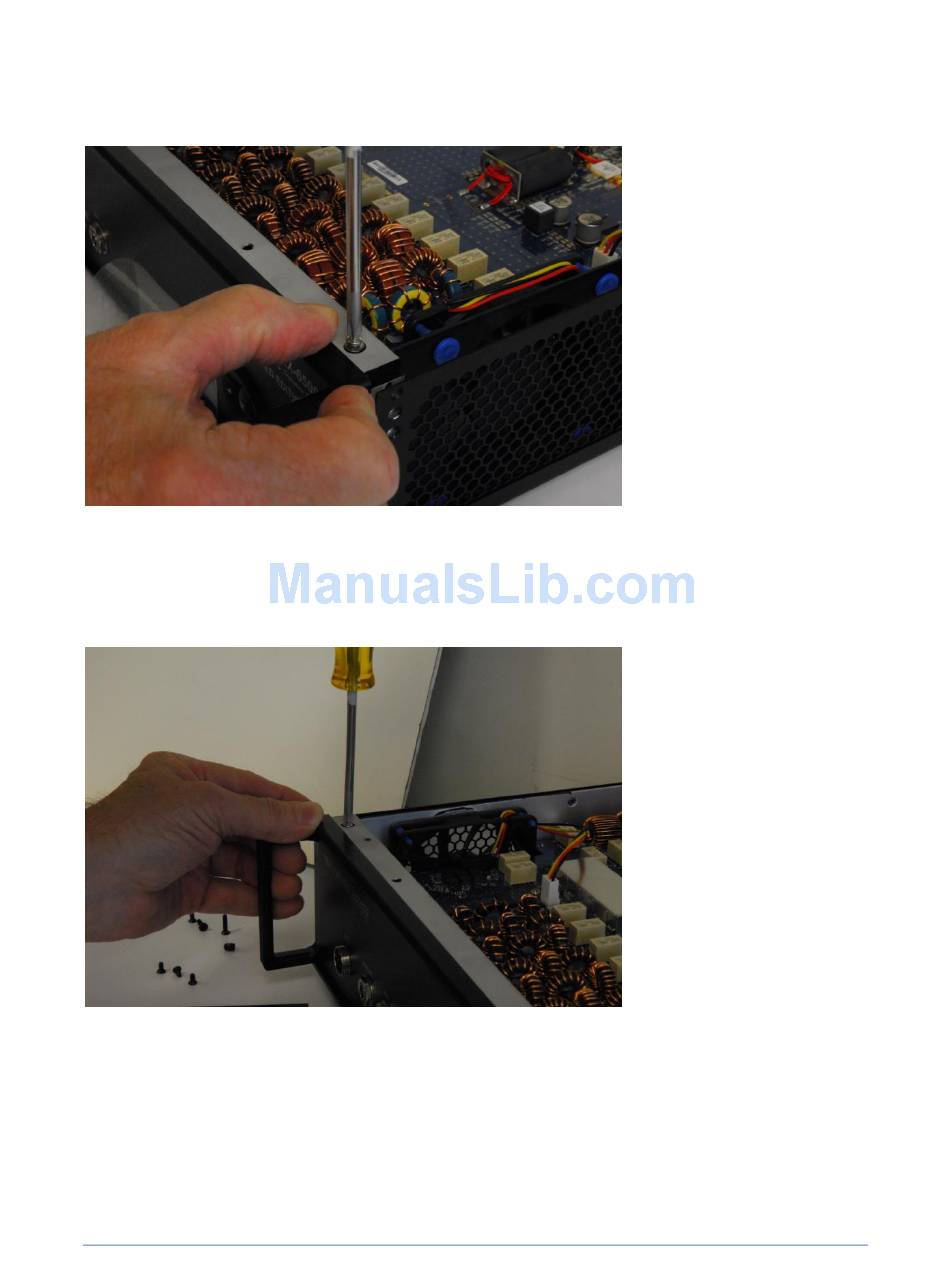

Reinstall the Front Chassis Retaining Bar by placing on top of the radio with the black edge facing
outward and aligning the screw holes with the chassis holes. Install a chassis retaining bar screw and
washer. Do not tighten the screw at this time. The image below shows the installation of right side
chassis retaining bar screw.
Install the left side chassis retaining bar screw and washer after the right side chassis retaining bar screw
has been installed. Making sure that the holes in the Handle Assembly are aligned with the chassis holes,
tighten the chassis retaining bar screws to hold the Handle Assembly in place. The image below shows
the tightening of the left chassis retaining bar screw.
Page 11
