Installing the FLEX-6000 Handle Assembly
Once the front frame bezel has been removed, the handle assembly can be installed.
Installing the Handle Assembly

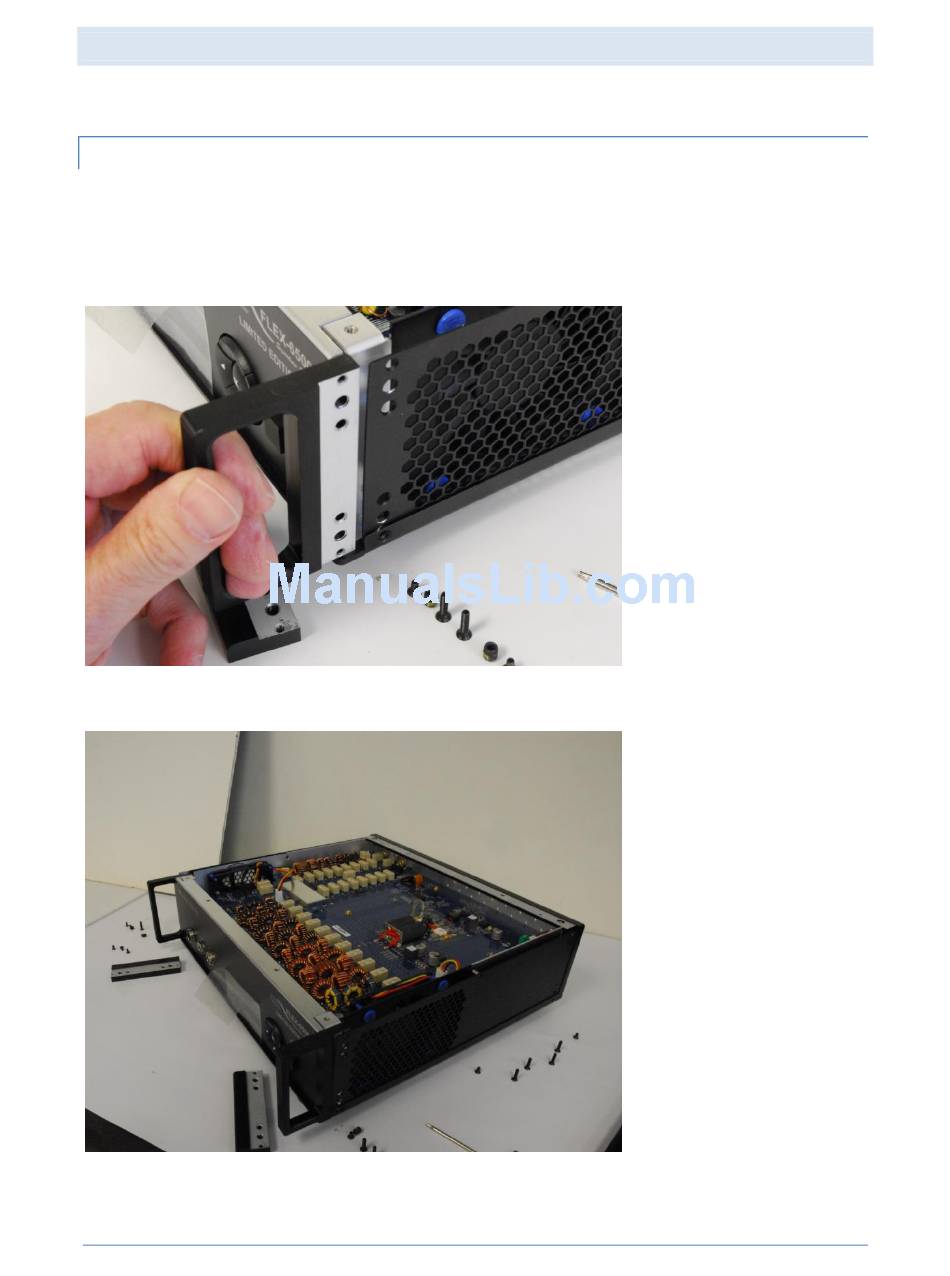

Gently slide the Handle Assembly into the same location where the front Frame Bezel was removed as
shown below. Slide the handle all the way in so that the six (6) screw holes line up with the radio chassis
screw holes. Do not rock the Handle Assembly from side to side as that may bend the bottom cover plate
and side panels.
Repeat the procedure for the left handle. The image below shows both Handle Assemblies installed.
Page 10
