Removing the Top Cover and Chassis Retaining Bar
The top chassis cover for the radio needs to be removed before the corner bezels can be removed.
Using the long portion of the "L" TORX wrench remove the two (2) remaining short Top Cover Side screws
from the left side of the FLEX-6000. Then remove the remaining two (2) short Top Cover Side screws from
the right side of the FLEX-6000. Retain the Top Cover Side screws for re-installation. The image below

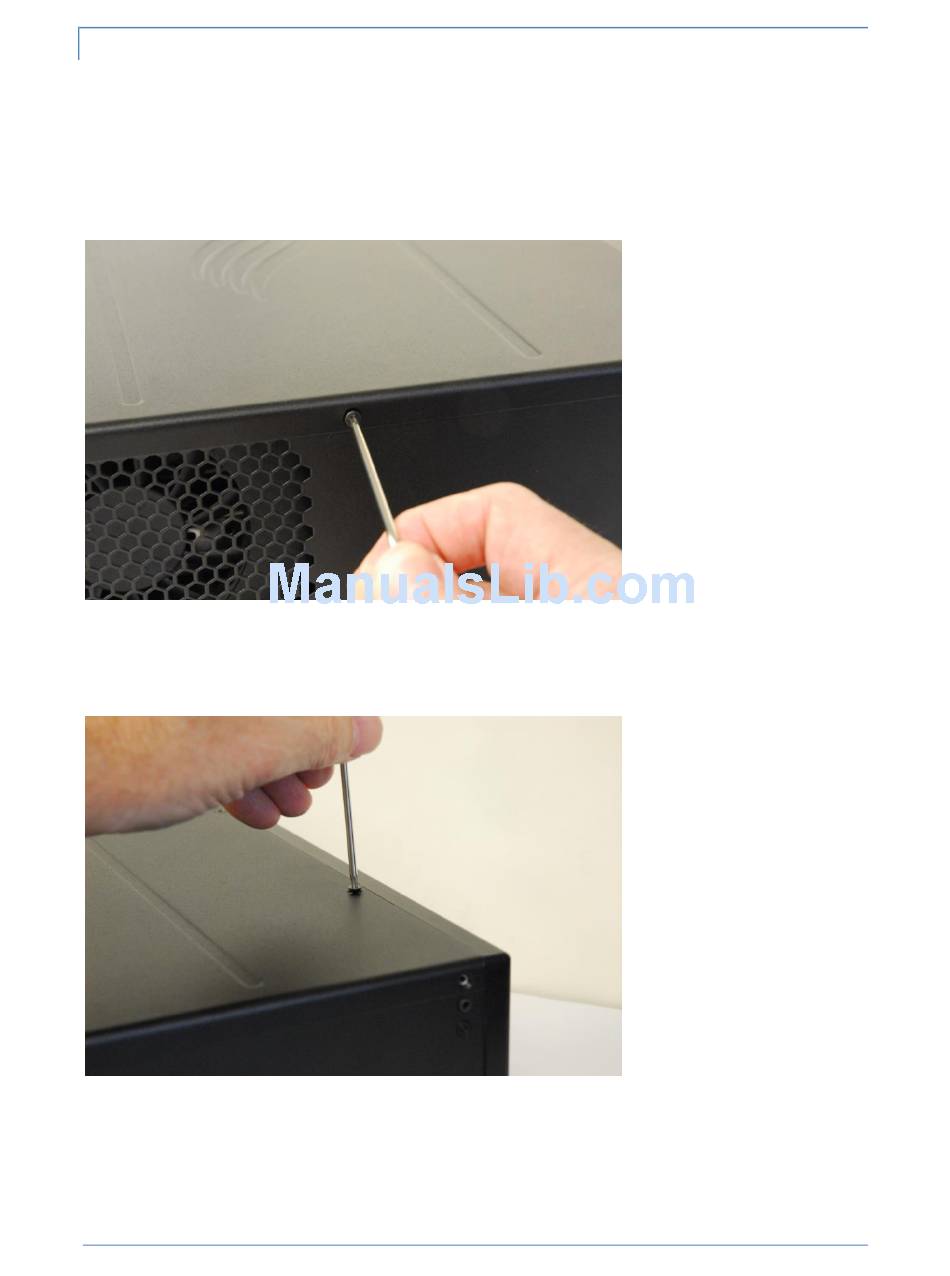

shows the removal of the right side top Cover Side screws.
After removing the top cover side screws remove the four (4) long Top Cover screws using the long
portion of the "L" TORX wrench. Retain the Top Cover screws for re-installation. The image below shows
the removal of the Top Cover screws.
