After both Front Chassis Retaining Bar screws have been removed, gently pull upward on the Front
Chassis Retaining Bar to remove it from the chassis. Retain the Front Chassis Retaining Bar for re-

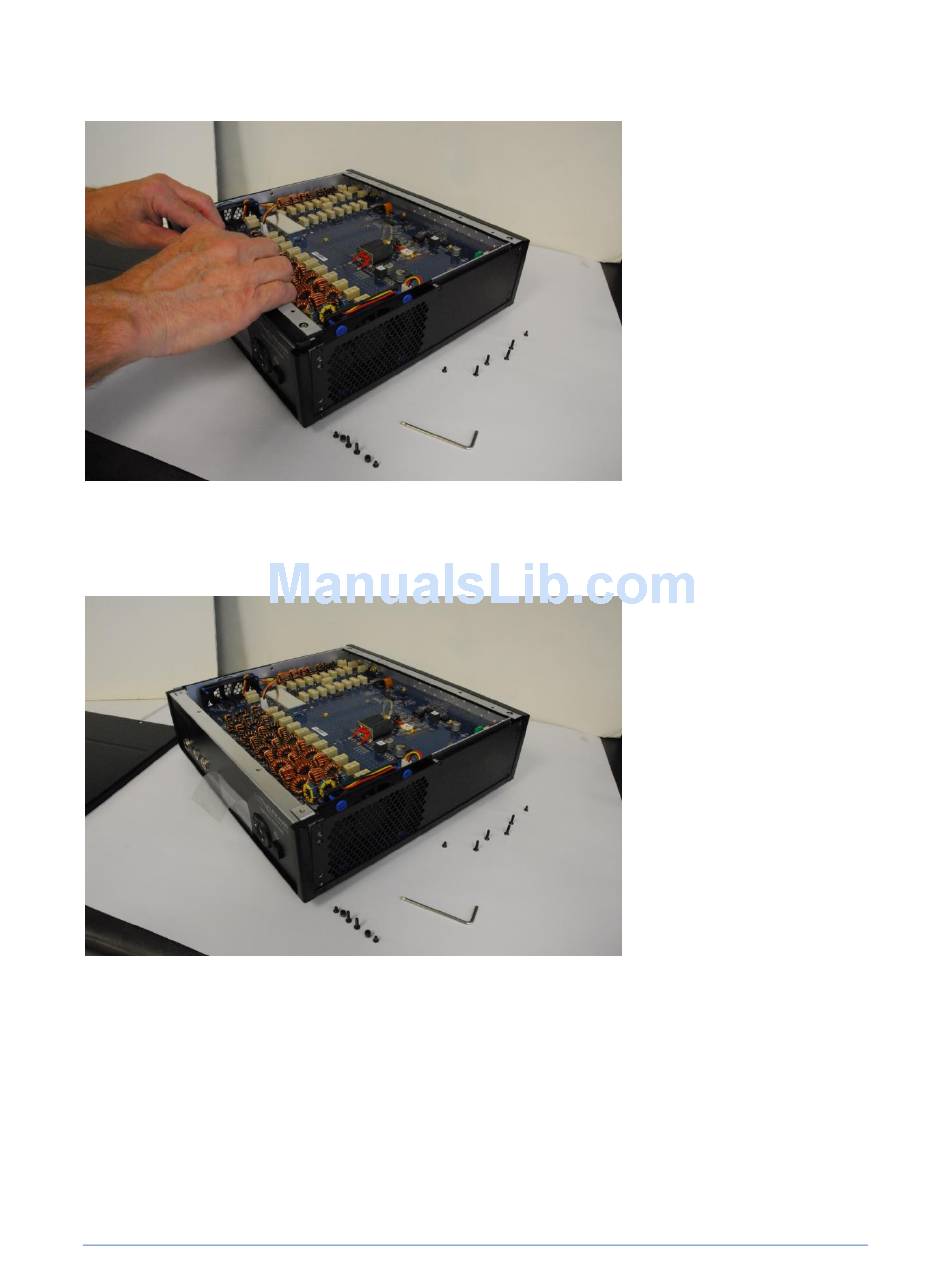

installation. The image below shows the Front Chassis Retaining Bar being removed.
The image below shows the FLEX-6000 chassis with the Front Chassis Retaining Bar removed making it
ready to remove the corner Frame Bezels. Be very careful not to disturb the PA inductor coils during the
Front Chassis Retaining Bar removal.
Page 8
© 2013 FlexRadio Systems
