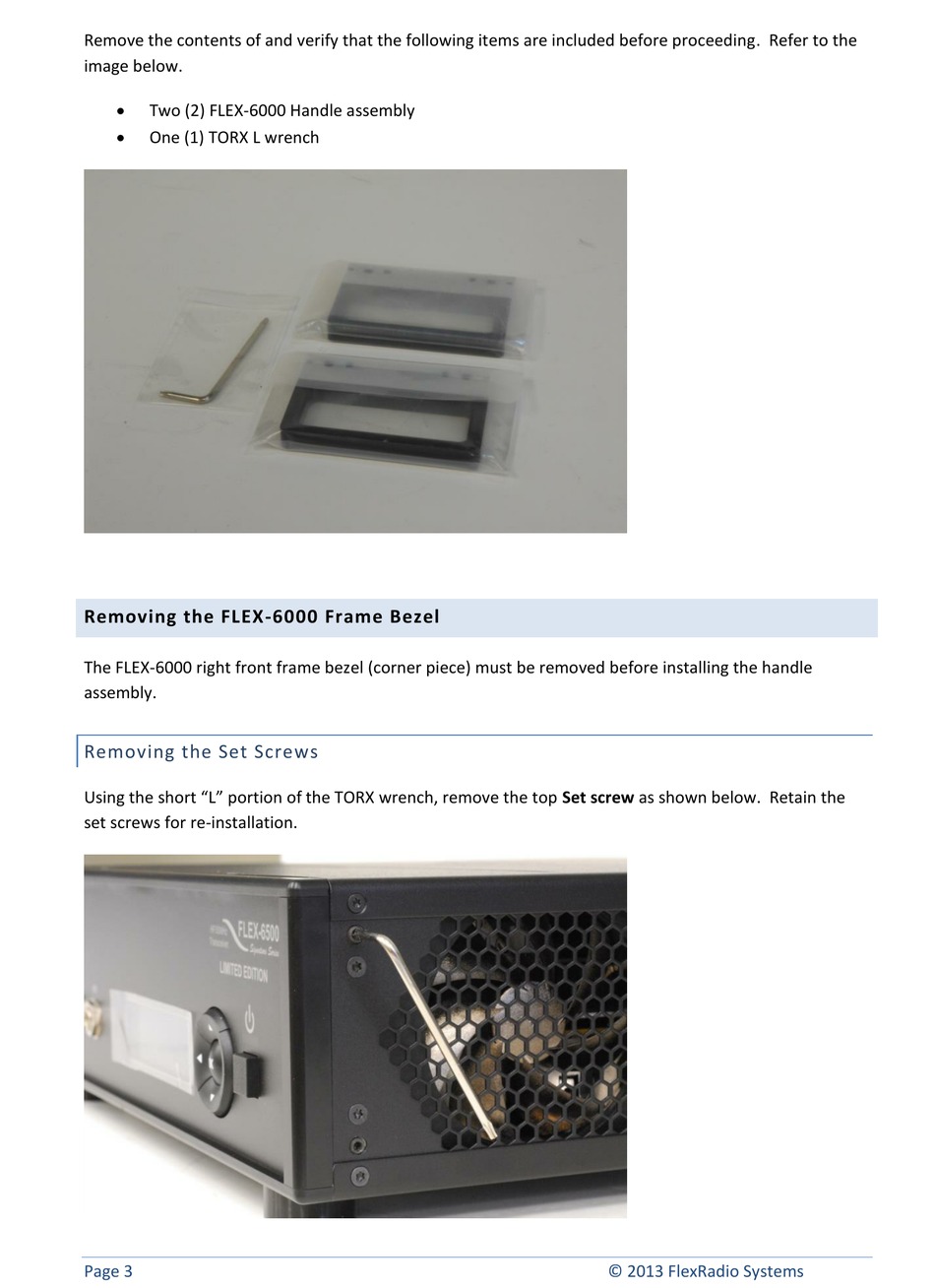

Remove the contents of and verify that the following items are included before proceeding. Refer to the
image below.
Two (2) FLEX-6000 Handle assembly
One (1) TORX L wrench
Removing the FLEX-6000 Frame Bezel
The FLEX-6000 right front frame bezel (corner piece) must be removed before installing the handle
assembly.
Removing the Set Screws
Using the short "L" portion of the TORX wrench, remove the top Set screw as shown below. Retain the
set screws for re-installation.
Page 3
© 2013 FlexRadio Systems
