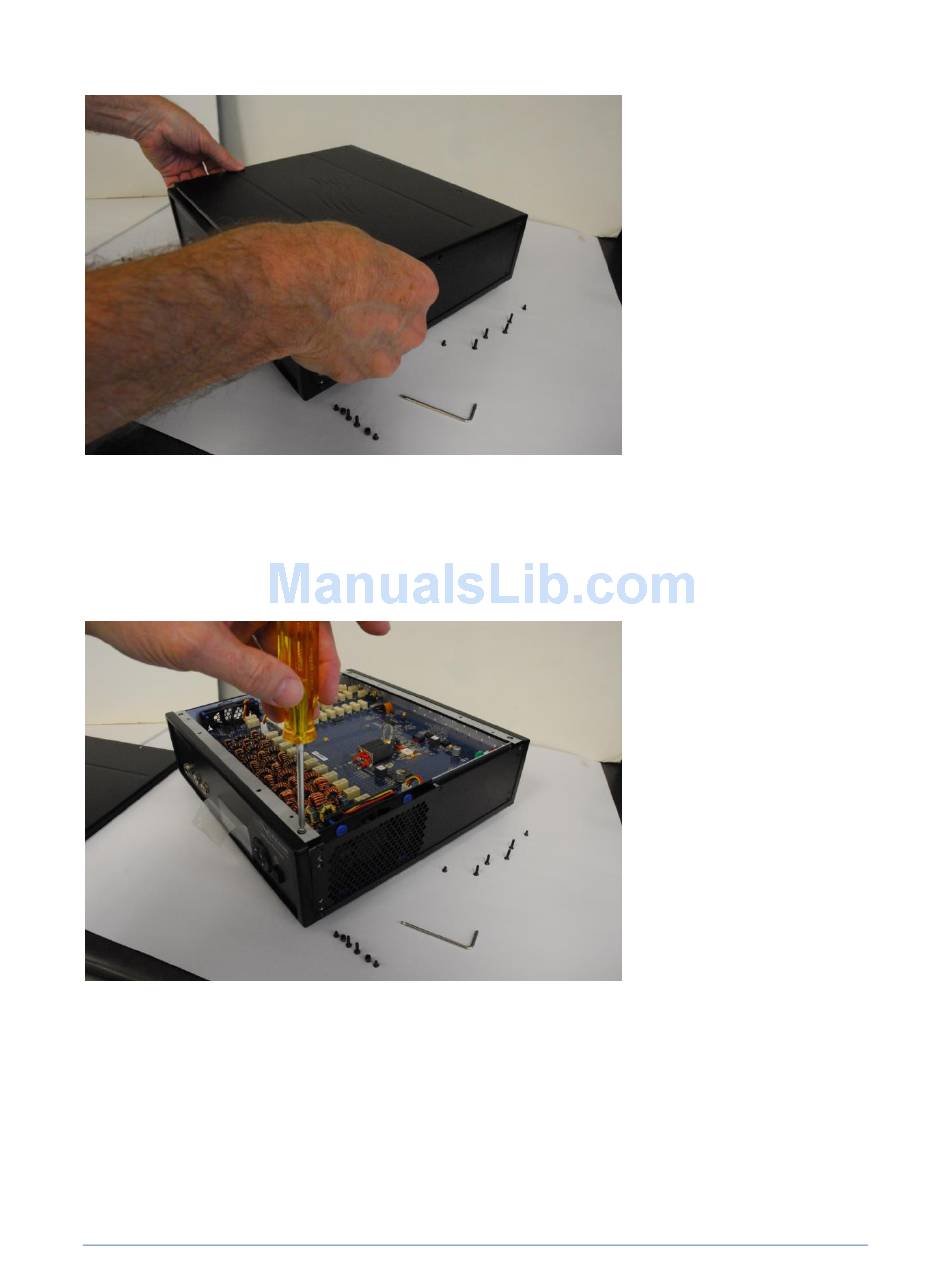

Once the top cover retaining screws have been removed, gently pull the Top Cover upwards to remove it
from the FLEX-6000. The image below shows the removal of the Top Cover.
After the Top Cover has been removed, the Front Chassis Retaining Bar must be removed in order to
remove the corner Bezels. Using a #2 Phillips screw driver remove the two (2) Front Chassis Retaining Bar
screws and washers from the right and left side of the Front Chassis Retaining Bar. Retain the Front
Chassis Retaining Bar screws and washers for re-installation. The image below shows the removal of the
right side Front Chassis Retaining Bar screw.
Page 7
© 2013 FlexRadio Systems
