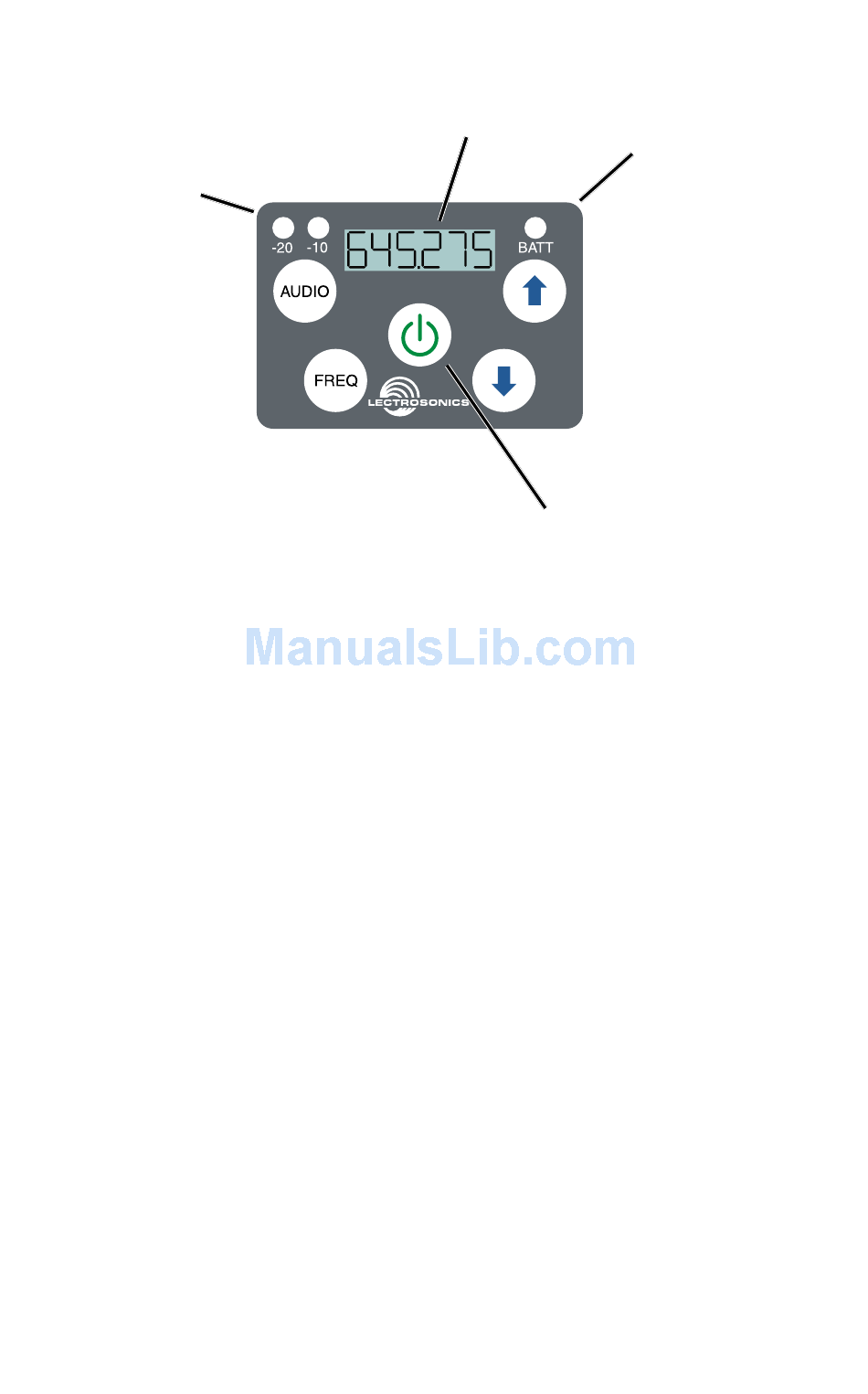

Controls and Functions

Modulation
LEDs

LCD Screen

Used to display the status of the selected function.

Power Button

Turns the unit on and off. A brief press turns power on in a Standby Mode to
make settings without interfering with other wireless systems in the vicinity.

AUDIO Button

The AUDIO button is used to adjust the audio output level and low frequency
roll-off. Each press of the button will toggle between the two settings.

Modulation LEDs

Provides a visual indication of the audio input signal level - either red or green
to indicate modulation levels.

FREQ Button

Used to set the operating frequency and toggle the LCD between the operating
frequency in MHz and a two-digit hexadecimal frequency code.
Up/Down Arrows
Used to adjust the selected function or parameter.
Battery LED
This LED glows green when the battery is good. The color changes to red
when there is only a few minutes of operation left. The LED will blink briefly,
just before the unit powers down.
2
LCD Screen
Power Button
LECTROSONICS, INC.
Battery LED
