Quick Installation Guide
x86 Rackmount Embedded Computers
Moxa Americas:
Toll-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa Europe:
Tel:
+49-89-3 70 03 99-0
Fax:
+49-89-3 70 03 99-99
Moxa India:
Tel:
+91-80-4172-9088
Fax:
+91-80-4132-1045
DA-820 Series
Edition 2.0, January 2018
Technical Support Contact Information
www.moxa.com/support
2018 Moxa Inc. All rights reserved.
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Asia-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
P/N: 1802008200011
*1802008200011*
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Moxa Technologies DA-820 Series
Summary of Contents for Moxa Technologies DA-820 Series
-

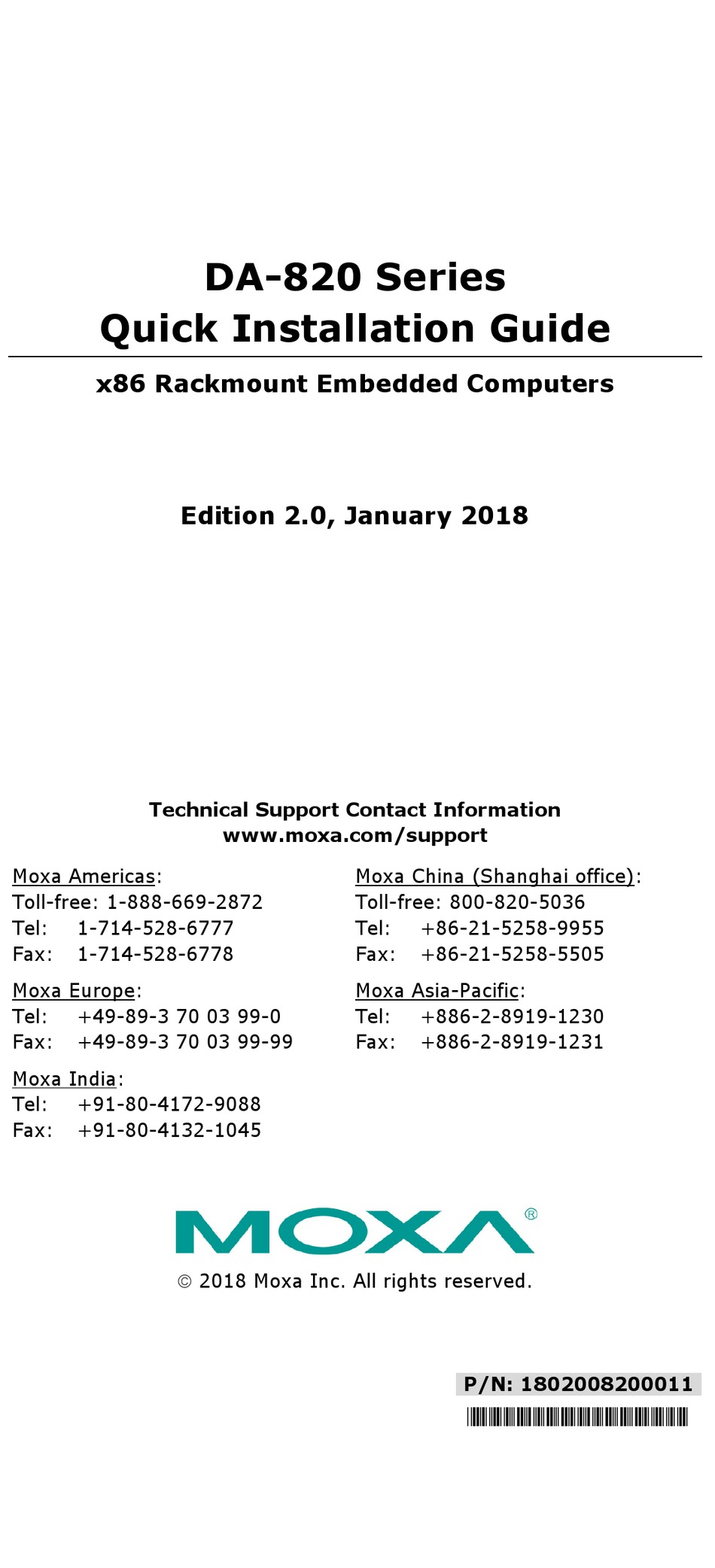

Page 1: Quick Installation Guide
DA-820 Series Quick Installation Guide x86 Rackmount Embedded Computers Edition 2.0, January 2018 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific:... -
Page 2: Package Checklist

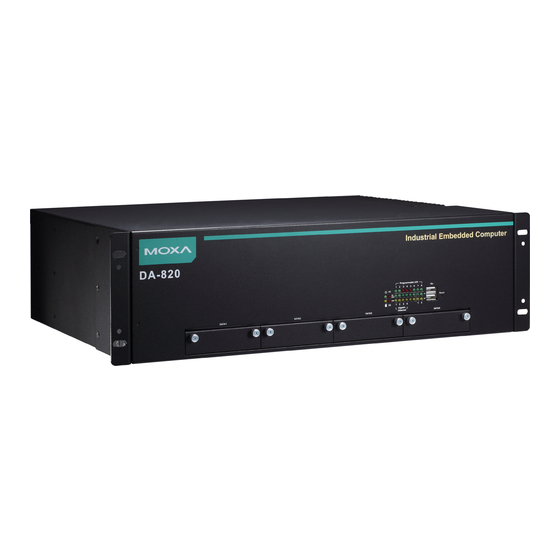

Overview The DA-820’s main operating system is based on the Intel® Core™ i3/i7/Celeron CPU and QM77 chipset, and supports x86 platforms. The DA-820 has 2 VGA connections, 6 USB ports, 4 Gigabit LAN ports, and 2 RS/232/422/485 3-in-1 serial ports, and is equipped with a 4 SATA disk interface and default support for RAID 0/1/5/10. - Page 3 Alternating Current (AC), Alternating Current (AC), Single Power Dual Power Direct Current (DC), Direct Current (DC), Single Power Dual Power Rear View For detailed power connection and surge protection information, refer to the DA-820 Hardware User’s Manual. Front Panel LEDs There are 28 LED indicators on the front panel.
- Page 4 Color Description Power Green Power is on No power input Storage Yellow/ Data is being written to or read Blinking from the storage unit Storage unit is idle The 1st power supply is on (Non-functional for Error in the 2nd power supply single power supply) The 2nd power supply is on (Non-functional for...
-
Page 5: Configuring The Ethernet Interface
Ethernet Ports The DA-820 has 4 100/1000 Mbps RJ45 Ethernet ports. Refer to the following table for pin assignments: Pin 100 Mbps 1000 Mbps TRD(0)+ TRD(0)- TRD(1)+ – TRD(2)+ – TRD(2)- TRD(1)- – TRD(3)+ – TRD(3)- The default IP addresses and netmasks of the Ethernet ports are shown below. - Page 6 # The loopback network interface auto lo iface lo inet loopback # The first LAN interface, LAN 1 auto eth0 iface eth0 inet static address 192.168.3.127 netmask 255.255.255.0 broadcast 192.168.3.255 # The second LAN interface, LAN 2 auto eth1 iface eth1 inet static address 192.168.4.127 netmask 255.255.255.0 broadcast 192.168.4.255...
