Intermatic MultiWave Installation Manual page 49

Solar/Air
Temperature
Sensor
Water
Temperature
Sensor
Freeze/Air
Temperature
Sensor
120V
240V
1 2 3 4 5 6 7 8 9
Power In
120 or 240 VAC

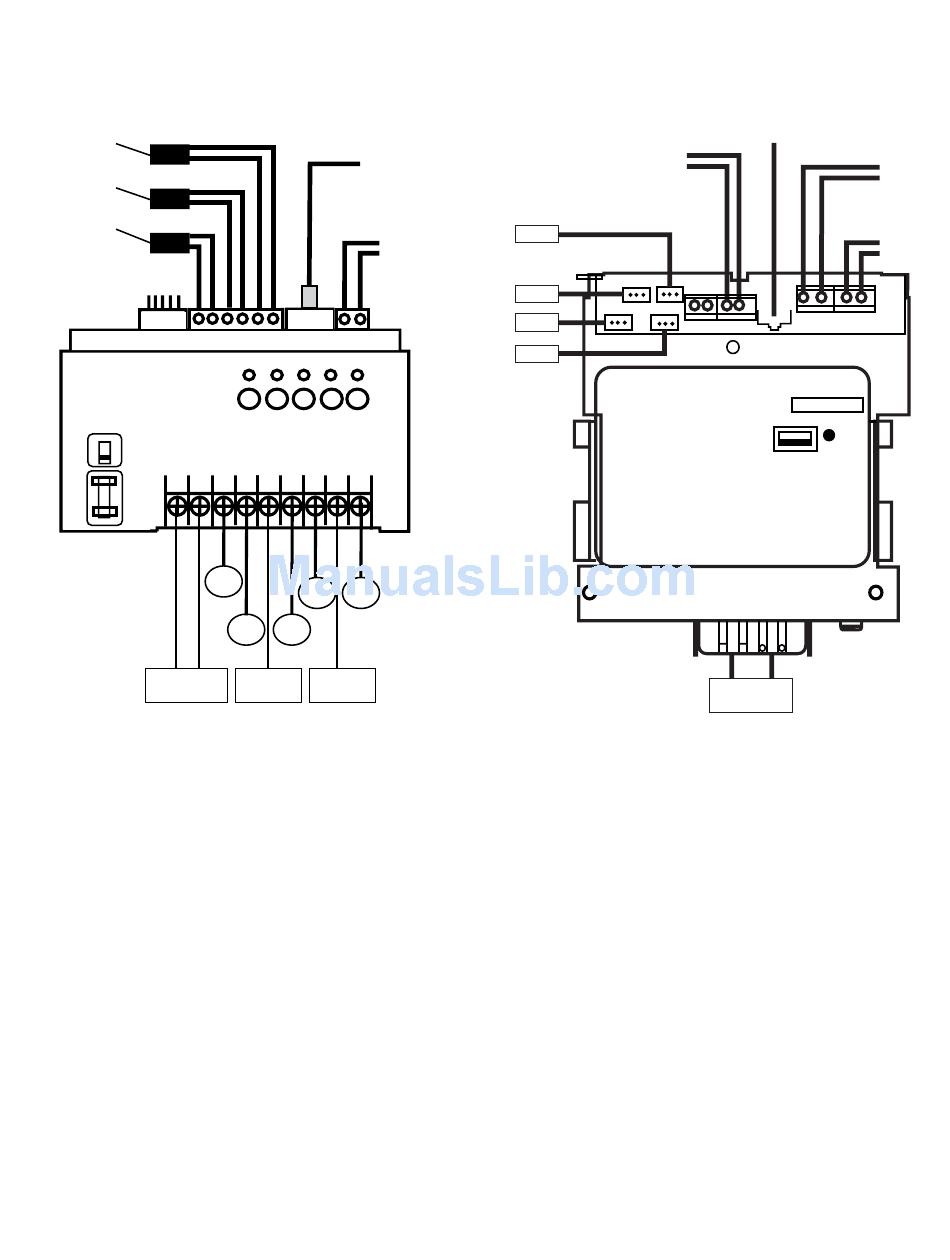

PE653 Receiver
NOTE: For circuit options, see Chapters 4 through 6.
Put a dash in the circuits that are not used.
Circuit 1 _______________________________________
Circuit 2 _______________________________________
Circuit 3 _______________________________________
Circuit 4 _______________________________________
Circuit 5 _______________________________________
SYSTEM COMPONENTS:
… Freeze (Air Temperature) Sensor
… Water Temperature Sensor
… Solar (Air Temperature) Sensor
… Antenna Extender
… Pentair Variable Speed Pump (VSP)
… AutoPilot Salt Chlorine Generator (SCG)
FREEZE OPTION IS DESIRED.
…
OTHER Z-WAVE DEVICES ARE USED.
…
MultiWave Pool & Spa Control System
Worksheet for Programming
Antenna
Extender
(CAT5)
Pentair VSP and/or SCG
OR Expansion Module
1 2 3 4 5
Circuit
Circuit Circuit
1
4 5
Circuit Circuit
2 3
L1 120
L2
VAC Wire
Heater #1
Act 2
Act 1
Act 3
Act 4
P5043ME Expansion Module
NOTE: If this system does not include P5043ME,
draw an "X" through the entire second column.
… P5043ME Expansion Module
… Water Feature (Act 3)
… Heater #1
… Heater #2
… Solar Temperature System (Act 4)
… Remote Switch
… Other Variable Speed Pump (VSP)
Other VSP
(CAT5)
Heater #2
Remote
Switch
Power In
240 VAC
