18 MultiWave Control System Installation Guide
Select breaker to match wire size
and load requirement. Observe
maximum control circuit capacity.
1-Pole
Breakers
15 A. Max.
1-Pole Breaker
NEUTRAL BUS
120 VAC
1-Speed Pump
(Circuit 1)
NOTE: The combined load on terminals 6 & 7
must NOT exceed 15 amps resistive

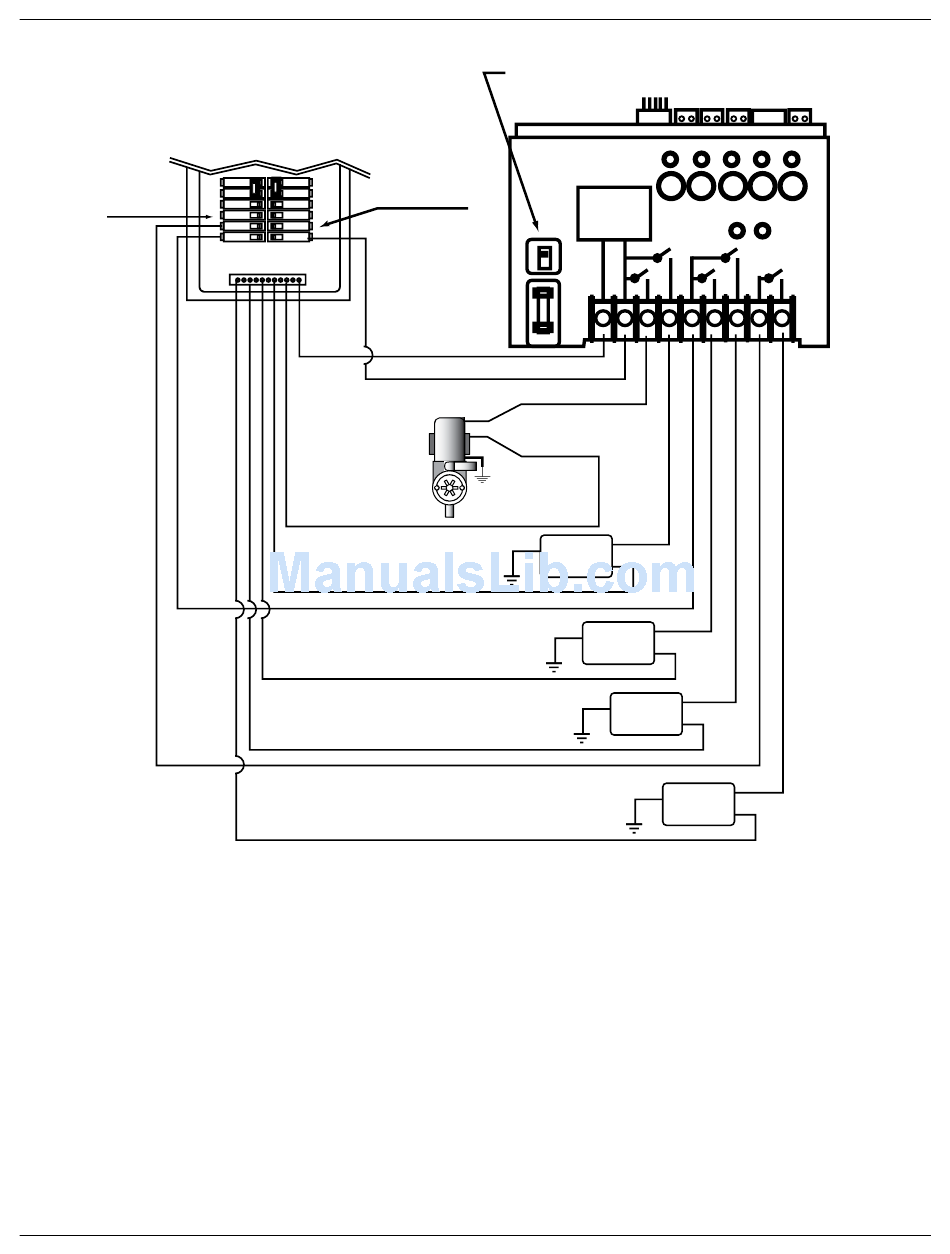

Figure 3-3. Wiring for 120V 1-Speed Pump + Any 4 120V Auxiliary Components
www.intermatic.com
Make sure that voltage selector switch is in 120V position
before applying power to terminals 1 & 2
RECEIVER
POWER
SUPPLY
120V
240V
1
HOT (Circuit 1)
NEUTRAL
Aux.
(Circuit 2)
120 VAC
Aux.
(Circuit 3)
120 VAC
120 VAC
120 VAC
1
2
3
4
5
2
3
4
5
6
7
8
9
Aux.
(Circuit 4)
Aux.
(Circuit 5)
