POOL/SPA CONTROL
ACCESSORIES
Models: PJB2175 & PJB4175
ELECTRICAL JUNCTION BOX FOR POOL/SPA LUMINAIRES
CAPACITY: - PJB2175: UP TO 2 UNDERWATER LIGHTS
- PJB4175: UP TO 4 UNDERWATER LIGHTS
...do not permit small children to operate Pool/Spa equipment or use the Pool/Spa unless they are closely supervised at all times.
...always disconnect electricity before servicing the Pool/Spa equipment.
When installing and servicing this Product and other associated equipment, basic safety precautions should always be followed,
1. Read and follow all instructions.
2. This Junction Box must be installed by a qualified person, according to National and Local Electrical Codes.
3. Install this Junction Box not less than 48 inches from inside edge of pool. USE COPPER CONDUCTORS ONLY.
4. Do not exceed the maximum ratings of individual components, wiring devices, and current carrying capacity of conductors.
5. For grounding, bonding, installing and the wiring of underwater luminaires, refer to Article 680 of the National Electrical Code.

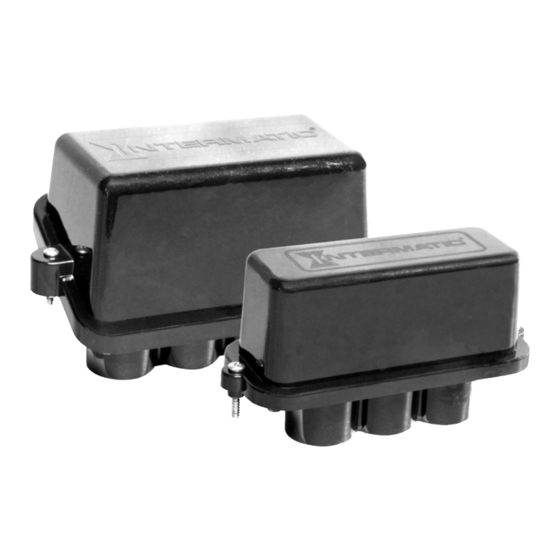

This polymeric, watertight, multi-fixture
Junction Box is especially designed for pools,
pool-spa combinations and landscape
applications. It is very versatile, rugged and
simple to install. The Junction Box provides
safe and reliable connections for up to four
high or low voltage luminaires. It will
accommodate flexible cords from #16-3 up to
#12-3 and #10-2 in any combination and
conduits from 1/2 to 1 inch, including the one
for supply conductor feed.
A grounding bar accepts solid or stranded
conductors from #16 to #8 gauge. An external
bonding lug is also provided in case your
installation requires it. An optional wall/post
mounting bracket (Model PA114) is avail-
able. The Junction Box complies with all the
requirements of UL1241 and the National
Electric Code.
DANGER! To Reduce the Risk of Injury:
IMPORTANT SAFETY INSTRUCTIONS
READ, FOLLOW AND SAVE THIS INSTRUCTION MANUAL
GENERAL INFORMATION
INSTALLATION
OPERATION &
SERVICE MANUAL
