FREEZE PROTECTION
FOR POOLS, SPAS
AND WATER FEATURES
Model: PF1102 FREEZE PROTECTION CONTROL
IN RAINPROOF (TYPE 3R) ENCLOSURE
Model: PF1102M FREEZE PROTECTION CONTROL MECHANISM
SUITABLE FOR POOL/SPA EQUIPMENT CONTROL
INPUT VOLTAGE: 240 VOLT - 60 HZ.
ELECTRICAL RATING: 3 HP - 240 VOLT AC.
...do not permit children to operate the Control Unit or use the Pool/Spa unless they are closely supervised at all times.
...test GROUND FAULT protection regularly. If it fails to reset, DO NOT USE THE POOL or SPA! Contact a qualified
service technician.
...always disconnect electricity before servicing this control or the equipment(s) connected to it. THIS CONTROL IS NOT
TO BE USED AS A POWER DISCONNECT.

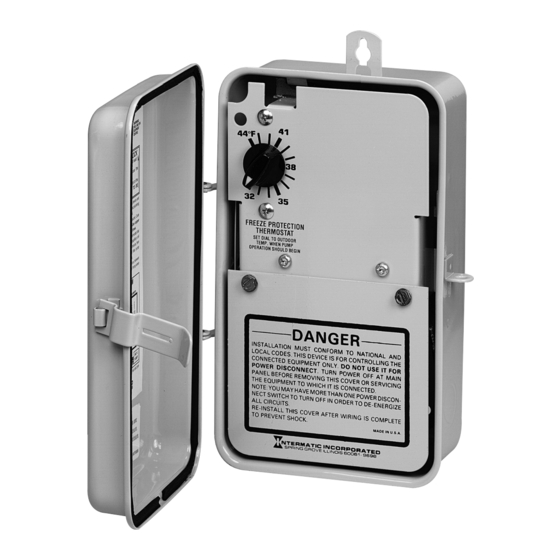

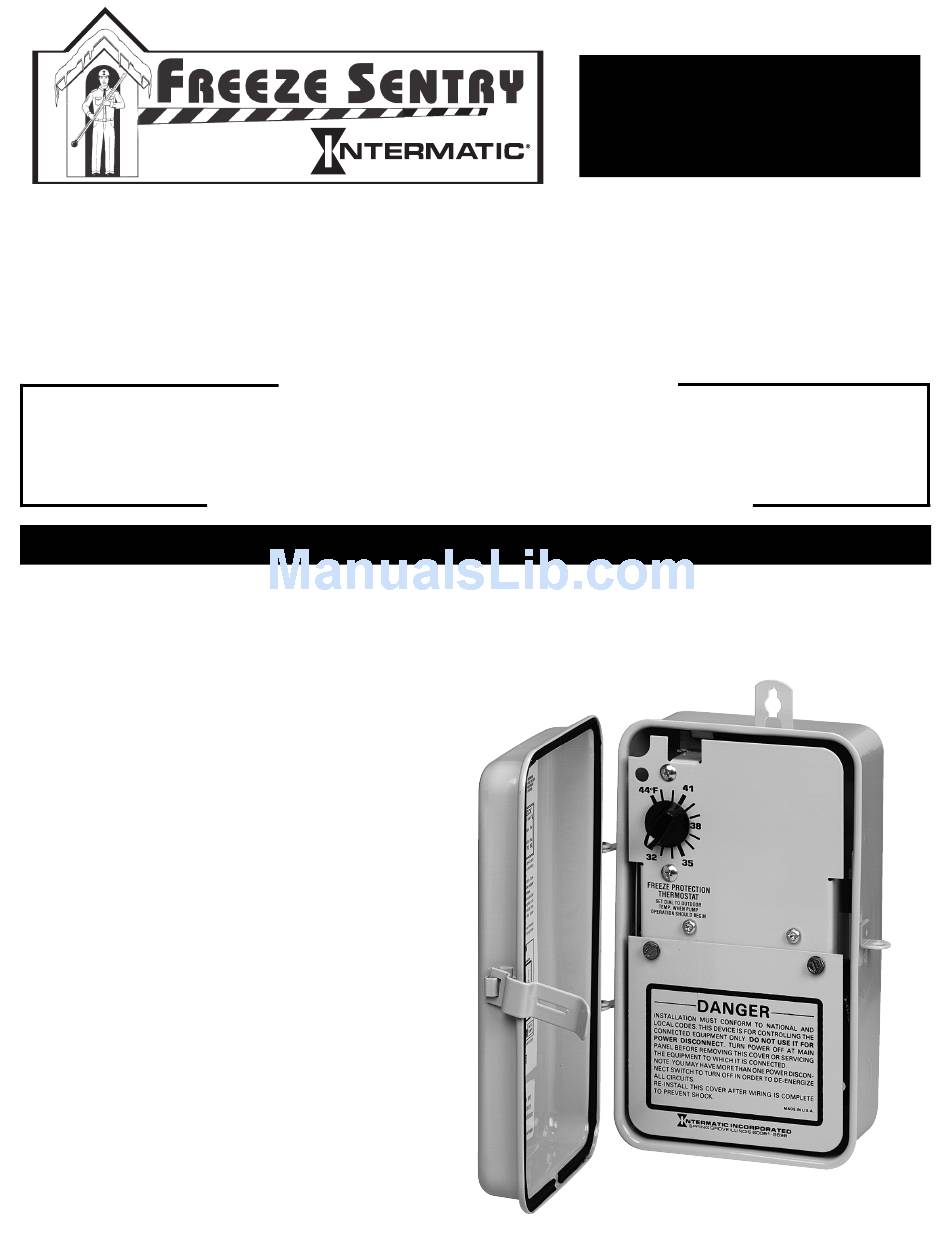

Model PF1102 Freeze Protection Control is self-contained in an indoor-outdoor, beige, rainproof
enclosure and designed to be connected to a timing or switching device. Together, they control as well
as protect the Pool/Spa equipment and
plumbing against freeze damage. The Control,
if wired according to instructions, turns ON
the Filter Pump when the air
temperature (where this Control is
located) drops below the temperature
set by the thermostat dial (between
32˚F and 45˚F). Nevertheless, the
Control is not intended to be a
substitute for the insulation, coverings or
maintenance.
Model PF1102M is a mechanism only,
functions just like Model PF1102 and
fits (snaps into) any Intermatic Pool
Panel, Models T10000R, T30000R or
T40000R Series. Both models are
designed to operate on 240 Volt, 60
cycle only.
By
DANGER! To Reduce the Risk of Injury:
READ, FOLLOW & SAVE THIS INSTRUCTION MANUAL
GENERAL INFORMATION
INSTALLATION
SERVICE MANUAL
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Intermatic PF1102
Summary of Contents for Intermatic PF1102
- Page 1 TO BE USED AS A POWER DISCONNECT. READ, FOLLOW & SAVE THIS INSTRUCTION MANUAL Model PF1102 Freeze Protection Control is self-contained in an indoor-outdoor, beige, rainproof enclosure and designed to be connected to a timing or switching device. Together, they control as well as protect the Pool/Spa equipment and plumbing against freeze damage.
- Page 2 Red , LOAD: Blue and Yellow ), then make wire connections by using twist on wire connectors. a. If the control device is an Intermatic 240 Volt Time Switch, follow diagram on top of page 4 of this manual. Make connections to Time Switch terminal block as shown in the insert above for the proper wire termination.
- Page 3 The Thermostat is factory set to turn OFF the Filter Pump when the ambient temperature rises 5˚F above its set point. TO SET TIME SWITCH, if Intermatic, follow instructions on the right. If other than Intermatic, follow instructions inside enclosure cover.
- Page 4 Protection Control and a 240 volt Time Switch and 240 volt Filter Pump If within the warranty period specified, this product fails due to a defect in material or workmanship, Intermatic Incorporated will repair or replace at its sole option, the unit free of charge. This warranty applies only to the original purchaser and is not transferable. This warranty does not apply to: (a) damage caused by accident, abuse, mishandling, dropping, acts of God, or any negligent use;...
