Summary of Contents for Intermatic MultiWave

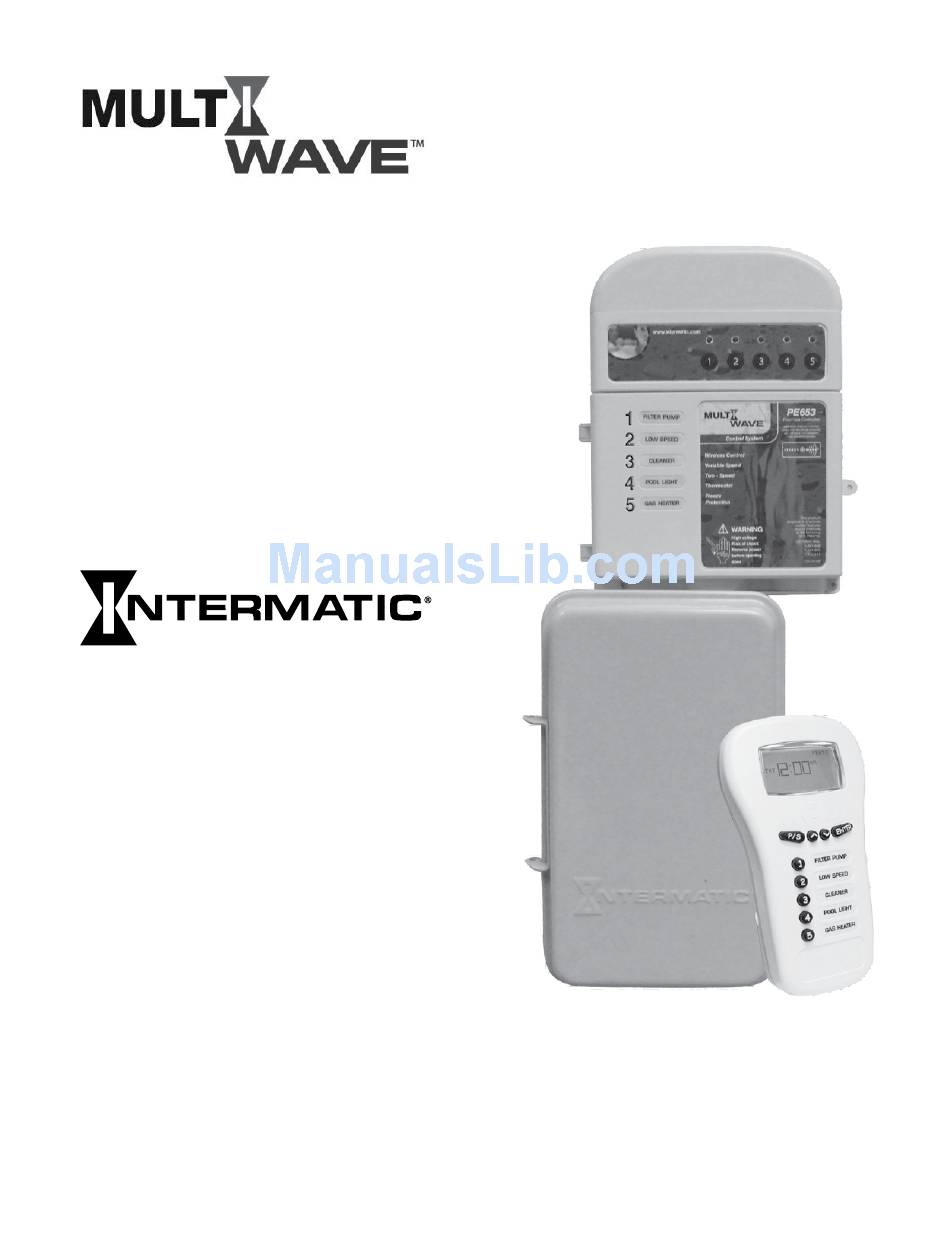

- Page 1 http://waterheatertimer.org/Digital-control-centers-and-manuals.html#PE953 158--01540 Pool & Spa Control System Installation Guide For Software Version 3.4...
- Page 2 Intermatic 7777 Winn Road Spring Grove, IL 60081 (815) 675-2321 Need Technical help? Phone: 815-675-2321 Fax: 815-675-7001 (8:00 am through 4:30 pm CT, Monday through Friday) Connect with us Intermatic.com ©2014 Intermatic Incorporated 158--01540...
-
Page 3: Two-Year Limited Warranty
If within the warranty period specified on the package, this product fails due to a defect in material or workmanship, Intermatic Incorporated will repair or replace it, at its sole option, free of charge. This warranty is extended to the original purchaser only and is not transferable. This warranty does not apply to: (a) damage to units caused by accident, dropping or abuse in handling, acts of God or any negligent use;... -
Page 4: Garantie Limitée Deux Ans
9698. Pour recourir à la garantie, aller à : http://www.intermatic.com ou composer le 815-675-7000. En raison de son attachement constant à la recherche et à l’amélioration de ses produits, Intermatic, Inc. se réserve le droit de modifier, sans préavis, les caractéristiques et le contenu de la présente documentation et décline toute responsabilité pour d’éventuels dommages, directs ou consécutifs, liés au contenu présenté. -
Page 5: Table Of Contents
..........9 MultiWave Components . - Page 6 MultiWave Control System Installation Guide Chapter 5: Basic Wiring — 240V Cleaner/Lights/Actuators ....34 Cleaner ..........34 Lights .
-
Page 7: Important Safety And Service Information
Safety Important Safety and Service Information WARNING Risk of Fire or Electric Shock • IMPORTANT SAFETY INSTRUCTIONS, READ AND FOLLOW ALL INSTRUCTIONS, SAVE THESE INSTRUCTIONS • Disconnect power at the circuit breaker(s) or disconnect switch(es) before installing or servicing. • This control must be installed according to the National Electrical Code (NEC) and local code requirements. For Canadian installations, section 10 &... -
Page 8: Informations Importantes Sur La Sécurité Et L'entretien
MultiWave Control System Installation Guide Informations importantes sur la sécurité et l’entretien AVERTISSEMENT Risque d’incendie ou de choc électrique • INSTRUCTIONS DE SÉCURITÉ IMPORTANTES, LIRE ET RESPECTER TOUTES LES INSTRUCTIONS, CONSERVER CES INSTRUCTIONS • Débrancher l’alimentation au niveau des disjoncteurs ou des sectionneurs avant de procéder à l’installation ou à... -
Page 9: Chapter 1: Overview
Worksheet for Programming at the back of this guide so that the controller can be programmed. The MultiWave Control System brings wireless control to a new level of simplicity. It features push button control and a clear, easy-to-read backlit display panel. This manual provides guidelines and instructions for installing the MultiWave Control System. -
Page 10: Multiwave Components
(PE653) Receiver The PE653 receiver is the central hub of the MultiWave. It receives commands from the PE953 controller to activate circuits. The receiver controls the ON/OFF operation of up to five circuits. It can also communicate with variable speed pumps. The receiver features an internal supercapacitor to maintain data up to 8 hours in case of power loss. -
Page 11: (Pa122) Water Temperature Sensor
Overview (PA122) Water Temperature Sensor The Intermatic Water Sensor (PA122) monitors both pool and spa water temperature, depending on the position of the diverter valves. Installation is necessary for the thermostatic control to work. (178PA28A) Freeze (Air Temperature) Sensor The freeze/air temperature sensor measures air temperature. When the air temperature drops below a user-configured setpoint, the freeze sensor turns pumps ON to circulate water through the pipes to ensure they do not freeze or burst. -
Page 12: (Pe24Va) 24-Volt Valve Actuator (Optional)
(PE30000) Load Center (Optional) The PE30000 load center provides a safe and efficient environment for the control components of MultiWave Pool/Spa Series Kits which include expansion module and/or relay modules. The PE30000 Series panel includes an eight-position 80 Amp breaker base, two mechanism slots, and four décor knockouts for GFCIs and switches. -
Page 13: Chapter 2: Mounting
Mounting Mounting the PE653RC System Follow this procedure to mount the MultiWave enclosure and PE653 receiver. Select a location to mount the receiver that is near the pool/spa equipment; at least 3m (in Canada) or 5 ft (in USA) from the inside wall of the pool, spa, or pond, unless separated from the body of water by a fence, wall, or other permanent barrier that will make the unit inaccessible to persons in the water. -
Page 14: Mounting The Pe30000 Load Center
14 MultiWave Control System Installation Guide Mounting the PE30000 Load Center Follow this procedure to mount the PE30000 load center. Select a location to mount the load center that is near the pool/spa equipment; at least 3m (in Canada) or 5 ft (in USA) from the inside wall of the pool, spa, or pond, unless separated from the body of water by a fence, wall, or other permanent barrier that will make the unit inaccessible to persons in the water. -
Page 15: Mounting The Pe653 Receiver On The Load Center
Mounting Mounting the PE653 Receiver on the Load Center Follow this procedure to mount the PE653 Receiver on the load center. Looking at the load center mounted on the supporting structure/surface, remove the knockout located on the top right side. If no knockout is present, there should be a dimple to use as a guide for drilling a 1-3/8"... -
Page 16: Installing - Ratings, 120V/240V Wiring, Power In/Out
16 MultiWave Control System Installation Guide Chapter 3: Installing — Ratings, 120V/240V Wiring, Power In/Out IMPORTANT: The installer must fill out the MultiWave Pool & Spa Control System Worksheet for Programming at the back of this guide so that the controller can be programmed. Ratings Controller Power In: 120/240 VAC, 50/60 Hz, 5 W max. -
Page 17: 120V Wiring Applications
This Installation Guide covers most typical applications. If you need more instructions for 120V or specific applications (i.e. water feature, auxiliary devices), please go to http://www.intermatic.com to access the MultiWave Configurator for more wiring diagrams or call technical support for assistance. - Page 18 18 MultiWave Control System Installation Guide Make sure that voltage selector switch is in 120V position before applying power to terminals 1 & 2 Select breaker to match wire size and load requirement. Observe maximum control circuit capacity. 1-Pole Breakers...
-
Page 19: 240V Wiring Applications
This Installation Guide covers most typical applications. If you need more instructions for 240V or specific applications (i.e. water feature, auxiliary devices), please go to http://www.intermatic.com to access the MultiWave Configurator for more wiring diagrams or call technical support for assistance. -
Page 20: Connecting A P5043Me Expansion Module Communication Cable To Receiver
20 MultiWave Control System Installation Guide Connecting a P5043ME Expansion Module Communication Cable to Receiver Follow this procedure to connect the P5043ME Expansion Module communication cable to the receiver. NOTE: The expansion module connects to the same terminals as the AutoPilot Salt Chlorine Generator. -
Page 21: Power To/From Pe653Rc With P5043Me
Installing — Ratings, 120V/240V Wiring, Power In/Out Power to/from PE653RC with P5043ME NOTE: Contact Tech Support at Intermatic for additional diagrams. Hot Line #1 RECEIVER Hot Line #2 POWER Hot Line #1 SUPPLY 120V NEUTRAL BUS 240V 2-Pole Breaker P5043ME... -
Page 22: Filter Pump Installations
22 MultiWave Control System Installation Guide Chapter 4: Filter Pump Installations This chapter includes diagrams for systems with 1-speed, 2-speed and variable speed pumps. Single Speed Pumps 1-Speed Pump Terminal/Circuit Connections for PE653RC Manual Circuit Operation Buttons (Controls corresponding numbered circuits below) - Page 23 Filter Pump Installations Receiver Power Supply 120V Neutral Bus 240V 2-Pole Breaker Hot Line #2 Hot Line #1 Hot Line 240 VAC 1-Speed Pump Figure 4-2. Wiring Circuit #1 to a 240 VAC 1-Speed Pump for PE653RC.
-
Page 24: 1-Speed Pump Terminal/Circuit Connections For Pe653Rc With P5043Me
24 MultiWave Control System Installation Guide 1-Speed Pump Terminal/Circuit Connections for PE653RC with P5043ME Solar/Air Other VSP Temperature Antenna (CAT5) Sensor Heater #2 Extender Heater #1 (CAT5) Water Comm Cable Temperature to Receiver Sensor Pentair VSP and/or SCG Freeze/Air Act 2... - Page 25 Filter Pump Installations Receiver Power Supply 120V Neutral Bus 240V 2-Pole Breaker Hot Line #2 Hot Line #1 Hot Line 240 VAC 1-Speed Pump Figure 4-5. Wiring Circuit #1 to a 240 VAC 1-Speed Pump for PE653RC and P5043ME.
-
Page 26: 2-Speed Pumps
26 MultiWave Control System Installation Guide 2-Speed Pumps 2-Speed Pump Terminal/Circuit Connections for PE653RC Manual Circuit Operation Buttons (Controls corresponding numbered circuits below) 120V 240V 1 2 3 4 5 6 7 8 9 Circuit Circuit Circuit Circuit Circuit Power In L1 120 120 or 240 VAC... - Page 27 Filter Pump Installations 2-Pole Breaker Receiver Power Supply 120V 240V Neutral Bus Hot Line #2 High Speed #1 Low Speed #2 Hot Line #1 Common Figure 4-7. Wiring Circuits #1 & #2 to a 240 VAC 2-Speed Pump for PE653RC.
-
Page 28: 2-Speed Pump Terminal/Circuit Connections For Pe653Rc With P5043Me
28 MultiWave Control System Installation Guide 2-Speed Pump Terminal/Circuit Connections for PE653RC with P5043ME Solar/Air Other VSP Temperature Antenna (CAT5) Sensor Extender Heater #2 Heater #1 Water (CAT5) Comm Cable Temperature to Receiver Sensor Pentair VSP and/or SCG AND Expansion Module... - Page 29 Filter Pump Installations Receiver Power Supply 120V Neutral Bus 240V 2-Pole Breaker Hot Line #2 High Speed #1 Low Speed #2 Hot Line #1 Common Figure 4-10. Wiring Circuits #1 & #2 to a 240 VAC 2-Speed Pump for PE653RC and P5043ME.
-
Page 30: Variable Speed Pumps
30 MultiWave Control System Installation Guide Variable Speed Pumps Connecting a Pentair Variable Speed Pump Communication Cable to Receiver If you have a Pentair Variable Speed Pump, follow this procedure to connect the variable speed pump communication cable to the receiver. This enables the pump to communicate with the receiver. -
Page 31: External Variable Speed Pump Hookup
Filter Pump Installations External Variable Speed Pump Hookup Other variable speed pumps compatible with the MultiWave receiver include Jandy , Hayward ® ® Marathon , Century and Speck ® ® ® NOTE: A CAT5-568B network cable is required to route between the P5043ME Expansion Module and the variable speed pump. - Page 32 32 MultiWave Control System Installation Guide Set Number 1 Dip Switch to On Position RS485 +12V A B COM CAT5-568B Cable Motor Control Input Figure 4-12. Connecting the Century Variable Speed Pump to the P5043ME. ® Hayward EcoStar ® Variable Speed Pump Connector...
- Page 33 Filter Pump Installations Remote Control 5 4 3 2 1 4 3 2 1 RS485 Motor Control Input Back of Pump Controller CAT5-568B Cable Figure 4-14. Connecting the Jandy Variable Speed Pump to the P5043ME. ® CAT5-568B Cable Motor Control Input Orange Blue...
-
Page 34: Basic Wiring - 240V Cleaner/Lights/Actuators
34 MultiWave Control System Installation Guide Chapter 5: Basic Wiring — 240V Cleaner/Lights/Actuators Cleaner Receiver Power Supply 120V Neutral Bus 240V 2-Pole Breaker Hot Line #1 Hot Line #1 240 VAC Cleaner Pump Hot Line #2 Figure 5-1. Wiring Circuit #3 to a 240 VAC Cleaner Pump for PE653RC. -
Page 35: Lights
Basic Wiring — 240V Cleaner/Lights/Actuators Lights Receiver Power Supply 120V Neutral Bus 240V 120 VAC GFCI 12 VAC Safety Transformer Neutral Lights Load Side of GFCI Safety Transformer Figure 5-2. Wiring Circuit #4 to a 120 VAC Light with GFCI for PE653RC. - Page 36 36 MultiWave Control System Installation Guide Receiver Power Supply 120V Neutral Bus 240V Hot Line #1 Neutral Hot Line #1 120 VAC GFCI Lights 12 VAC Safety Transformer Load Side of GFCI Safety Transformer Figure 5-3. Wiring Circuit #5 to a 120 VAC Light with GFCI for PE653RC and P5043ME.
-
Page 37: Pool/Spa Actuators
Basic Wiring — 240V Cleaner/Lights/Actuators Pool/Spa Actuators Power Supply 120V 240V Heater Heater 1 2 3 4 5 6 7 8 9 Actuator for pool/spa combo #1 HEATER 2 REMOTE SW ACT 1 ACT 2 HEATER 1 Motor Control ACT 3 ACT 4 Turn Past... -
Page 38: Chapter 6: Heaters
38 MultiWave Control System Installation Guide Chapter 6: Heaters 1 Heater on PE653 Receiver Power Supply 120V Neutral Bus 240V 2-Pole Breakers Low Voltage External Thermostat Fireman’s Switch Connection Hot Line #1 Hot Line #2 240 VAC NOTE: Low Voltage Divider... -
Page 39: Or 2 Heaters On P5043Me
Heaters 1 or 2 Heaters on P5043ME Power Supply 120V 240V Heater Heater 1 2 3 4 5 6 7 8 9 Actuator for pool/spa combo #1 HEATER 2 REMOTE SW ACT 1 ACT 2 HEATER 1 Motor Control ACT 3 ACT 4 Turn Past... -
Page 40: Heater Connection
40 MultiWave Control System Installation Guide Heater Connection The Multiwave is designed as an external 2-wire heater controller for most heaters or heat pumps. Locate the applicable instructions for connecting the heater to external control for your heater pump manufacturer on the following pages. If you do not find information regarding your specific brand, refer to the heater manufacturer’s instructions. -
Page 41: Connection For Raypak Heaters
Heaters Connection for Raypak Heaters ® Remove power. Wires from PE653 Connect two #14 gauge wires minimum, with an (or P5043ME) insulation rating of 105°C, to terminals 8 and 9 on the PE653 (or to the Heater #1 or Heater #2 hookup when using P5043ME). -
Page 42: Connection For Pentair Heaters
42 MultiWave Control System Installation Guide Connection for Pentair Heaters ® Remove power. Connect two #14 gauge wires minimum, with an insulation rating of 105°C, to terminals 8 and 9 on the PE653 (or to the Heater #1 or Heater #2 hookup when using P5043ME). -
Page 43: Connection For Sta-Rite/Pentair ® Heater With Ddtc
Heaters Connection for Sta-Rite/Pentair Heater with DDTC ® Remove power. Connect two #14 gauge wires minimum, with an insulation rating of 105°C, to terminals 8 and 9 on Wires from the PE653 (or to the Heater #1 or Heater #2 hookup Receiver (or Expansion when using P5043ME). -
Page 44: Blower/Chlorinator/Sensors
44 MultiWave Control System Installation Guide Chapter 7: Blower/Chlorinator/Sensors PE653RC with Blower Receiver Power Supply 120V Neutral Bus 240V 2-Pole Breaker Hot Line #2 Hot Line 240 VAC Blower Hot Line #1 Figure 7-1. Wiring Circuit #2 to a 240 VAC Blower for PE653RC. -
Page 45: Pe653Rc With Cleaner Pump Or Blower
Blower/Chlorinator/Sensors PE653RC with Cleaner Pump or Blower Receiver Power Supply 120V Neutral Bus 240V 2-Pole Breaker Hot Line #1 240 VAC Cleaner Pump or Blower (if 2-SPD is wired) Figure 7-2. Wiring Circuit #3 to a 240 VAC Cleaner Pump or Blower for PE653RC. -
Page 46: Pe653Rc And P5043Me With Blower
46 MultiWave Control System Installation Guide PE653RC and P5043ME with Blower Receiver Power Supply 120V Neutral Bus 240V 2-Pole Breaker Hot Line #1 Hot Line #1 240 VAC Blower Hot Line #2 Figure 7-3. Wiring Circuit #4 to a 240 VAC Blower for PE653RC and P5043ME. -
Page 47: Chlorinator
Blower/Chlorinator/Sensors Chlorinator Connecting AutoPilot Salt Chlorine Generator Control Cable to Receiver Contact your local AutoPilot dealer to verify your chlorine generator has been updated for this feature. Follow this procedure to connect the generator control cable to the receiver. This enables the generator to communicate with the receiver. -
Page 48: Sensors
48 MultiWave Control System Installation Guide Sensors Installing the Water Temperature Sensor Make sure power is disconnected to the receiver. Water Find a location to install the water temperature Middle Temperature sensor. The sensor must be installed after the filter... - Page 49 MultiWave Pool & Spa Control System Worksheet for Programming Solar/Air Other VSP Temperature Antenna (CAT5) Sensor Extender Heater #2 Heater #1 (CAT5) Water Temperature Sensor Pentair VSP and/or SCG Freeze/Air OR Expansion Module Act 2 Remote Temperature Switch Sensor Act 1...
