16 MultiWave Control System Installation Guide
Chapter 3:
Installing — Ratings, 120V/240V Wiring, Power In/Out
IMPORTANT: The installer must fill out the MultiWave Pool & Spa Control System Worksheet
for Programming at the back of this guide so that the controller can be programmed.

Ratings

Controller Power In:
120/240 VAC, 50/60 Hz, 5 W max.
•
Contact Ratings:
Load 1
120/240 VAC
•
20 A Resistive
•
17 Full Load A, 80 Lock Rotor A
•
5A Tungsten
•
Antenna Section
120/240 VAC Selector
Fuse (250 VAC - 0.1 A)
Wiring Terminals
Threaded Conduit
Connection Bushing and Hub
Switch

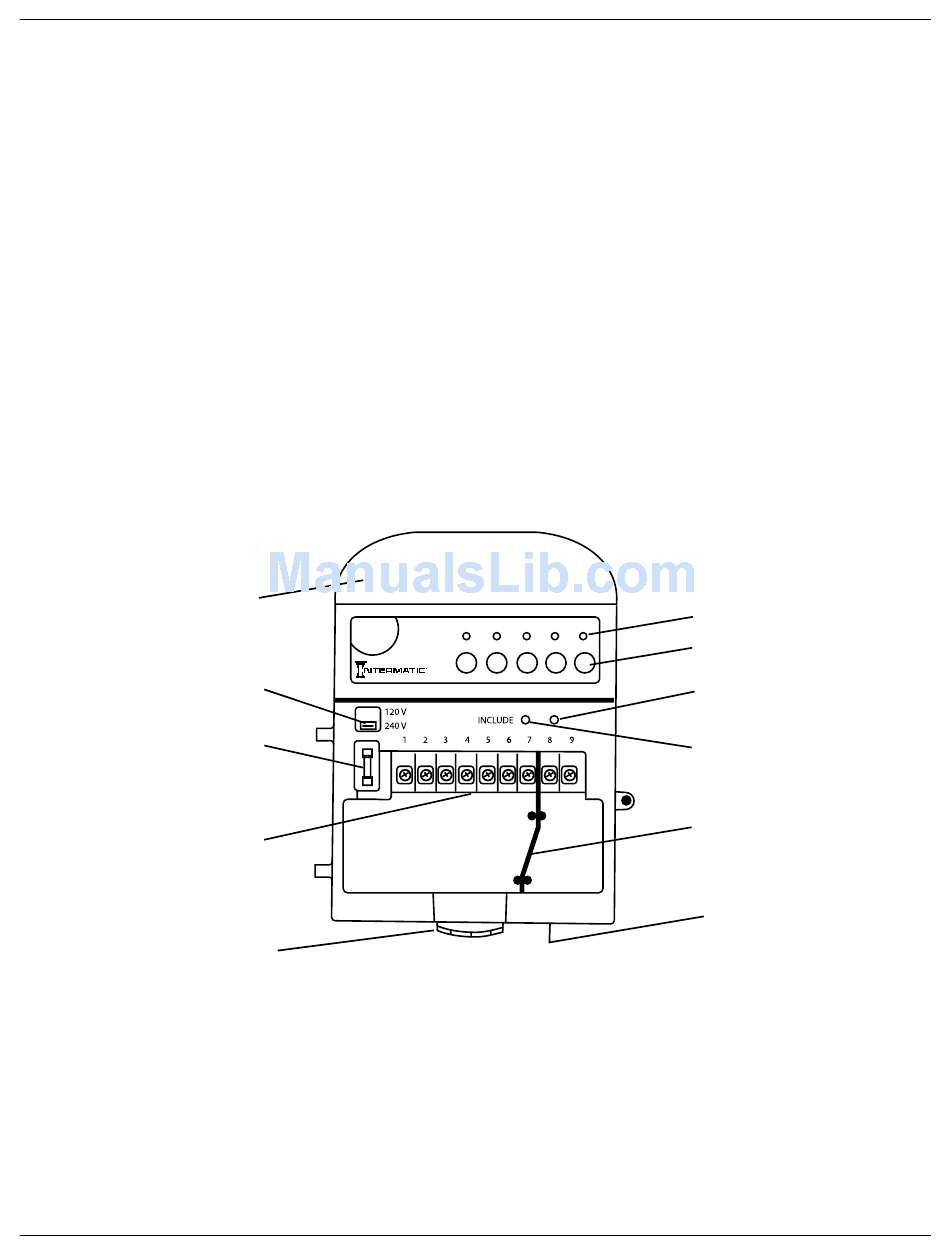

Figure 3-1. PE653 Receiver.
Loads 2-5
120/240 VAC
•
15 A Resistive
•
10 Full Load A, 60 Lock Rotor A
•
5A Tungsten
•
www.intermatic.com
Load ON Indicator
(Green LEDs)
Circuit ON/OFF Switches
Include/Exclude Switch
AC Power & Status
Indicator (Red)
Low Voltage Divider
(can be removed)
Low Voltage Knockout
