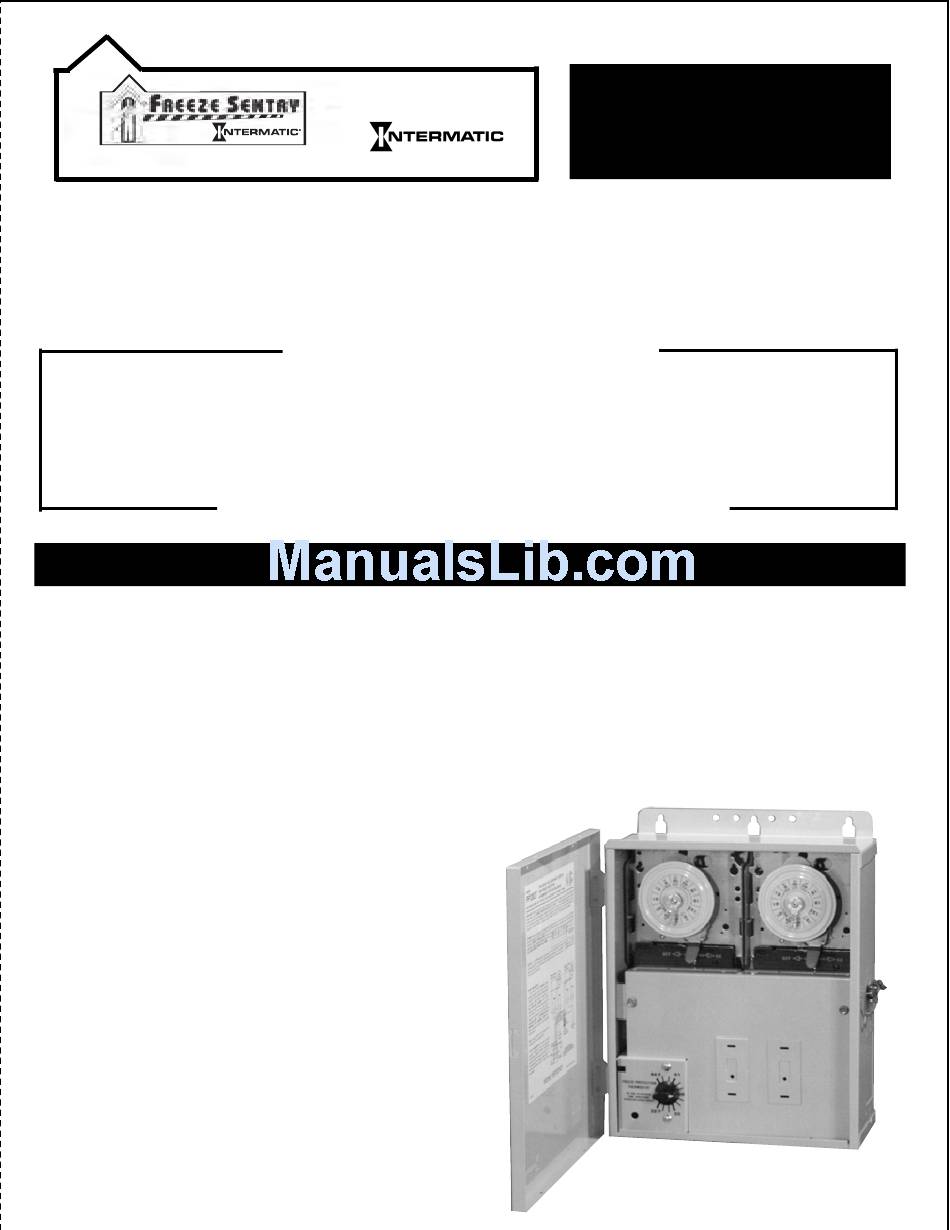

FREEZE PROTECTION FOR POOLS AND SPAS
MODEL: PF1202T
TWO CIRCUIT POOL EQUIPMENT CONTROL
WITH FREEZE PROTECTION IN RAINPROOF ENCLOSURE
ELECTRICAL RATING: 3 HP MAX. - 240 VOLT, 60 HZ.
SUITABLE FOR POOL/SPA EQUIPMENT CONTROL
...do not permit children to operate the Control Unit or use the Pool/Spa unless they are closely supervised at all times.
...test GROUND FAULT protection regularly. If it fails to reset, DO NOT USE THE POOL or SPA! Contact a qualified
service technician.
...always disconnect electricity before servicing this control or the equipment(s) connected to it. THIS CONTROL IS NOT
TO BE USED AS A POWER DISCONNECT.
READ, FOLLOW & SAVE THIS INSTRUCTION MANUAL
This Pool Equipment Control is designed to automatically operate the Filter Pump, Cleaner Pump
and also to provide freeze protection for the pool equipment. Nevertheless this product is not
intended to be a substitute for insulation, coverings, or maintenance.

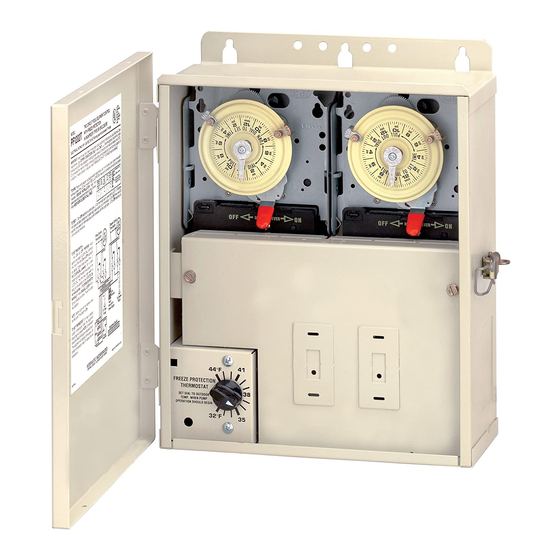

THE FILTER PUMP TIME SWITCH is located in the upper left side of the enclosure and operates
the Filter Pump, as set by the trippers on the yellow dial, on a 24 hour schedule. For setting the
schedule, refer to page 3 of this Manual.
THE CLEANER PUMP TIME SWITCH is located in the upper right side of the enclosure and
operates the Cleaner Pump (Booster Pump). The trippers of this
Time Switch should be set so that the operation of the
Cleaner Pump falls within the operation of the
Filter Pump. To avoid equipment damage, the two
Time Switches are interlocked and the Cleaner
Pump would not operate unless the Filter Pump
is already operating.
THE FREEZE PROTECTION THERMOSTAT is
located in the lower left side of the enclosure
and turns ON the Filter Pump when the air
temperature (where the Control Panel is located)
drops below the temperature set by the dial
(between 32˚F and 45˚F).
By
DANGER! To Reduce the Risk of Injury:
GENERAL INFORMATION
INSTALLATION
OPERATION &
SERVICE MANUAL
®
Advertisement
Related Manuals for Intermatic PF1202T
Summary of Contents for Intermatic PF1202T
- Page 1 READ, FOLLOW & SAVE THIS INSTRUCTION MANUAL GENERAL INFORMATION This Pool Equipment Control is designed to automatically operate the Filter Pump, Cleaner Pump and also to provide freeze protection for the pool equipment. Nevertheless this product is not intended to be a substitute for insulation, coverings, or maintenance.
- Page 2 When installing and operating this electrical control and other associated equipment, basic safety precautions should always be followed, including the following: 1. Read and follow all instructions. 2. This Control must be installed by a qualified electrician, according to National and Local Electrical Codes. 3.
- Page 3 TO SET FILTER TIME SWITCH, follow instructions on the right. The length of the daily filtration/heating cycle depends on many variables such as size, shape, and geographic location of the pool, water chemistry, type of pool equipment, usage and season of year. If not sure, contact your local pool service professional for advice.
- Page 4 TWO INDEPENDENTLY WIRED PUMPS Because of our commitment to continuing research and improvements, Intermatic Incorporated reserves the right to make changes, without notice, in the specifications and material contained herein and shall not be responsible for any damages, direct or consequential, caused by reliance on the material presented.
