14 MultiWave Control System Installation Guide

Mounting the PE30000 Load Center

Follow this procedure to mount the PE30000 load center.
Select a location to mount the load center that is near the pool/spa equipment; at least 3m
1.
(in Canada) or 5 ft (in USA) from the inside wall of the pool, spa, or pond, unless separated
from the body of water by a fence, wall, or other permanent barrier that will make the unit
inaccessible to persons in the water. NOTE: Choose a flat vertical surface or structure
capable of supporting the load center and allow space above the load center so that the
receiver can be mounted in a vertical (upright) position on top of the load center.
Remove the empty PE30000 enclosure from the kit.
2.
Remove the #10 hex head screws from the outside back of the enclosure and attach the
3.
mounting brackets.
Using the mounting brackets and hardware capable of supporting the load center, mount the
4.
enclosure to the vertical surface or structure.

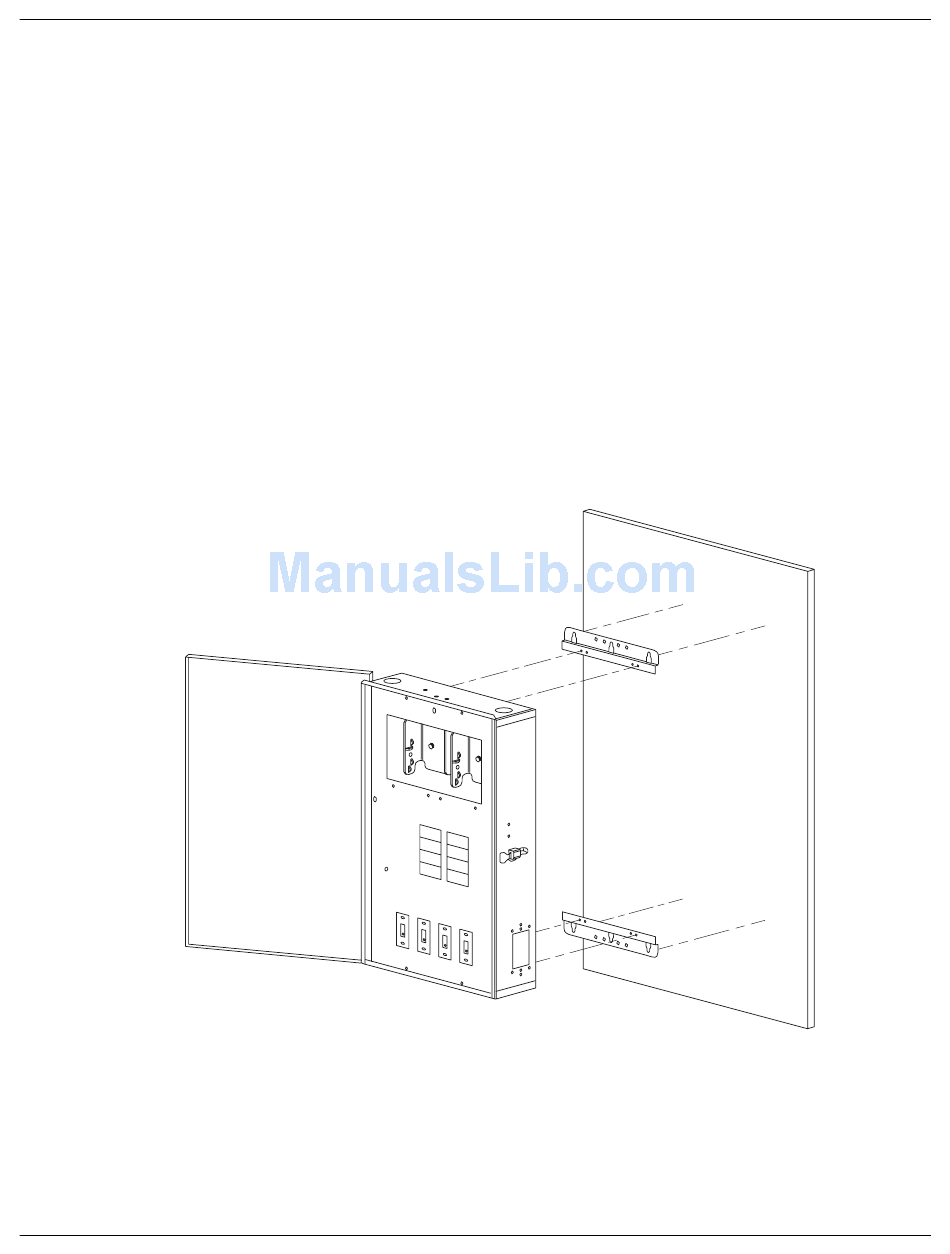

Figure 2-1. Mounting the load center.
