Blower/Chlorinator/Sensors
45
PE653RC with Cleaner Pump or Blower
Receiver
Power
Supply
120V
Neutral Bus
240V
2-Pole Breaker
Hot Line #1
240 VAC
Cleaner Pump
or Blower
(if 2-SPD is
wired)

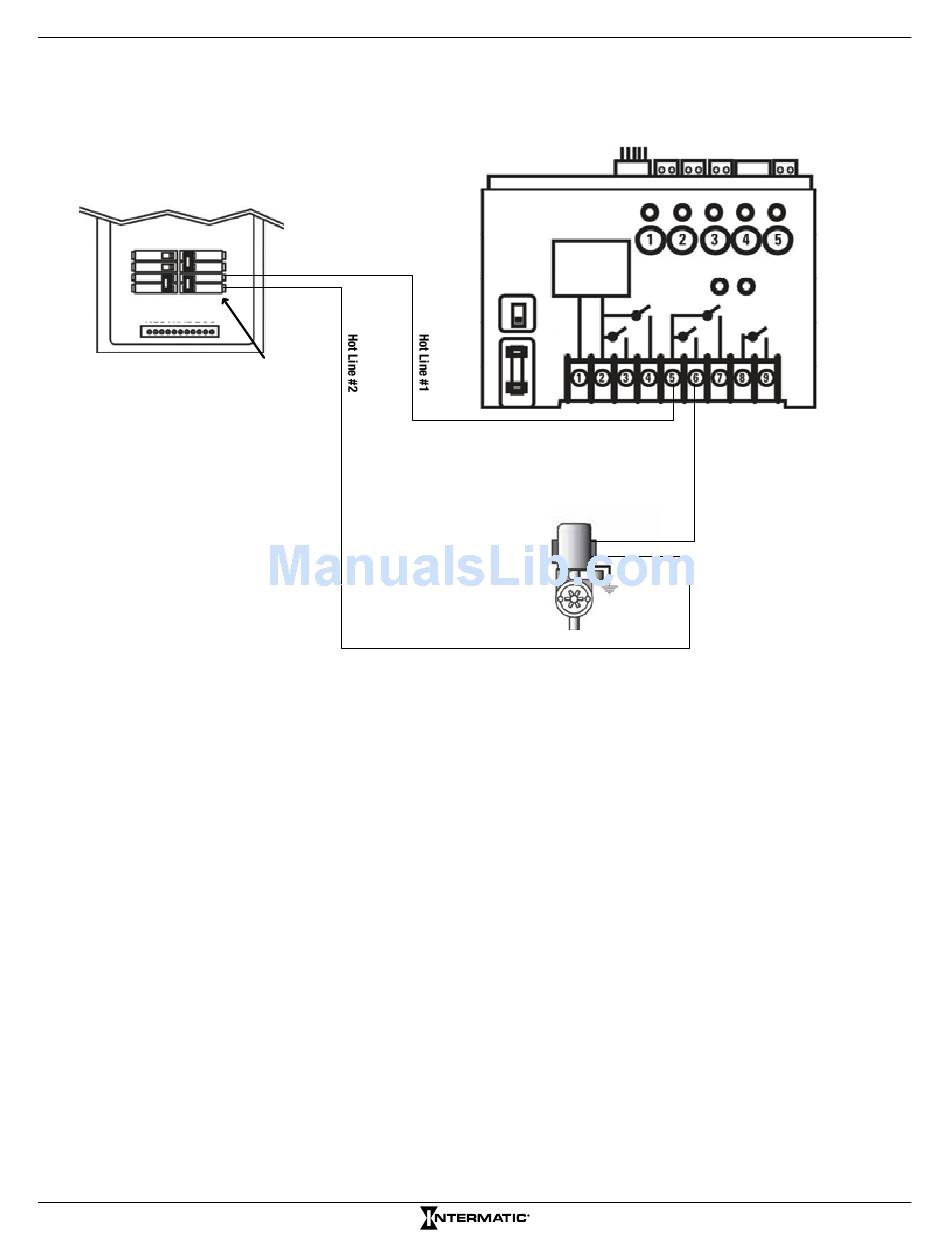

Figure 7-2. Wiring Circuit #3 to a 240 VAC Cleaner Pump or Blower for PE653RC.
