Xiamen Cashino Technology Co.,Ltd
A2L User Manual

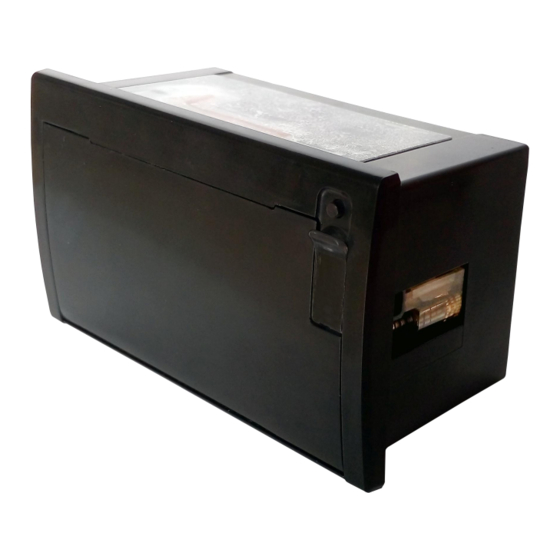

CSN-A2L Micro panel printer's
User Manual
Draw up: Lin Xiaopeng 2017.04.06
Audit： Hu Riyu 2017.04.08
standardization：Liu Zhonghua 2017.04.09
Approved： Wang Huanyong 2017.04.11
Tel：0592-5517253
Fax：0592-5231815
Supply Company：Xiamen Cashino Technology Co., Ltd.
Address：
4/F,No.318,Tongji South Road, Jimei District, Xiamen, China. 361021
Technical Specifications are subject to change without notice,ask Xiamen cashino
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CSN-A2L and is the answer not in the manual?

Questions and answers

Related Manuals for Cashino CSN-A2L

Summary of Contents for Cashino CSN-A2L

  • Page 1 Draw up: Lin Xiaopeng 2017.04.06 Audit： Hu Riyu 2017.04.08 standardization：Liu Zhonghua 2017.04.09 Approved： Wang Huanyong 2017.04.11 Tel：0592-5517253 Fax：0592-5231815 Supply Company：Xiamen Cashino Technology Co., Ltd. Address： 4/F,No.318,Tongji South Road, Jimei District, Xiamen, China. 361021 Technical Specifications are subject to change without notice,ask Xiamen cashino...
  • Page 2 Xiamen Cashino Technology Co.,Ltd A2L User Manual technology Co.,Ltd. for the latest version R E V I S O N R E C O R D Change Prepared Data Modify the content page Review number 2017040 First draft Xiaopeng Riyu...

  • Page 3: Table Of Contents

    Xiamen Cashino Technology Co.,Ltd A2L User Manual Content 1.Product Description............................5 2.Feature..................................5 3.Product specification............................5 3.1Printer dimention............................5 3.2Installation method........................... 6 4.Printer Parameter..............................6 5.Paper roll placement............................7 6.Description for interface pin definition......................7 7. Panel LED indication............................8 8.Command instruction............................8 8.1Command list.............................8 8.2 Command details.............................9...
  • Page 4 Xiamen Cashino Technology Co.,Ltd A2L User Manual Print NV bitmap.............................30 ④Tab Commands..........................31 Horizontal tab............................31 Horizontal tab position setting......................32 ⑤One-dimension bar code command....................33 1D bar code readable character(HRI) print position setting............33 1D bar code height setting........................33 1D bar code width setting........................33 1D bar code printing..........................

  • Page 5: Product Description

    Xiamen Cashino Technology Co.,Ltd A2L User Manual 1.Product Description Name：Micro panel thermal printer Model：A2L Installation Port Size：103.3(W)*57.3(H)mm Insert Depth：50mm Application：Medical equipment, Measuring equipment, Security equipment, Analyzing Instrument & Meter 2.Feature ① Elegant style ②Support for ESC/POS print command ③Easy paper loading ④Low noise, thermal printing...

  • Page 6: Installation Method

    Xiamen Cashino Technology Co.,Ltd A2L User Manual 3.2Installation method Put the printer into the front of device as the picture 1 and picture 2 , Install the fixed block from the back, lock the screw as the picture 3 Note: the machine panel could be adjusted the thickness range from 1 to 6CM...

  • Page 7: Paper Roll Placement

    Xiamen Cashino Technology Co.,Ltd A2L User Manual Physical Installation port size 103.3*57.3mm Color Beige/Black Operating temperature 0°C ~ 50°C Environment Operating humidity 20% ~ 85%RH Storage temperature -20°C ~ 60°C Storage humidity 5% ~ 90%RH 5.Paper roll placement 1.Open the top cover of the printer；...

  • Page 8: Panel Led Indication

    Xiamen Cashino Technology Co.,Ltd A2L User Manual 4.GND Ground Input Receive data ５.RXD Output Transfer data ６.TXD 7. Panel LED indication After power off, the indicator will be on and off twice, with an interval of one second, indicating that...

  • Page 9: Command Details

    Xiamen Cashino Technology Co.,Ltd A2L User Manual ESC R n Select International character ESC t n Select the character code page ESC * Bitmap vertical modulus data fillings GS v 0 Bitmap horizontal modulus data print GS * Define download bitmap...

  • Page 10: Enter

    Xiamen Cashino Technology Co.,Ltd A2L User Manual Support model Notes None Example None Enter Name Enter ASCII ：CR Code DEC ：13 HEX ：0D Function Adjust print position to initial position of the same line. Range None Defaults None Support Model...

  • Page 11: ②Printing Set Commands

    Xiamen Cashino Technology Co.,Ltd A2L User Manual ②Printing set commands Set line space as n dots Name Set line space as n dots ASCII ：ESC 3 n Code ：27 51 n ：1B 33 n Function Set line space as n dots Range 0 ≤...

  • Page 12: Set Print Position

    Xiamen Cashino Technology Co.,Ltd A2L User Manual Set print position Name Set print position ASCII ：ESC $ nL nH Code DEC ：27 36 nL nH HEX ：1B 24 nL nH Function Set left side blank area as（nL + nH × 256）dots 0 ≤...

  • Page 13: Set Character Size

    Xiamen Cashino Technology Co.,Ltd A2L User Manual DEC ：27 33 n HEX ：1B 21 n Set character printing methods (font,highlight,inversion,bold,double hight,double width and underline),parameter n bit definition as below: Bit Function Value 0 Font Normal Small character 1 Undefined Function...

  • Page 14: Set、Remove White Printing

    Xiamen Cashino Technology Co.,Ltd A2L User Manual width height 1(Normal) 1(Normal) 2(double width) 2(double height) Range None Defaults n = 0 Support Model This command is effective with Chinese and other foreign languages, Notes except for HRI character. The command setting is disable when ESC@, printer reset or power off.

  • Page 15: Set、Remove Underline

    Xiamen Cashino Technology Co.,Ltd A2L User Manual 1b 40 1d 42 01 Example 30 31 32 0d 0a 30 31 32 0d 0a remove underline 、 Name Set、 remove underline ASCII ：ESC - n Code ：27 45 n ：1B 2D n...

  • Page 16: Set、Remove 90°Revolving Printing

    Xiamen Cashino Technology Co.,Ltd A2L User Manual Notes None Example None remove 90°revolving printing 、 Name Set 、 remove 90°revolving printing ASCII ：ESC V n Code ：27 86 n ：1B 56 n Set or remove 90° revolving printing Function When n is equal to 0 or 48,remove 90°revolving printing.

  • Page 17: Set Chinese Mode

    Xiamen Cashino Technology Co.,Ltd A2L User Manual 1B 40 1B 61 01 30 31 32 0D 0A 1B 40 1B 61 00 30 31 32 0D 0A Set Chinese mode Name Set Chinese mode ASCII ：FS & Code ：28 38 ：1C 26...

  • Page 18: Define User Customized Characters

    Xiamen Cashino Technology Co.,Ltd A2L User Manual Default Support Model When cancel customized characters ， automatically select the internal Notes character set. Example None Define user customized characters Name Define user customized characters ASCII ：ESC & y c1 c2 [x1 d1 ... d (yx1)] ... [xk d1 ... d(y x k)] Code ：27 38 y c1 c2 [x1 d1 ...
  • Page 19 Xiamen Cashino Technology Co.,Ltd A2L User Manual Graphic: When set font A(12 24). d1= <0F>H d4 = <30>H d7 = <40>H ..d2 = <03>H d5 = <80>H d8 = <40>H ..d3 = <00>H d6 =<00>H d9 = <20>H ..

  • Page 20: Cancel User Customized Characters

    Xiamen Cashino Technology Co.,Ltd A2L User Manual FF FF FF 1b 25 01 20 20 0D 0A 1b 3f 20 30 20 30 20 0d 0a Cancel user customized characters Name Cancel user customized characters ASCII ：ESC ? n Code ：27 63 n...

  • Page 21: Select Character Code

    Xiamen Cashino Technology Co.,Ltd A2L User Manual Latin America Korea Slovenia China Range 0 ≤ n ≤ 15 Defaults Support Model Notes 1B 40 1B 52 00 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F 30 31 32 33 34 35 36 37 38...
  • Page 22 Xiamen Cashino Technology Co.,Ltd A2L User Manual CP864 [Arabic] ISO-8859-1 [West Europe] CP737 [Greek] WCP1257 [Baltic] Thai CP720[Arabic] CP855 CP857[Turkish] WCP1250[Central Europe] CP775 WCP1254[Turkish] WCP1255[Hebrew] WCP1256[Arabic] WCP1258[Vietnam] ISO-8859-2[Latin 2] ISO-8859-3[Latin 3] ISO-8859-4[Baltic] ISO-8859-5[Cyrillic] ISO-8859-6[Arabic] ISO-8859-7[Greek] ISO-8859-8[Hebrew] ISO-8859-9[Turkish] ISO-8859-15 [Latin 9]...

  • Page 23: ③Graphic Printing Command

    Xiamen Cashino Technology Co.,Ltd A2L User Manual ③Graphic printing command Fill Graphics vertical module data Name Fill Graphics vertical module data ASCII ：ESC * m Hl Hh [d]k Code ：27 42 m Hl Hh [d]k HEX ：1B 2A m Hl Hh [d]k...

  • Page 24: Print Graphics Horizontal Module Data

    Xiamen Cashino Technology Co.,Ltd A2L User Manual The command fills only the printing buffer, graphics printing can start only after receiving the printing commands.Printing buffer will be cleared after graphic printing. If you need to print higher graphics,you can divide it into several sections which has 8（m =...

  • Page 25: Define Downloaded Bitmap

    Xiamen Cashino Technology Co.,Ltd A2L User Manual 0 ≤ d ≤ 255 k = (Hl + Hh×256)×(yL + yH×256) XX80： 0 ≤ m ≤ 3；48 ≤ m ≤ 51 1≤ xL + xH×256 ≤ 72 0 ≤ yL ≤ 255，0 ≤ yH ≤ 255 0 ≤...

  • Page 26: Print Downloaded Bitmap

    Xiamen Cashino Technology Co.,Ltd A2L User Manual x*y ≤ 1536 0 ≤ d ≤ 255 Default None Support Model If x*y is out of the specified range, this command will be forbidden. The d indicates bitmap data. Data (d) specifies the printing bit as 1 and the not printing bit as 0.

  • Page 27: Define Nv Bitmap

    Xiamen Cashino Technology Co.,Ltd A2L User Manual ：29 47 m HEX ：1D 2F m Prints a downloaded bitmap using the mode specified by m. Using the mode that m appointed to print downloaded bitmap Model Function 0, 48 Normal 1, 49...
  • Page 28 Xiamen Cashino Technology Co.,Ltd A2L User Manual k = (xL+xH*256)*(yL+yH*256)*8 Totaled the defined data Area = 64 k bytes Default None Support Model Frequent writing command executions may damage the NV memory. Therefore, it is recommended to write the NV memory no more than 10 times per day.
  • Page 29 Xiamen Cashino Technology Co.,Ltd A2L User Manual group [xL xH yL yH d1...dk] is NV bitmap 01H, and the last data group [xL xH yL yH d1...dk] is NV bitmap n. The total agrees with the number of NV bitmaps specified by the command FS p.

  • Page 30: Print Nv Bitmap

    Xiamen Cashino Technology Co.,Ltd A2L User Manual 1B 40 1C 71 01 03 00 03 00 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF...

  • Page 31: ④Tab Commands

    Xiamen Cashino Technology Co.,Ltd A2L User Manual ：28 112 n m HEX ：1C 70 n m Print NV bitmap n using the mode specified by m. Mode 0, 48 Normal Function 1, 49 Double-width 2, 50 Double-height 3, 51 Quadruple 0 ≤...

  • Page 32: Horizontal Tab Position Setting

    Xiamen Cashino Technology Co.,Ltd A2L User Manual HEX ：09 Function Move the print position to the next tab position Range None Defaults None Support model Tab position set by ESC D If the tab position is not set(the default is no horizontal position),this...

  • Page 33: ⑤One-Dimension Bar Code Command

    Xiamen Cashino Technology Co.,Ltd A2L User Manual Example 1B 44 04 06 08 0A 00 09 30 09 31 09 32 09 33 0D 0A ⑤One-dimension bar code command 1D bar code readable character(HRI) print position setting Name 1D bar code readable character(HRI)print position setting ASCII ：GS H n...

  • Page 34: Bar Code Printing

    Xiamen Cashino Technology Co.,Ltd A2L User Manual Name 1D bar code width setting ASCII ：GS w n Code ：29 119 n HEX ：1D 77 n Parameter n specifies the unit of a bar code in dots： Function Range 1 ≤ n ≤ 6...
  • Page 35 Xiamen Cashino Technology Co.,Ltd A2L User Manual k = 11，12 [when k = 7,8,11,12， d1 = 48 ] JAN13 fixed k = 12，13 48≤d≤57 (EAN13) JAN8 fixed k = 7，8 48≤d≤57 (EAN8) 48≤d≤57， chan 0~9，A~Z 65≤d≤90， CODE39 geab 1≤k SP，$，%，*，...
  • Page 36 Xiamen Cashino Technology Co.,Ltd A2L User Manual +，-，.，/ d = 32， 36， 37， able 42，43，45， 46，47 2≤n≤255 (Interlea 48≤d≤57 （even ved 2 of able numbers） 48≤d≤57， 65≤d≤68， 97≤d≤100， CODAB d = 36， 43， 45， 0~9， A~D， a~d 1≤n 46，47，58 $，+，-，.，/，:...
  • Page 37 Xiamen Cashino Technology Co.,Ltd A2L User Manual Whatever the input data length is 11 or 12,the check bit is automatically inserted or corrected Initial character,central split character,and terminator are inserted automatically When print UPCE（m = 1 or 66）,Please pay attention as following:...
  • Page 38 Xiamen Cashino Technology Co.,Ltd A2L User Manual When middle of the data encounter ”*”, the encoder regard it as terminator, the other data as the normal data; The check bit could not calculate and add automatically When print ITF25(m = 5 or 70), please pay attention as following:...

  • Page 39: ⑥Status Querying Commands

    Xiamen Cashino Technology Co.,Ltd A2L User Manual character set) or switch character Function character FNC1~FNC4 use C1H~C4H and input it User input data AI,which do not need “(“”)” for indication,encoding system inserted automatically,otherwise it will be wrong.For example,GS k 74 18 "019501234567890*", 01 is AI,the following will be wrong:GS k 74 18 "(01)9501234567890*"...

  • Page 40: Real-Time Transmission Status

    Xiamen Cashino Technology Co.,Ltd A2L User Manual the printer will wait until the host is ready. When XON/XOFF control is selected, the printer transmits only 1 byte without confirming the status of the DSR signal. This command is executed when data is generated in the print buffer.Therefore, there may be a time interval between receiving the...
  • Page 41 Xiamen Cashino Technology Co.,Ltd A2L User Manual N=3:transmit error status N=4:transmit paper sensor status Range 1 ≤ n ≤ 4 Defaults None Support model •Printer return to the relative status immediately after receiving the command • this command try not to put in command list between 2 or more bite .
  • Page 42 Xiamen Cashino Technology Co.,Ltd A2L User Manual bite Hexadecim decimalism Function Fixed to be 0 Fixed to be 1 Turn off upper cover Open upper cover Not press feed key press feed key Fixed to be 1 Paper adequate Paper shortage...

  • Page 43: ⑦Printing Qr Code

    Xiamen Cashino Technology Co.,Ltd A2L User Manual Fexed to be 0 Unrecoverable error: abnormal input voltage Automatic recovery error: refers to the printing head overheating error. When the printing head overheating error occurs, wait for a period of time.When the printing head temperature drops, the error will be automatically recovered.

  • Page 44: Setting Error Correction Level Of 2-D Bar Code

    Xiamen Cashino Technology Co.,Ltd A2L User Manual Support model Notes Setting mode type of QR code to [n dot × n dot]. Example None Name Mode type of QR code Setting error correction level of QR code Name Setting error correction level of QR code ASCII ：GS (...

  • Page 45: Printing Two-Dimension Bar Code

    Xiamen Cashino Technology Co.,Ltd A2L User Manual fn=80 m=48 0 ≤ d ≤ 255 k = (pL + pH×256 ) - 3 Defaults Support model Store QR code data (d1...dk) to data buffer. Notes ((pL + pH×256) - 3) bytes is processed as a graphic data after the m (d1...
  • Page 46 Xiamen Cashino Technology Co.,Ltd A2L User Manual Setting QR code graph information The detailed graph information is as follows: Transmit data Hexadecim Decimal Data type Header 1byte Flag 1byte Width 30H-39H 48-57 1-5byte Separator 1byte Height 30H-39H 48-57 1-5byte Separator...
  • Page 47 Xiamen Cashino Technology Co.,Ltd A2L User Manual r: describes e rror correction rank describes nL nH: data length describes d1…dk: two dimensional code to be printed 0 ≤ v ≤ 17 Range 1 ≤ r ≤ 4 k = nL + 256 * nH...

  • Page 48: ⑧Other Commands

    Xiamen Cashino Technology Co.,Ltd A2L User Manual 00 20 00 0a 01 06 30 31 32 33 34 35 36 37 38 39 00 C0 00 0a 02 00 39 38 37 36 35 34 33 32 31 30 Other commands ⑧...
