NCP2811AMTTXGEVB
NCP2811AMTTX Evaluation
Board User's Manual

Description

NCP2811 is a dual audio power amplifier designed for portable
communication device applications such as mobile phones. This board
showcases the A version of this part in the WQFN12 package. This
part is capable of delivering 27 mW of continuous average power into
a 16 W load from a 2.7 V power supply with a THD+N of 1%.
Based on the power supply delivered to the device, an internal
power management block generates a symmetrical positive and
negative voltage. Thus, the internal amplifiers provide outputs
referenced to Ground. In this True Ground configuration, the two
external heavy coupling capacitors can be removed. It offers
significant space and cost savings compared to a typical stereo
application.
© Semiconductor Components Industries, LLC, 2011
July, 2011 − Rev. 2

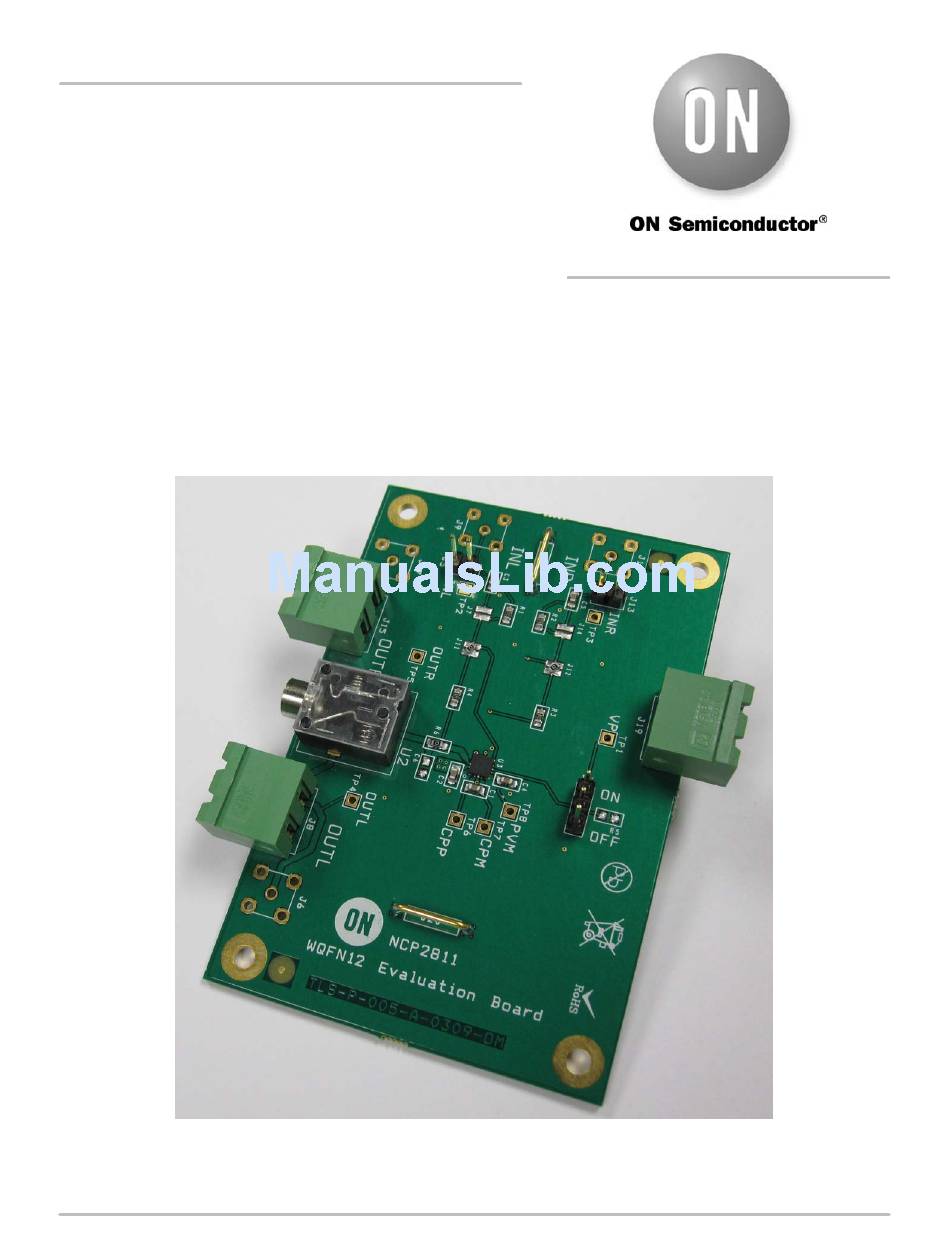

Figure 1. NCP2811AMTTXGEVB Board Picture

1
http://onsemi.com
EVAL BOARD USER'S MANUAL
Publication Order Number:
EVBUM2010/D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NCP2811AMTTXGEVB and is the answer not in the manual?

Questions and answers

Summary of Contents for ON Semiconductor NCP2811AMTTXGEVB

  • Page 1 Ground. In this True Ground configuration, the two external heavy coupling capacitors can be removed. It offers significant space and cost savings compared to a typical stereo application. Figure 1. NCP2811AMTTXGEVB Board Picture Publication Order Number: © Semiconductor Components Industries, LLC, 2011 July, 2011 − Rev. 2...
  • Page 2 NCP2811AMTTXGEVB Figure 2. NCP2811AMTTXGEVB Board Schematic http://onsemi.com...
  • Page 3 NCP2811AMTTXGEVB Figure 3. NCP2811AMTTXGEVB Board Layout (Top View) Figure 4. NCP2811AMTTXGEVB Board Layout (Bottom View) http://onsemi.com...
  • Page 4 NCP2811AMTTXGEVB Table 1. BILL OF MATERIALS Item Part Description Ref. Manufacturer Manufacturer Reference Footprint NCP2811 Audio ON Semiconductor NCP2811 Amplifier R1, R2, R3, R4 0603 Panasonic ERJ−3GEY103V SMD Resistor 10KW Ceramic Capacitor C1, C2, C3, C4, C5 0603 Murata GRM185R60J105KA01 1 mF 6.3 V X5R...
  • Page 5 PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: N. American Technical Support: 800−282−9855 Toll Free ON Semiconductor Website: www.onsemi.com Literature Distribution Center for ON Semiconductor USA/Canada Order Literature: http://www.onsemi.com/orderlit P.O. Box 5163, Denver, Colorado 80217 USA Europe, Middle East and Africa Technical Support: Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada...
