ON Semiconductor NCP6925EVK Manual

7 channel pmic with 2 dc-­dc converters, 5 ldos and a triple input 10 bits adc evaluation kit

Advertisement

Quick Links

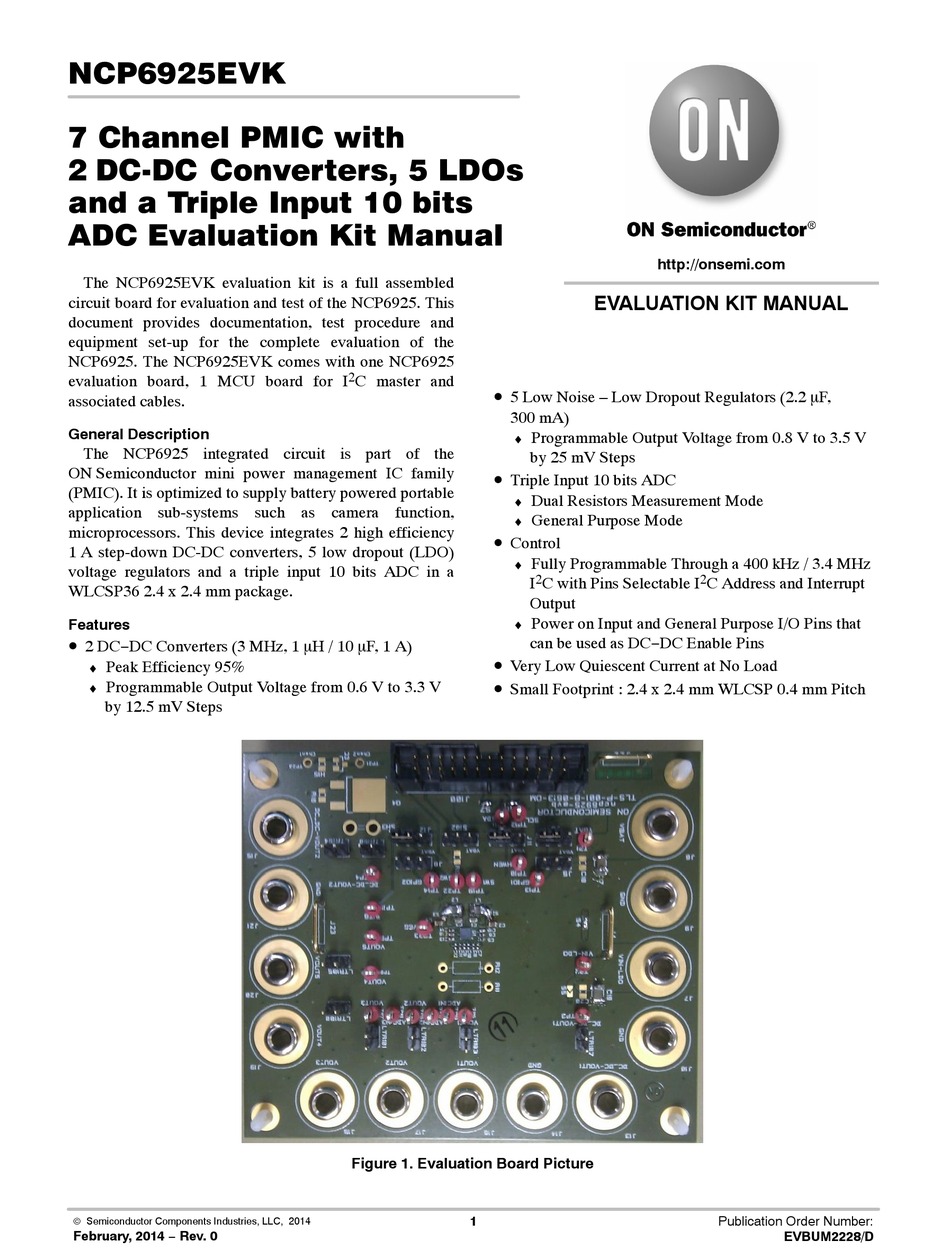

NCP6925EVK
7 Channel PMIC with
2 DC­DC Converters, 5 LDOs
and a Triple Input 10 bits
ADC Evaluation Kit Manual
The NCP6925EVK evaluation kit is a full assembled
circuit board for evaluation and test of the NCP6925. This
document provides documentation, test procedure and
equipment set-up for the complete evaluation of the
NCP6925. The NCP6925EVK comes with one NCP6925
evaluation board, 1 MCU board for I
associated cables.
General Description
The NCP6925 integrated circuit is part of the
ON Semiconductor mini power management IC family
(PMIC). It is optimized to supply battery powered portable
application sub-systems such as camera function,
microprocessors. This device integrates 2 high efficiency
1 A step-down DC-DC converters, 5 low dropout (LDO)
voltage regulators and a triple input 10 bits ADC in a
WLCSP36 2.4 x 2.4 mm package.
Features
2 DC−DC Converters (3 MHz, 1 mH / 10 mF, 1 A)
Peak Efficiency 95%
Programmable Output Voltage from 0.6 V to 3.3 V
by 12.5 mV Steps
© Semiconductor Components Industries, LLC, 2014
February, 2014 − Rev. 0
2
C master and
5 Low Noise – Low Dropout Regulators (2.2 mF,
300 mA)
Triple Input 10 bits ADC
Control
Very Low Quiescent Current at No Load
Small Footprint : 2.4 x 2.4 mm WLCSP 0.4 mm Pitch
Figure 1. Evaluation Board Picture
1
http://onsemi.com
EVALUATION KIT MANUAL
Programmable Output Voltage from 0.8 V to 3.5 V
by 25 mV Steps
Dual Resistors Measurement Mode
General Purpose Mode
Fully Programmable Through a 400 kHz / 3.4 MHz
2
2
I
C with Pins Selectable I
C Address and Interrupt
Output
Power on Input and General Purpose I/O Pins that
can be used as DC−DC Enable Pins
Publication Order Number:
EVBUM2228/D

Advertisement

loading
Need help?

Need help?

Do you have a question about the NCP6925EVK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ON Semiconductor NCP6925EVK

  • Page 1 2 DC­DC Converters, 5 LDOs and a Triple Input 10 bits ADC Evaluation Kit Manual http://onsemi.com The NCP6925EVK evaluation kit is a full assembled EVALUATION KIT MANUAL circuit board for evaluation and test of the NCP6925. This document provides documentation, test procedure and equipment set-up for the complete evaluation of the NCP6925.
  • Page 2 NCP6925EVK Table 1. BOARD COMPONENTS DESCRIPTION Reference Value PCB Footprint Part Number − NCP6925 PMIC − ON Semiconductor NCP6925 0603 Panasonic ERJ−3GEY0R00V SMD Resistor 10 KW C5, C6, C7, C8, C9, 0402 C1005X5R0J225K050BC Ceramic Capacitor 2.2 mF C10, C11, C12, 6.3 V X5R...
  • Page 3 NCP6925EVK Table 2. CONNECTOR DESCRIPTION Chip Control C data, connect to SDA pin or the 26 pins ribbon cable C data, connect to SCL pin or the 26 pins ribbon cable HWEN Master enable pin connected to the 26 pins ribbon cable thru J3...
  • Page 4 NCP6925EVK SCHEMATIC TP10 TP11 TP12 TP13 TP14 TP15 TP16 TP17 TP18 TP19 TP22 TP23 DCDC_VOUT1 DCDC_VOUT2 VOUT1 VBAT VOUT2 100uF C1 4.7uF VBAT VOUT3 PVIN1 VBAT 2.2uH AVIN DCDC_VOUT1 AGND AGND 10uF AGND VOUT4 DGND PGND1 C3 4.7uF VBAT PVIN2 2.2uH...
  • Page 5: Software Installation

    NCP6925EVK SOFTWARE INSTALLATION Important notice: In order to properly install drivers Double click on NCP6925_setup.exe file. Follow the and software, please launch NCP6925_setup.exe file instructions set−up. It is recommended to copy the NCP6925_setup.exe to a before connects the MCU board.
  • Page 6: Pcb Layout

    NCP6925EVK PCB LAYOUT Figure 5. Top Layer http://onsemi.com...
  • Page 7 NCP6925EVK Figure 6. Bottom Layer http://onsemi.com...
  • Page 8 onsemi, , and other names, marks, and brands are registered and/or common law trademarks of Semiconductor Components Industries, LLC dba “onsemi” or its affiliates and/or subsidiaries in the United States and/or other countries. onsemi owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of onsemi’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf.
