Chapter 8 Video Scope
8.1 Entering Video Scope Function
To operate the video scope, from the home screen, highlight the Scope icon and press the select button. If
a probe is not connected already, connect the VIS300 video probe to the video probe port on the top of the
OTDR.

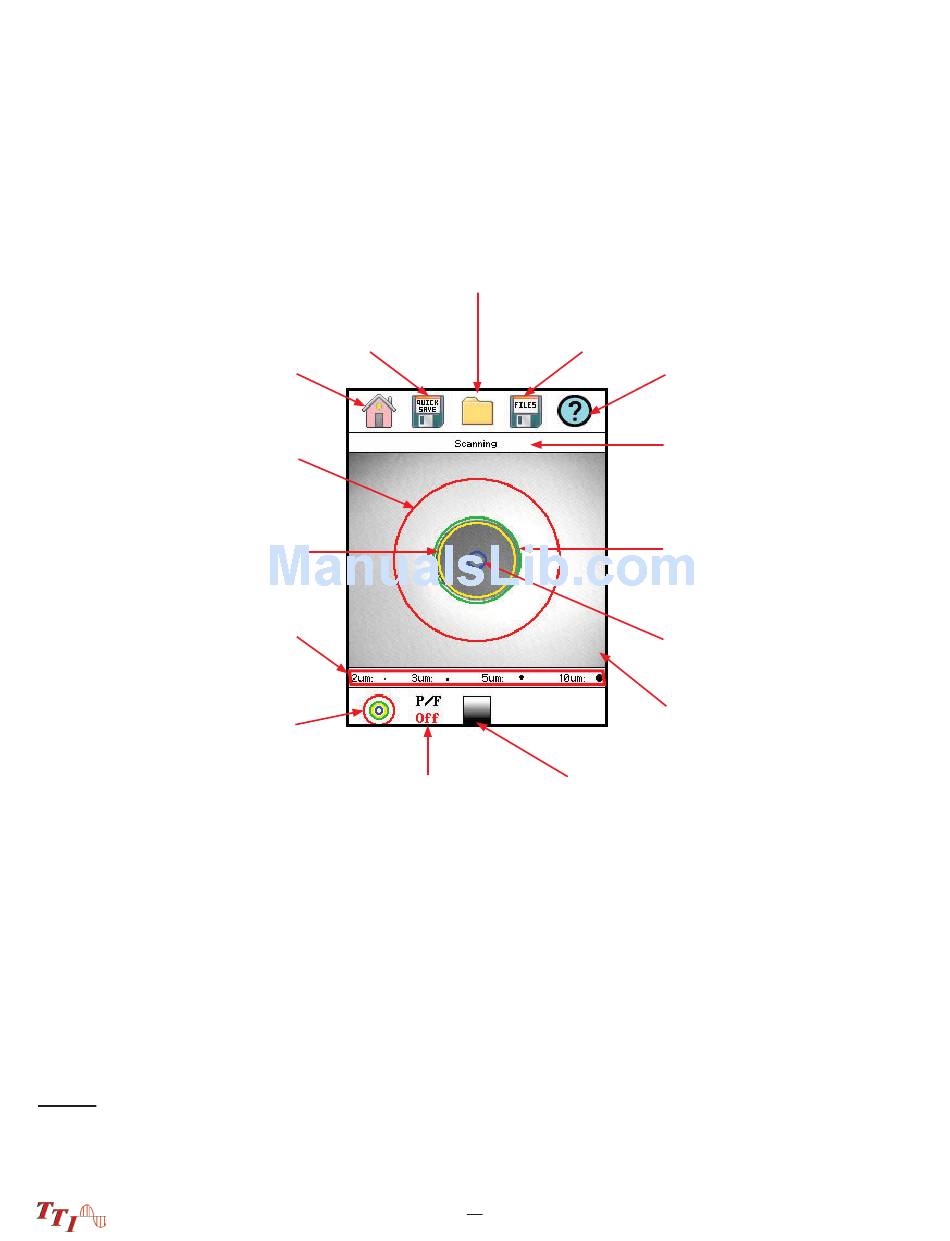

8.2 Video Scope Display
Home Icon
250um Ring
120um Ring
Contaminant Scale
Pass/Fail Grading
Ring Overlay Icon
8.3 Video Scope File/help Icon Menu
The Icons at the top of the display are Home, fi le save, project management, fi le management and Help.
Home
Press the menu button, use the left and right buttons to highlight the home icon and press select to return to
the home Screen.
Project Folder
Quick Save
(Yellow)
Pass/Fail
Label Icon
File Manager
Brightness
Adjustment Icon
Fig 11.1
14
Help Icon
Live View/Pause View
Indicator
130um Ring
(Green)
25um Ring
Pass/Fail Marker
