Chapter 7 Tunable Laser Source
7.1 Enter TLS Mode
To enter the TLS mode of operation, from the home screen, touch the TLS icon to enter the tunable
laser source feature.

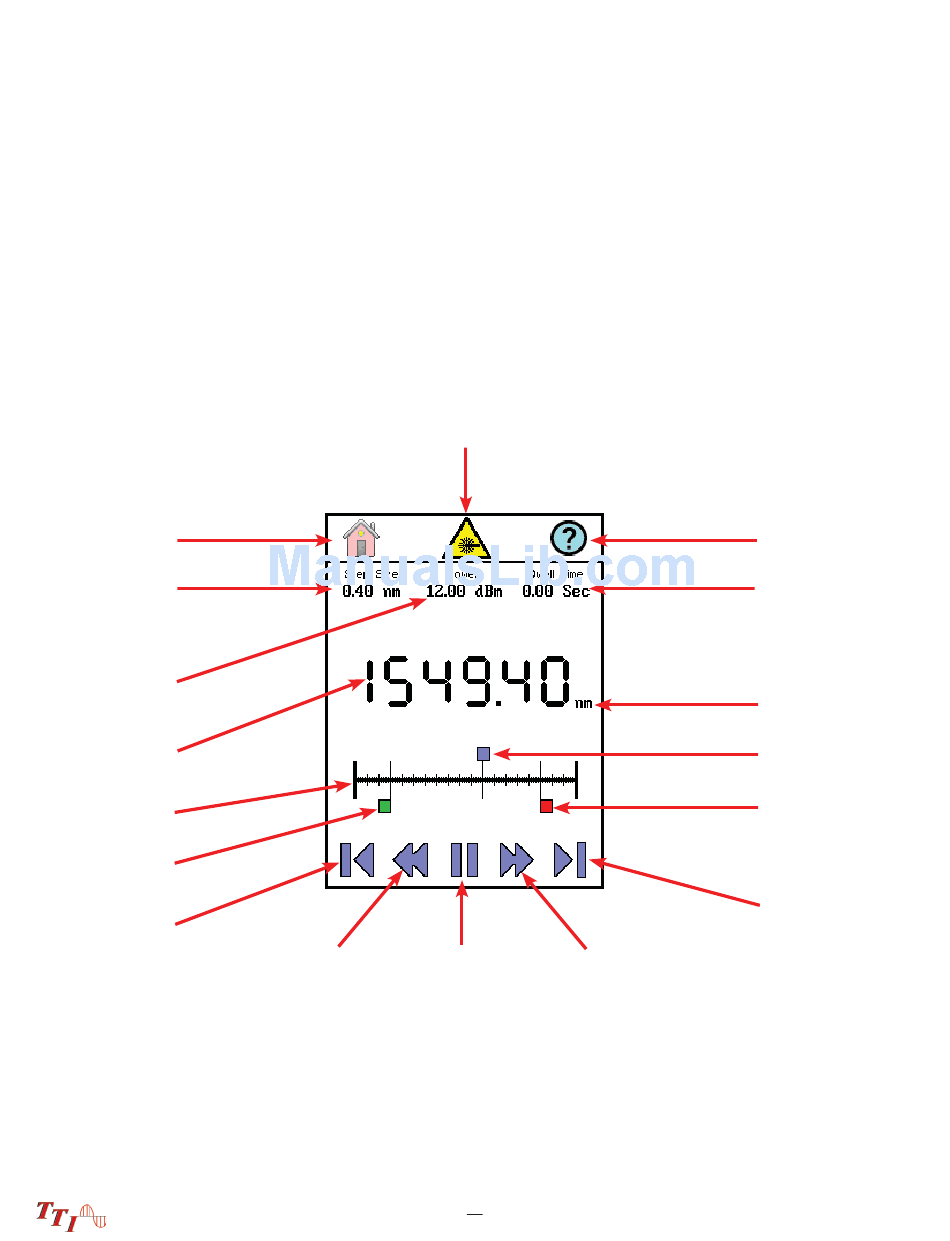

7.2 TLS Screen Description
Home Icon
Step Size
Power
Output
Value
Channel Scale
Low End
Slide
Snap to Lowest
Laser Output
Laser Output
Down
Laser Start/Stop/Activity Indi-
cator
Laser or Sweep
Start/Pause
Fig 7.1
10
Help Icon
Dwell Time
Output Unit
Active Output
Slide
High End
Slide
Snap to Highest
Laser Output
Laser Output
UP
