Chapter 6 Description
6.2 Home Screen Display
This unit is equipped with a 4" color TFT resistive touch display. All keyboard functions are also executable on
the touch screen.

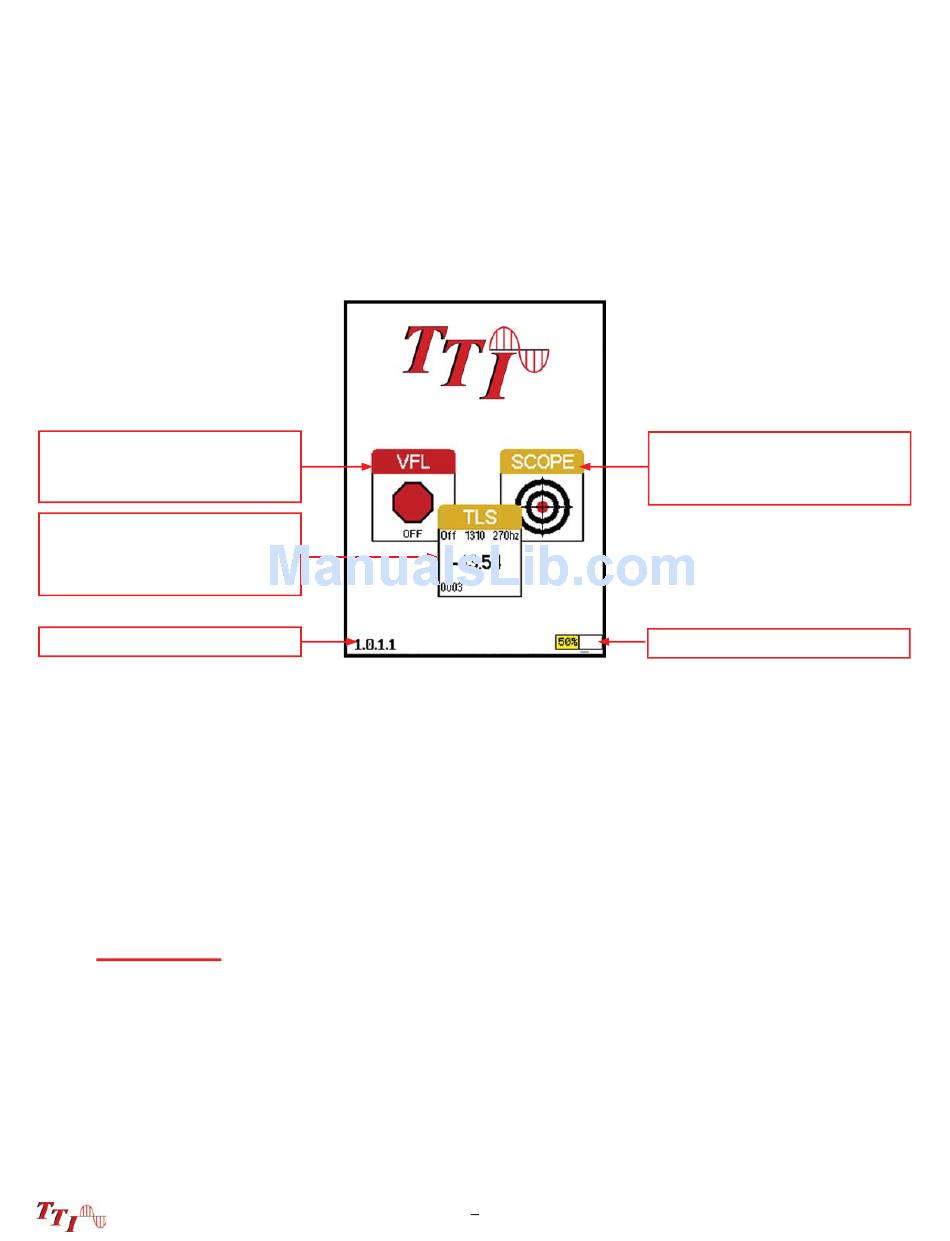

Fault Finder
Select this icon to open the
basic fault fi nder mode
Tunable Laser Source
Select this icon to access the
Tunable Laser Source
Firmware Version Number

6.3 Power Requirements

The FTE-6100 is equipped with a 100-240V-0.4A input universal battery charger with 15V, 1.2A, (center posi-
tive output). The charger is supplied with interchangeable mains plugs for North America, Great Britain, Europe
and Australia. The units internal power supply is an 11.1V 2600 mAh Li-ion battery. Typically, fully discharged
batteries require 2 hours of recharging.
WARNING
To Prevent Fire or Shock Hazard: Do not install other battery types. Do not use the charger without the
batteries installed. Do not expose the battery charger to rain or excessive moisture. Do not use the AC
adapter when there are signs of damage to the enclosure or cord. Do not use any charger other than
the one provided with this instrument. Any other condition will void the warranty.
Fig 6.3
8
Video Scope Icon
Select this icon to open the video
scope function.
Battery Status
