NOTE:
Right hand and left
hand stationary sections are
designated by the
RH and the LH markings on
the rails. Stop latch holes
should be toward
the bottom when slides are in
place. (The right hand rail is
shown here.)

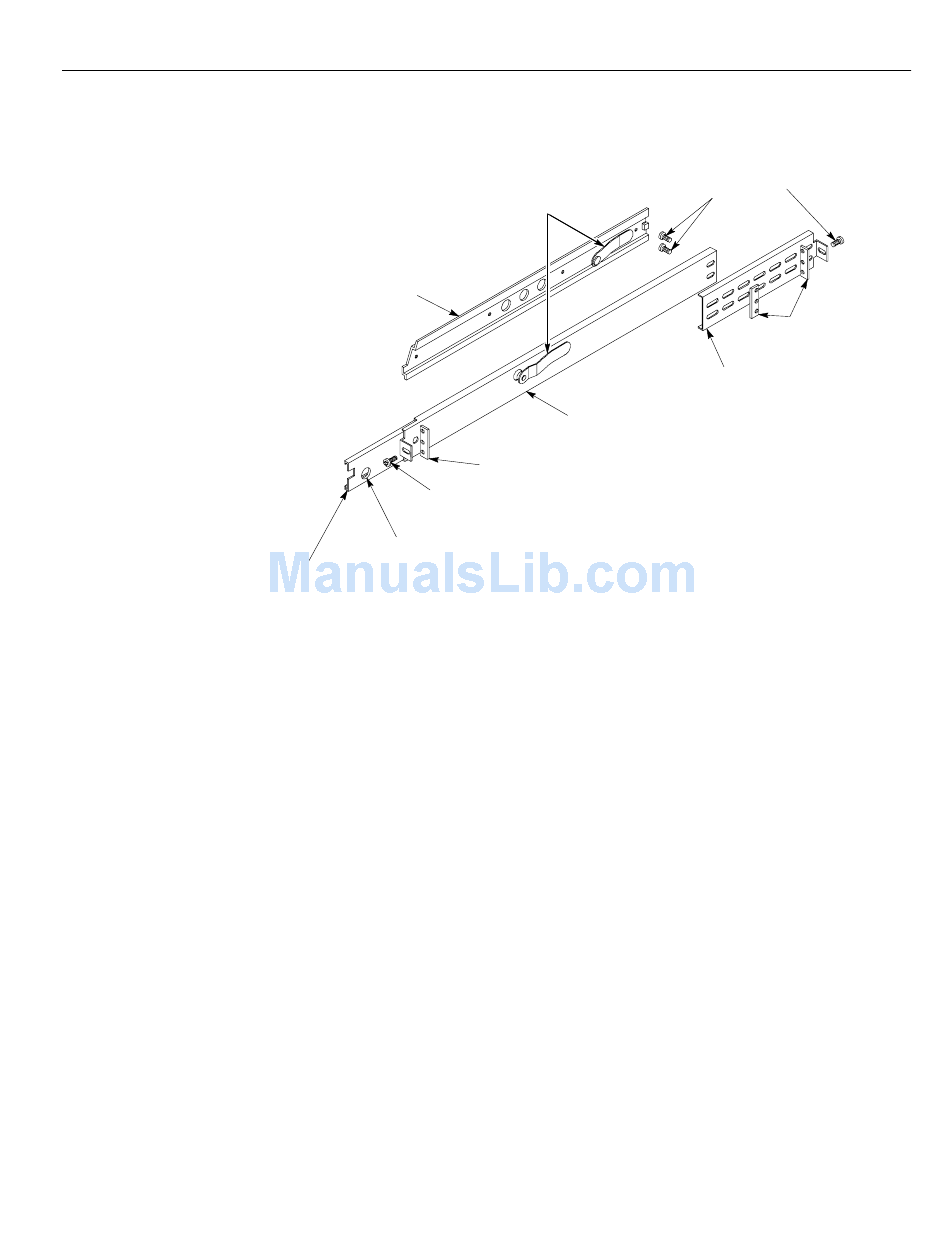

Figure 1- 6: Assembly of rackmounting hardware

ECO422D SD/HD Changeover Unit Instruction Manual
Chassis section
10-32 PNH
screw
Stop latch hole
Intermediate
section
Installing the Instrument. Refer to Figure 1- -7 to install the instrument into the
rack.
1. Pull the slide-out track section to the fully extended position.
2. Insert the instrument chassis sections into the slide-out sections.
3. Press the stop latches and push the instrument toward the rack until the
latches snap into their holes.
4. Again press the stop latches and push the instrument fully into the rack.
5. Tighten the front-panel retaining screw.
Removing the Instrument. Refer to Figure 1- -7 to remove the instrument from the
rack.
1. Loosen retaining screw and pull instrument outward until the stop latches
snap into the holes.
2. Press stop latches and remove instrument.
Automatic
latches
Stationary
section
Flat bar nut
Getting Started
10-32 PNH
screws
Flat bar
nuts
Rear
mounting
1- 5
