DIP Switch
All open Disabled (signal not checked)
1 NTSC black burst
2 PAL black burst
3 NTSC serial digital video (143 Mb/s)
4 Serial digital video (270 Mb/s)
Analog tri- - level sync
5 NTSC serial digital audio
6 User defined
7 User defined
8 Serial digital video (1.485 Gb/s) (Channels 1- - 6)
Attenuation (Channels 7- - 11)
Table 2- -1 lists the factory setting of the switches. (NTSC or PAL black burst is
determined by the power cord option ordered with the instrument.)

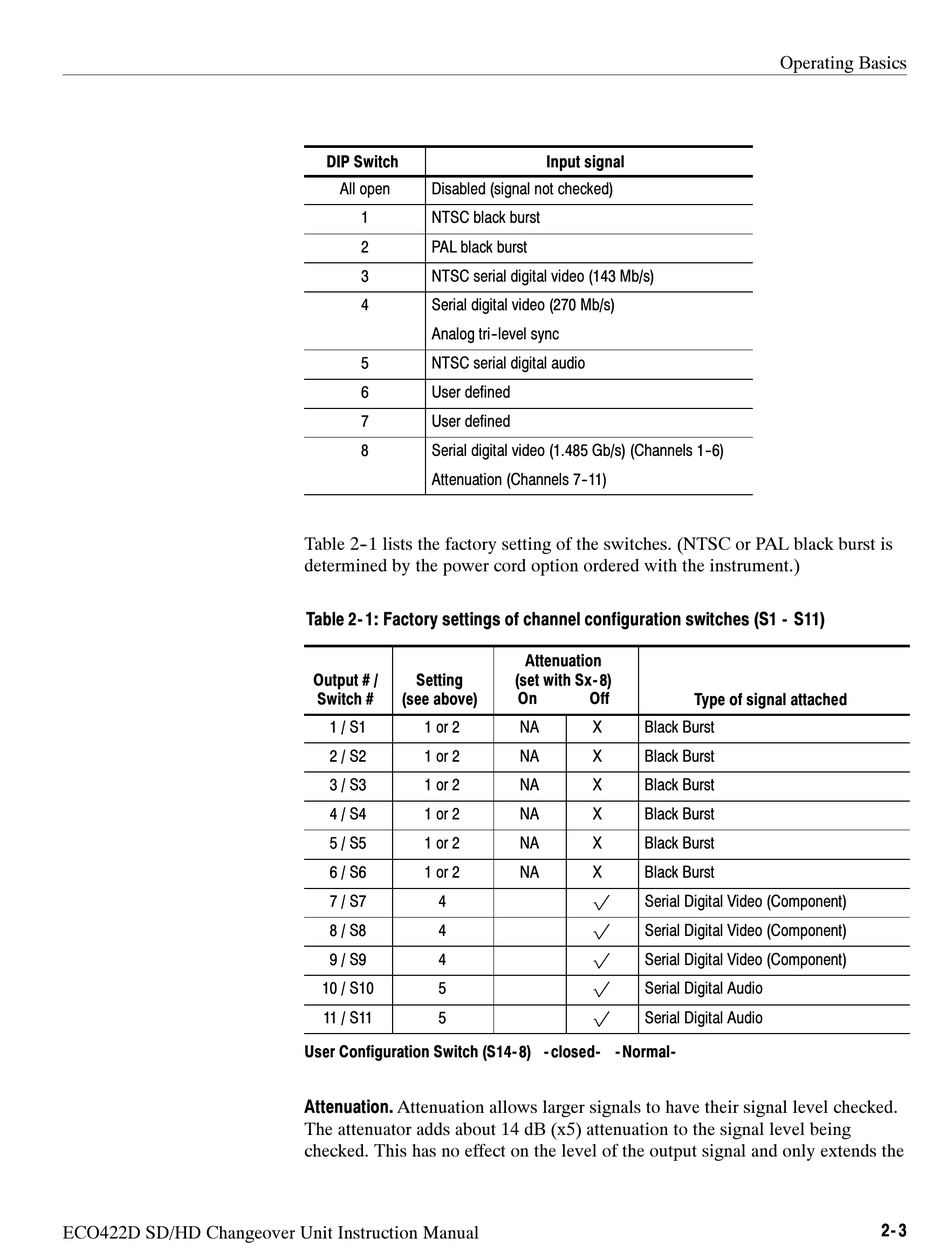

Table 2- 1: Factory settings of channel configuration switches (S1 - S11)
Output # / Setting
Switch # (see above)
1 / S1 1 or 2
2 / S2 1 or 2
3 / S3 1 or 2
4 / S4 1 or 2
5 / S5 1 or 2
6 / S6 1 or 2
7 / S7 4
8 / S8 4
9 / S9 4
10 / S10 5
11 / S11 5
User Configuration Switch (S14- 8) - closed- - Normal-
Attenuation. Attenuation allows larger signals to have their signal level checked.
The attenuator adds about 14 dB (x5) attenuation to the signal level being
checked. This has no effect on the level of the output signal and only extends the
Input signal
Attenuation
(set with Sx- 8)
On Off
NA X Black Burst
NA X Black Burst
NA X Black Burst
NA X Black Burst
NA X Black Burst
NA X Black Burst
p
Serial Digital Video (Component)
p
Serial Digital Video (Component)
p
Serial Digital Video (Component)
p
Serial Digital Audio
p
Serial Digital Audio
Operating Basics
Type of signal attached
2- 3
